APR Wheel Spacers and Lug Bolts
Wheel Spacers (20 Different Sets)
Lug Bolts (7 Different Sets)

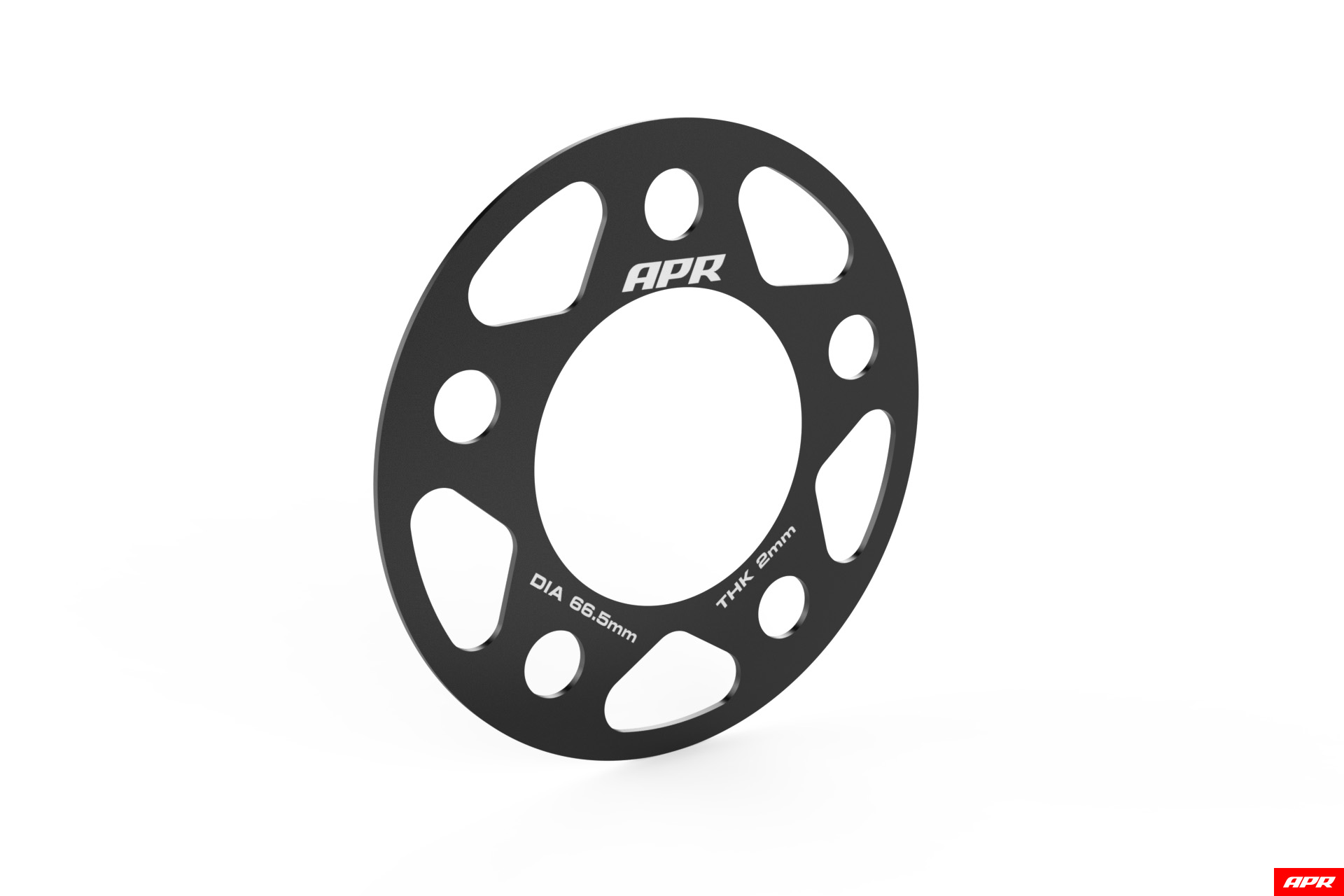

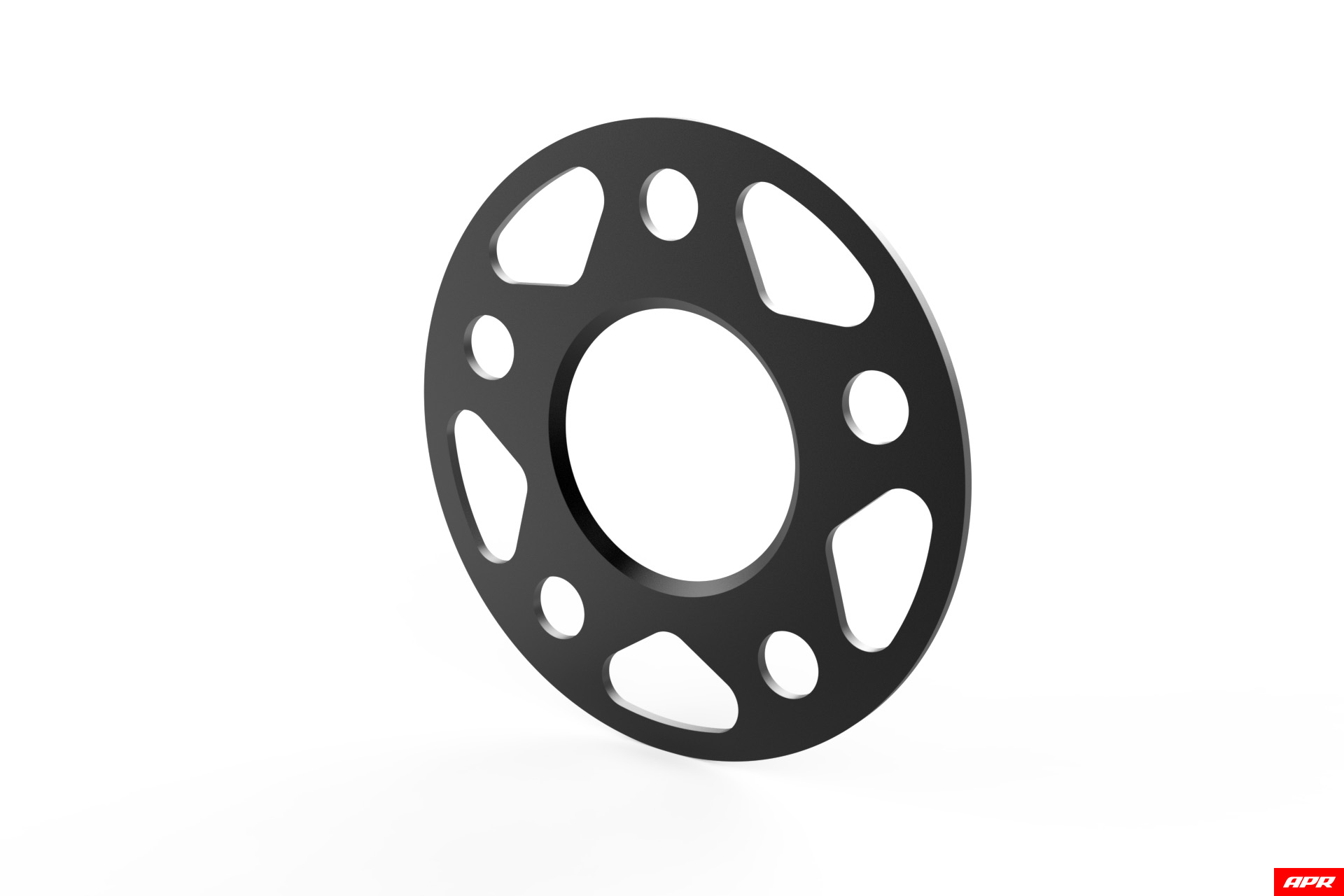

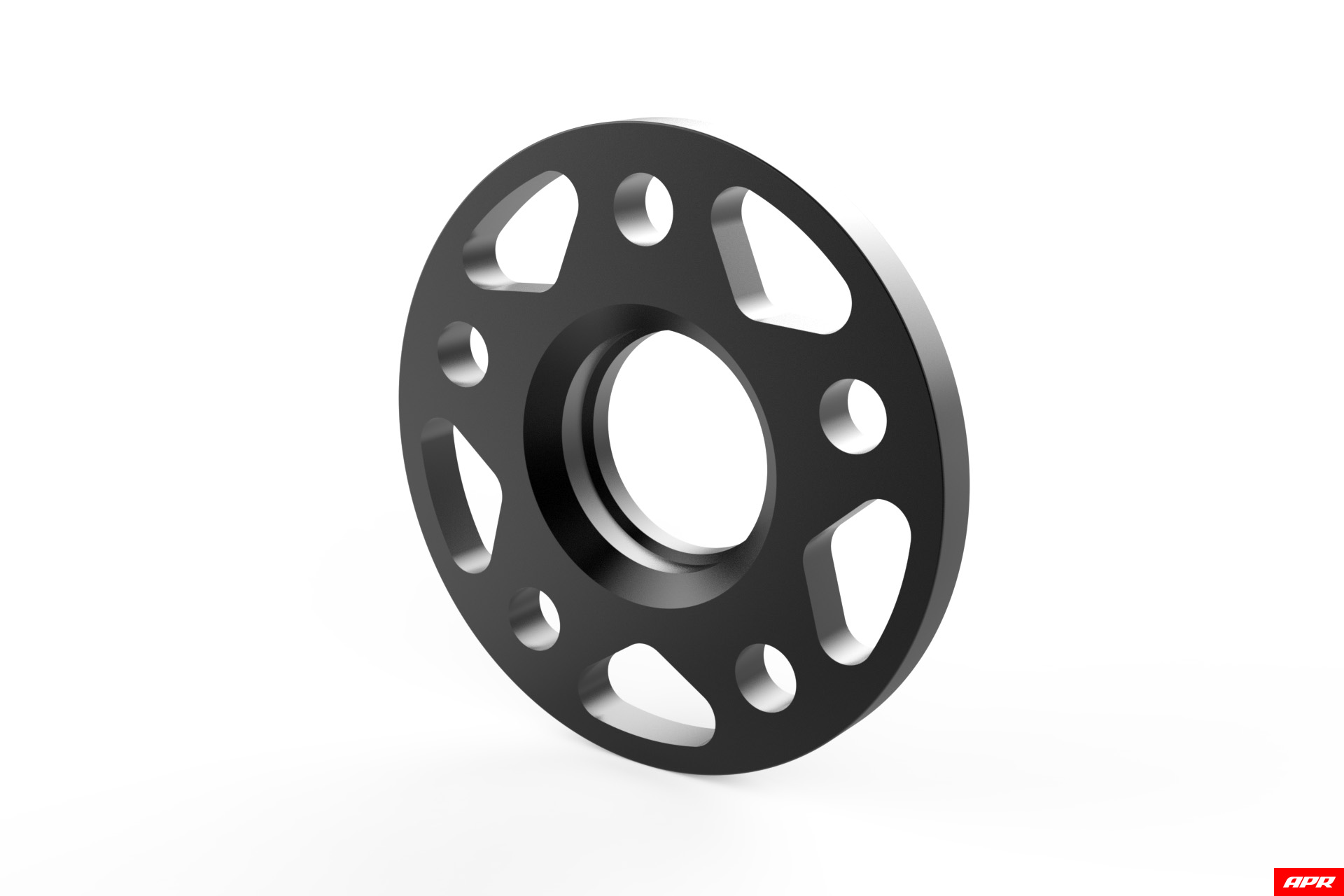

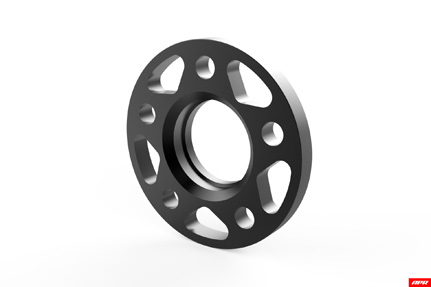

APR’s Wheel Spacers physically move the wheel further away from the hub. In doing so, they give your wheels the desired offset needed to create the stance or look you desire, or clearance necessary to clear brake calipers. When using wheel spacers, longer bolts are required and are provided below.
Quick Facts:
- Spacers
- CNC-machined aluminum
- Weight saving design
- 66.5mm and 57.1mm center bore configurations
- 5x112 bolt pattern
- 2mm – 15mm sizes
- Hub-centric rings on larger spacers
- Anodized black
- Set of 2

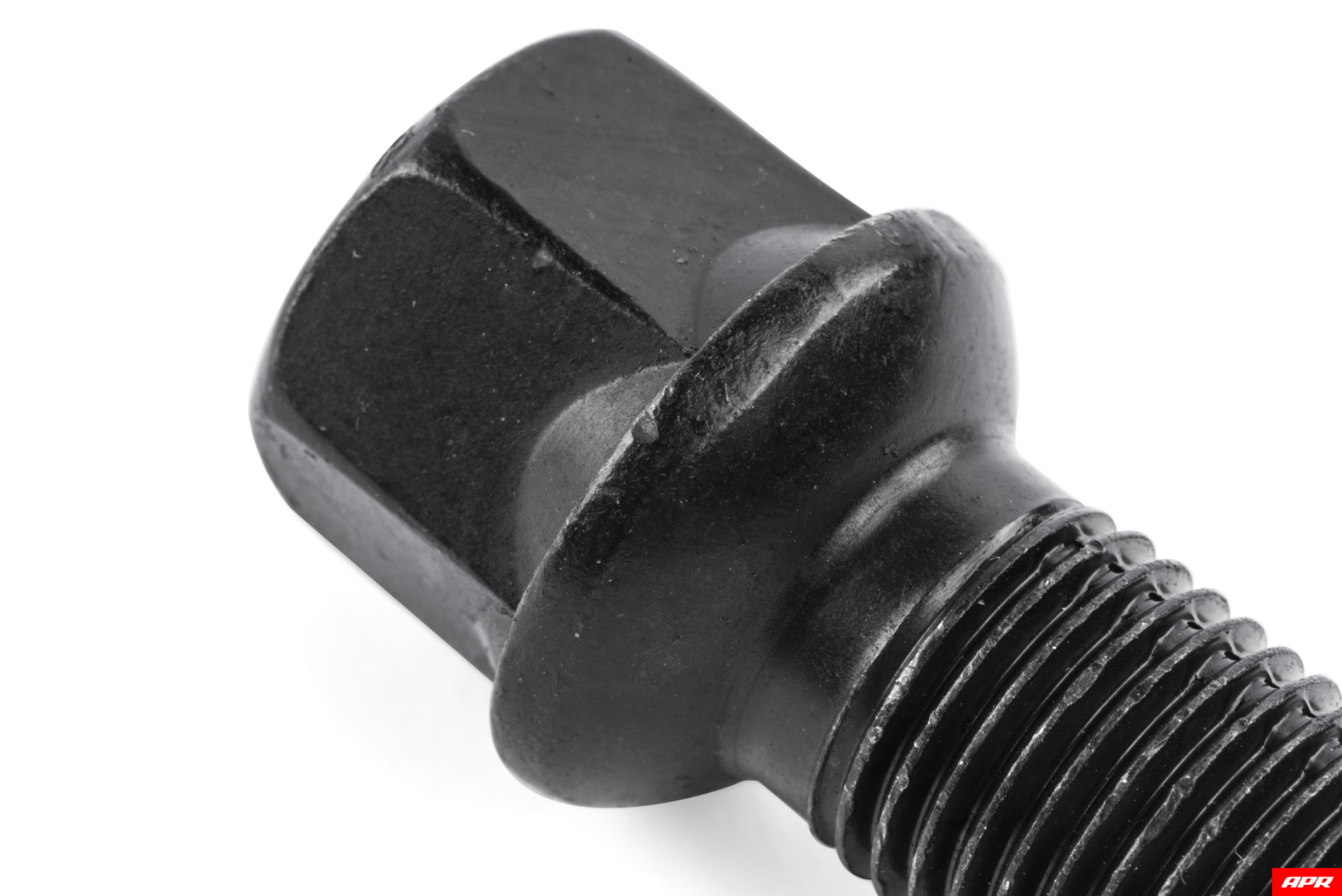

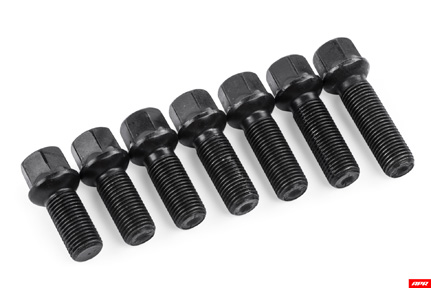

- Lug Bolts
- Steel construction
- OEM-style ball-seat lug bolt
- 27mm – 45mm lengths
- Black zinc coating
- Set of 10

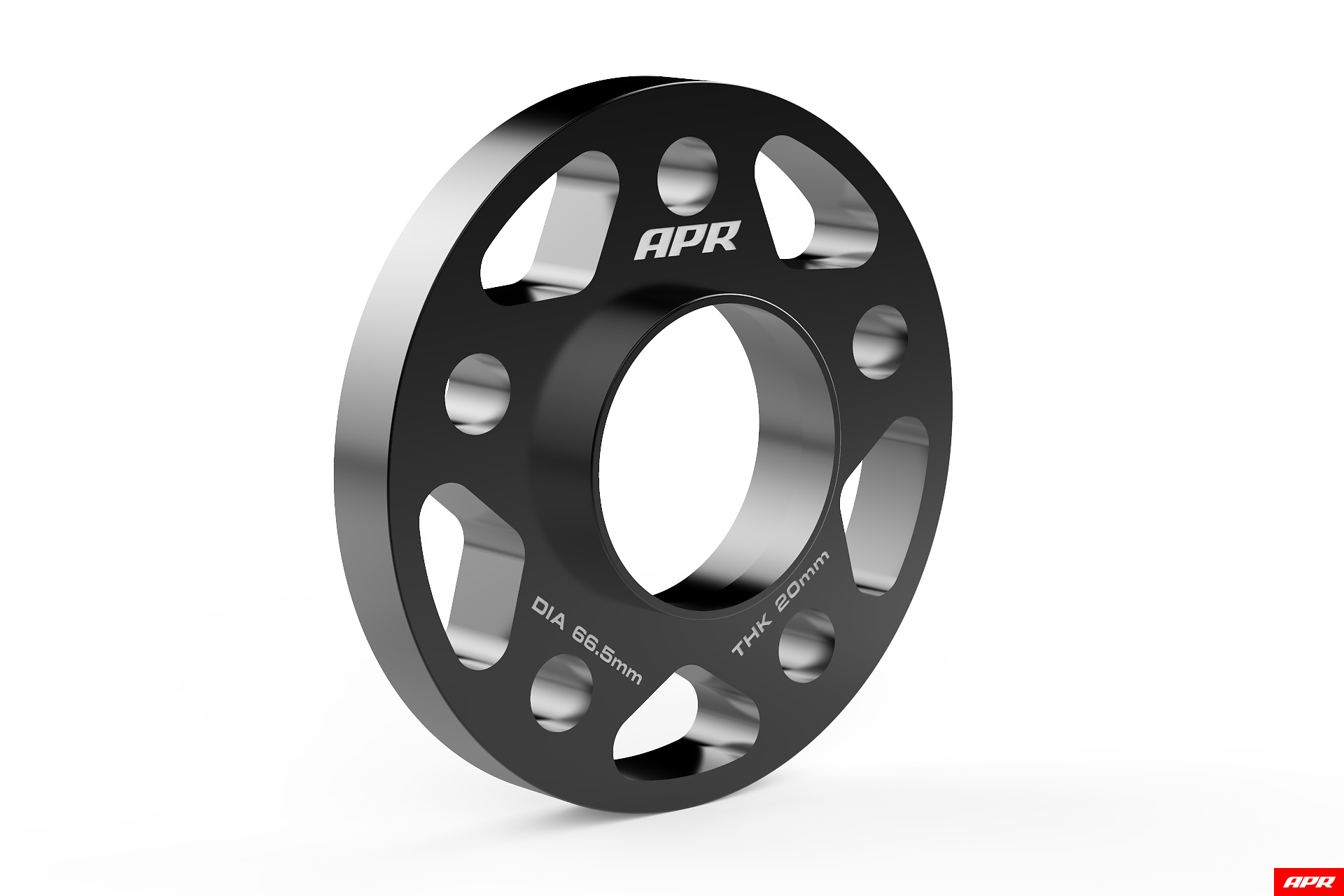

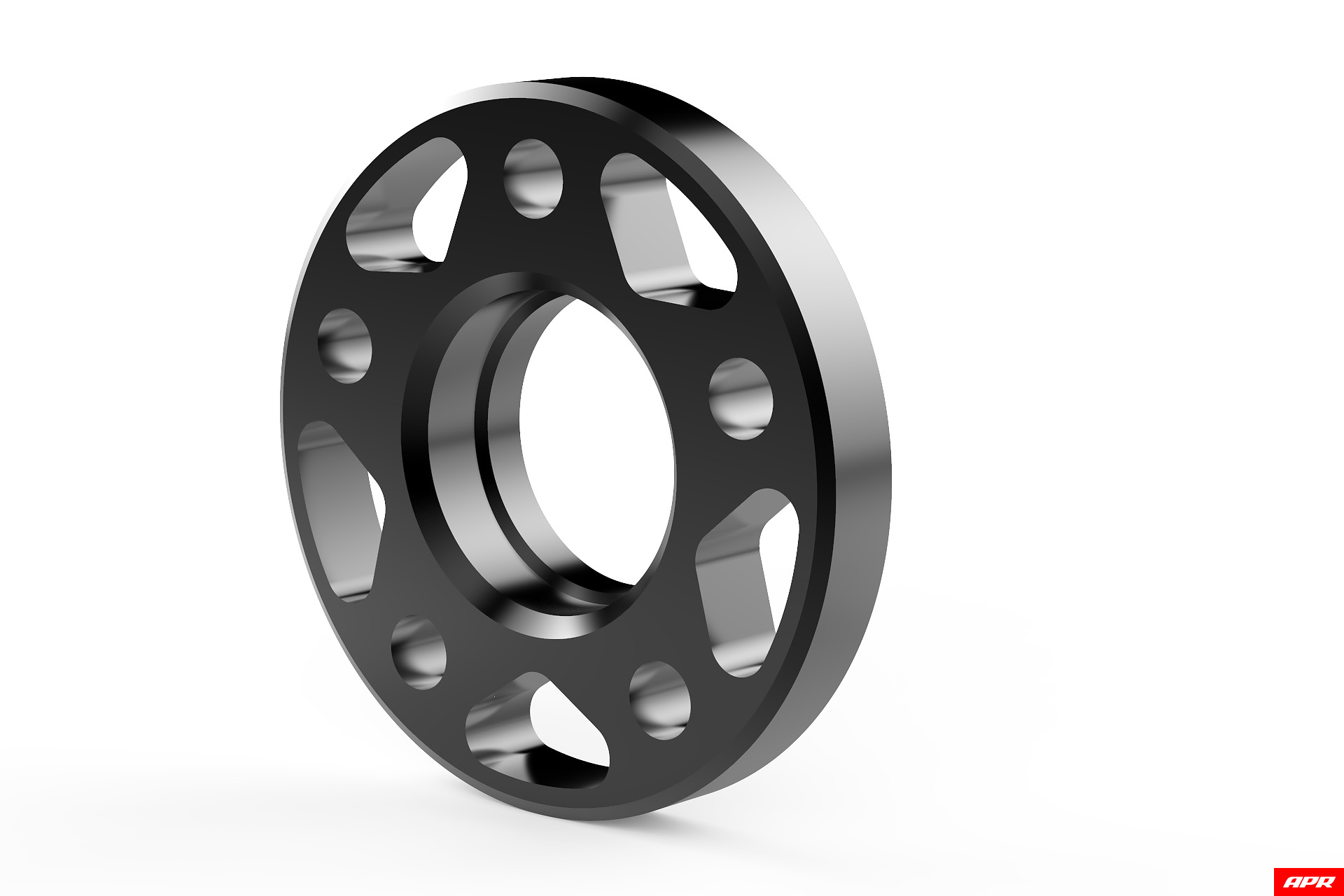

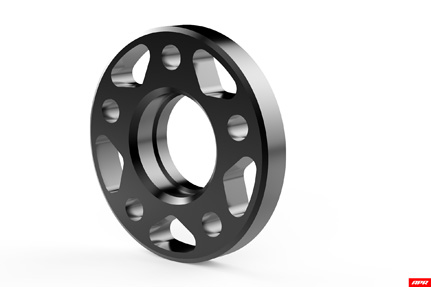

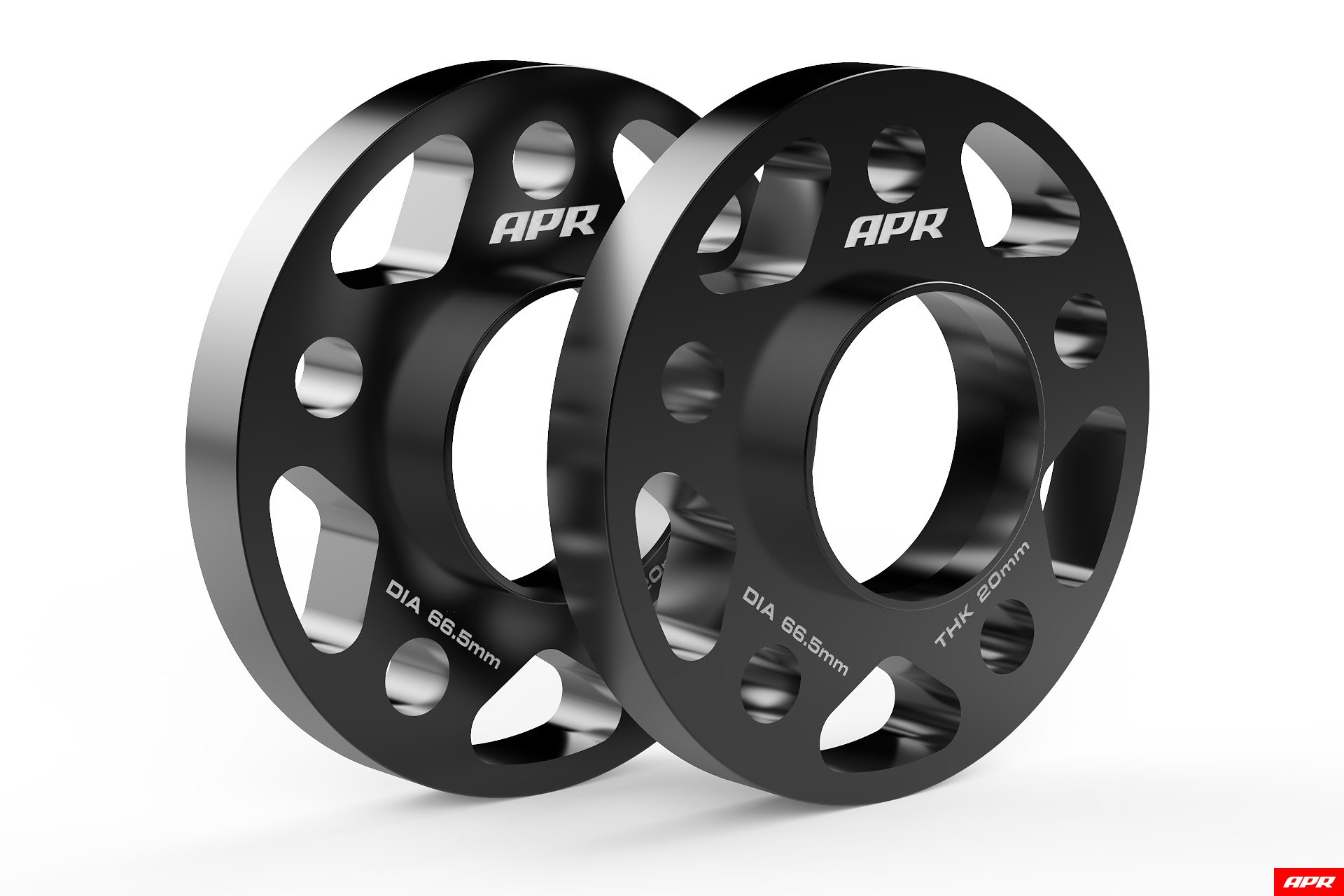

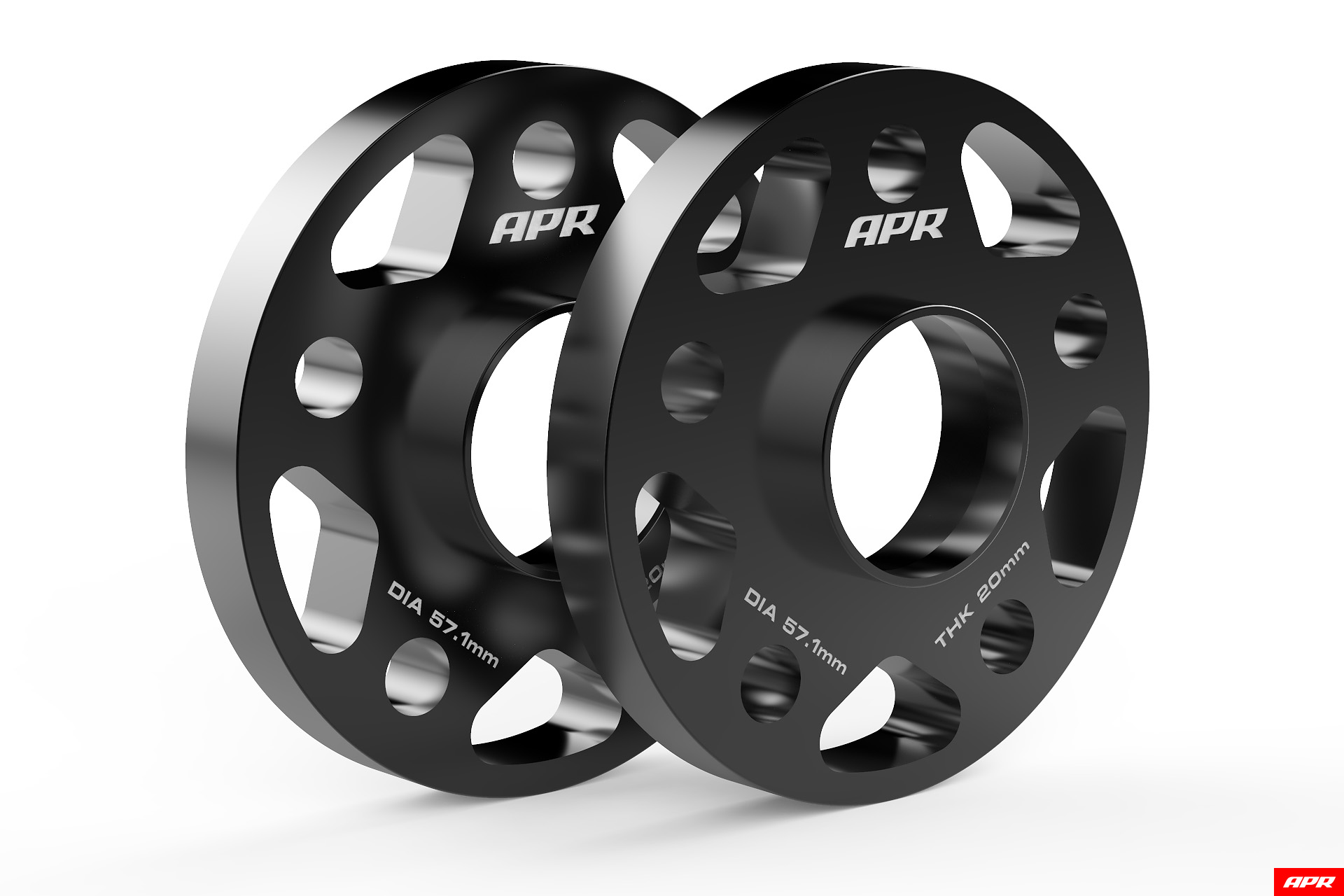

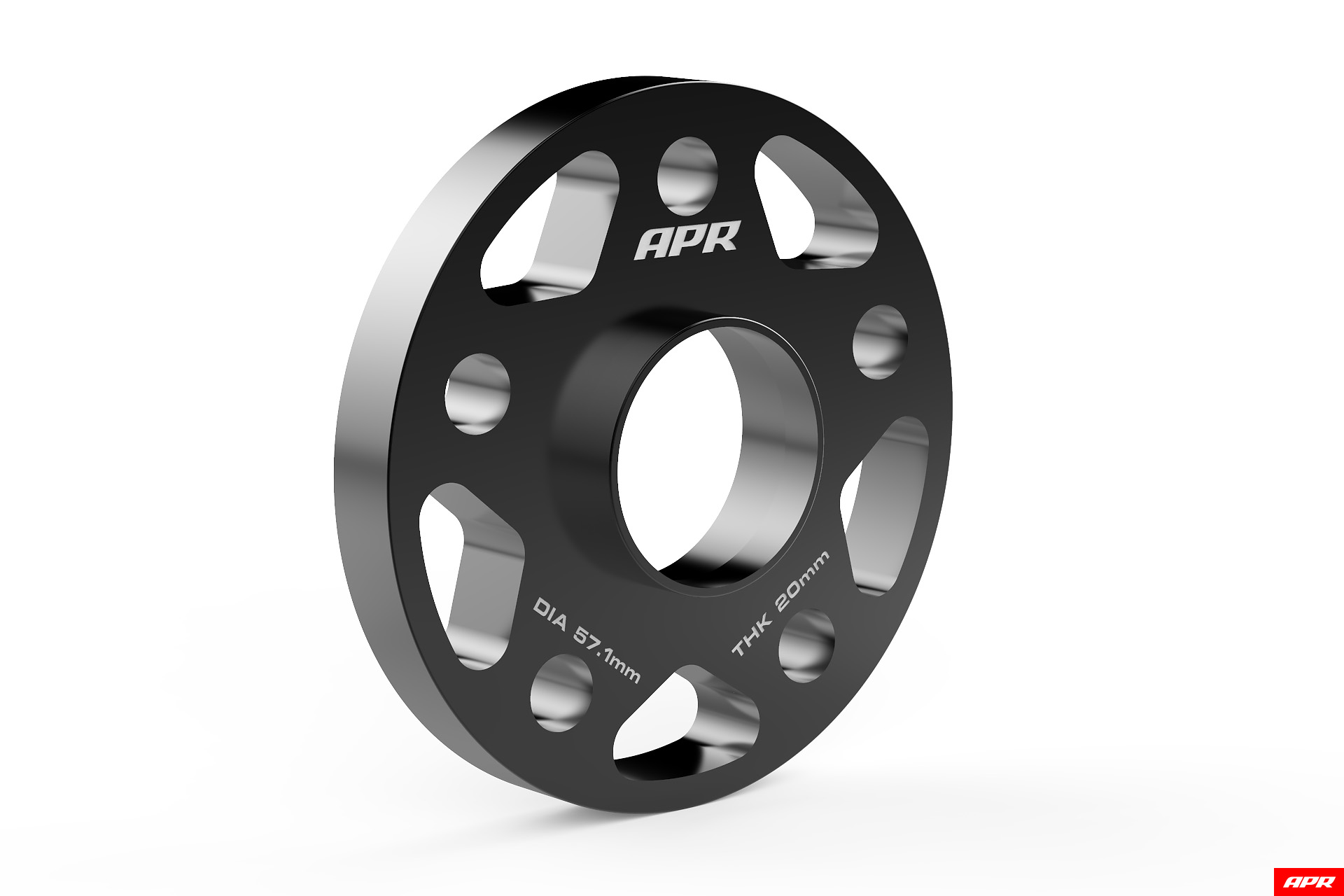

20mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore
This spacer will only fit vehicles with wheel centering features that protrude 17.7mm or less from hub mounting face

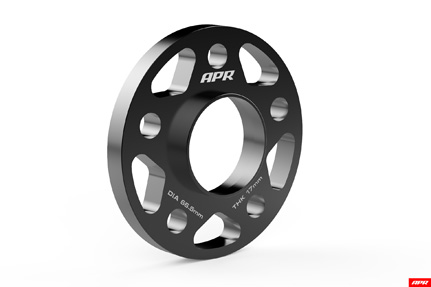

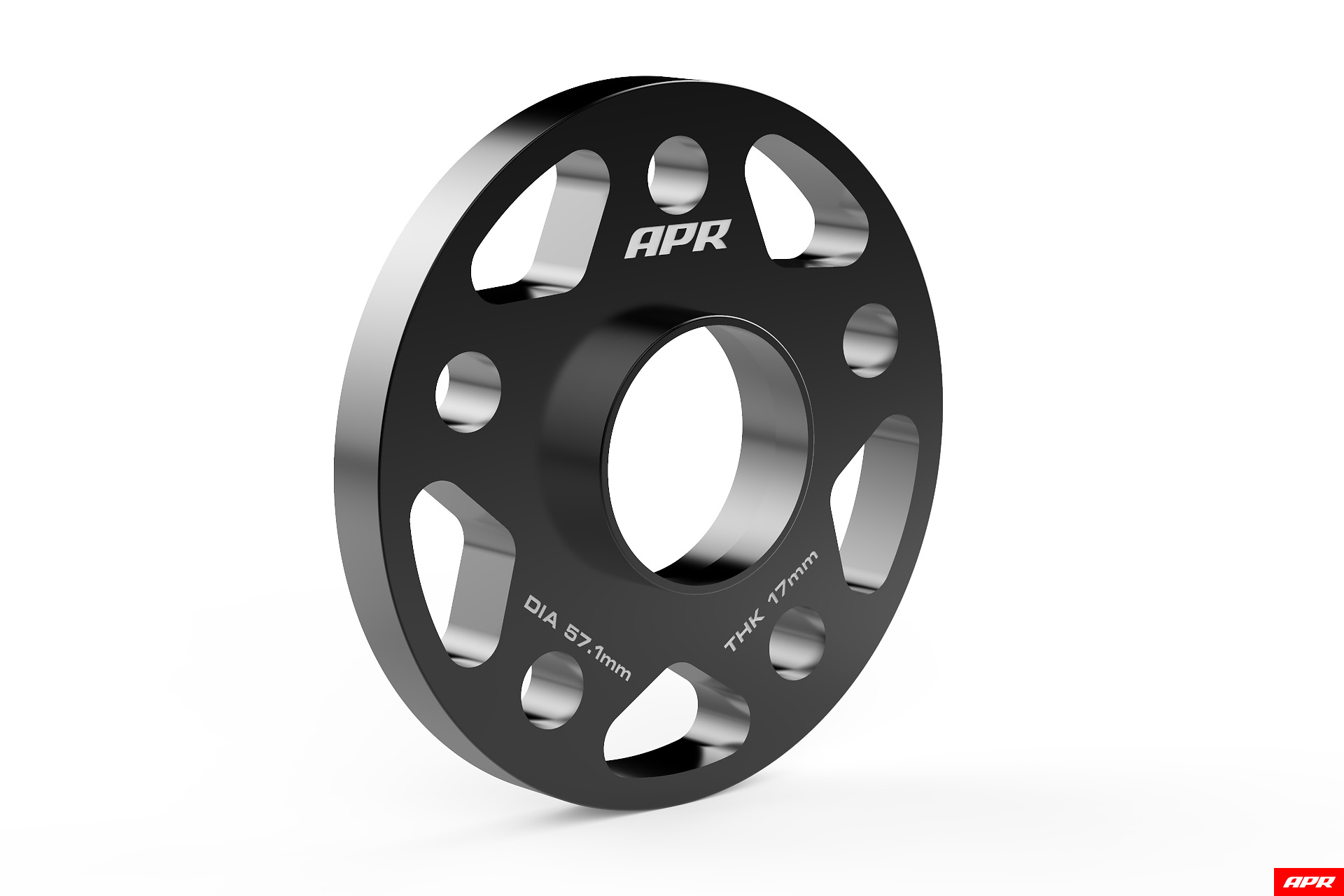

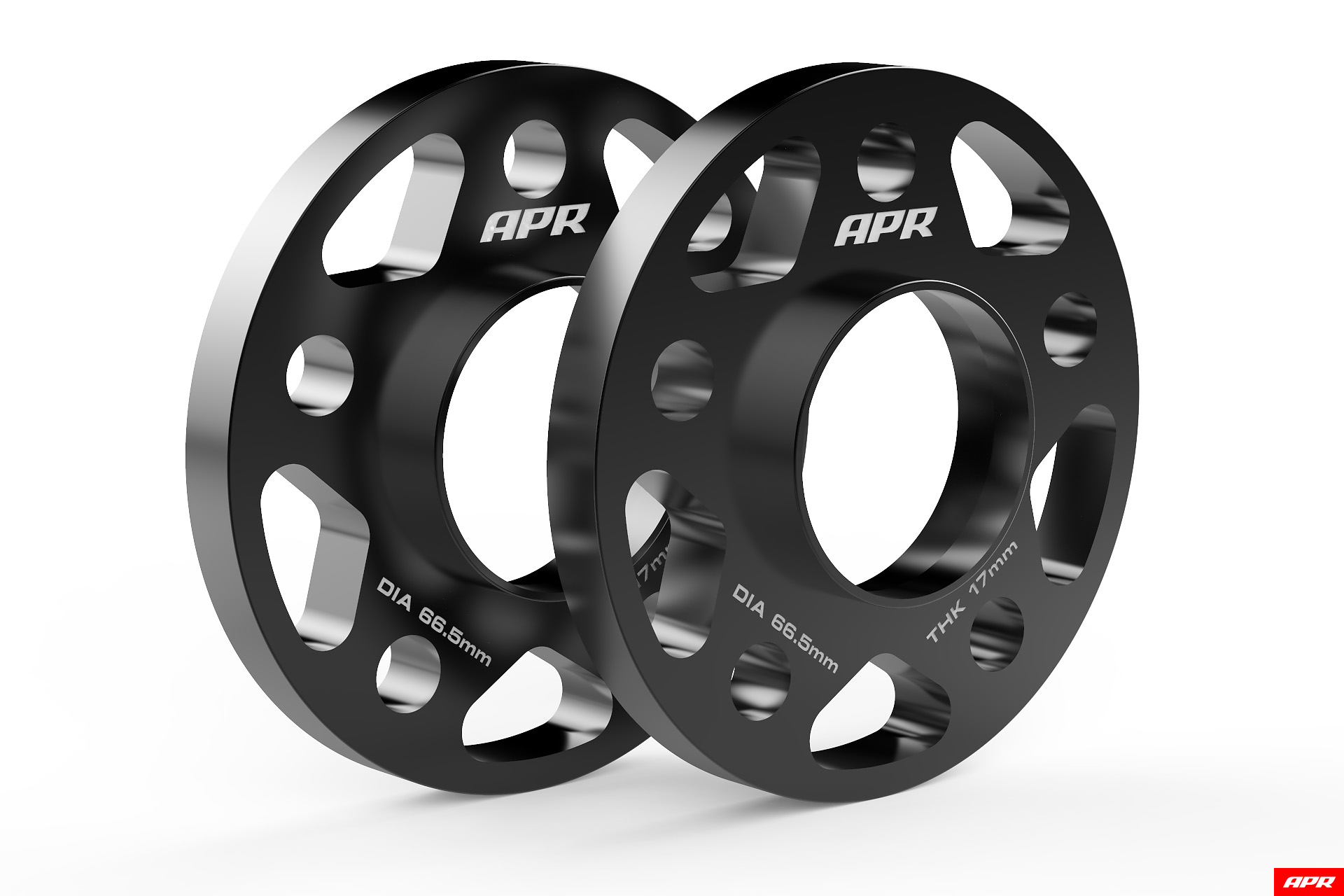

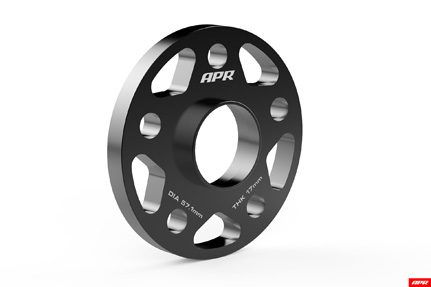

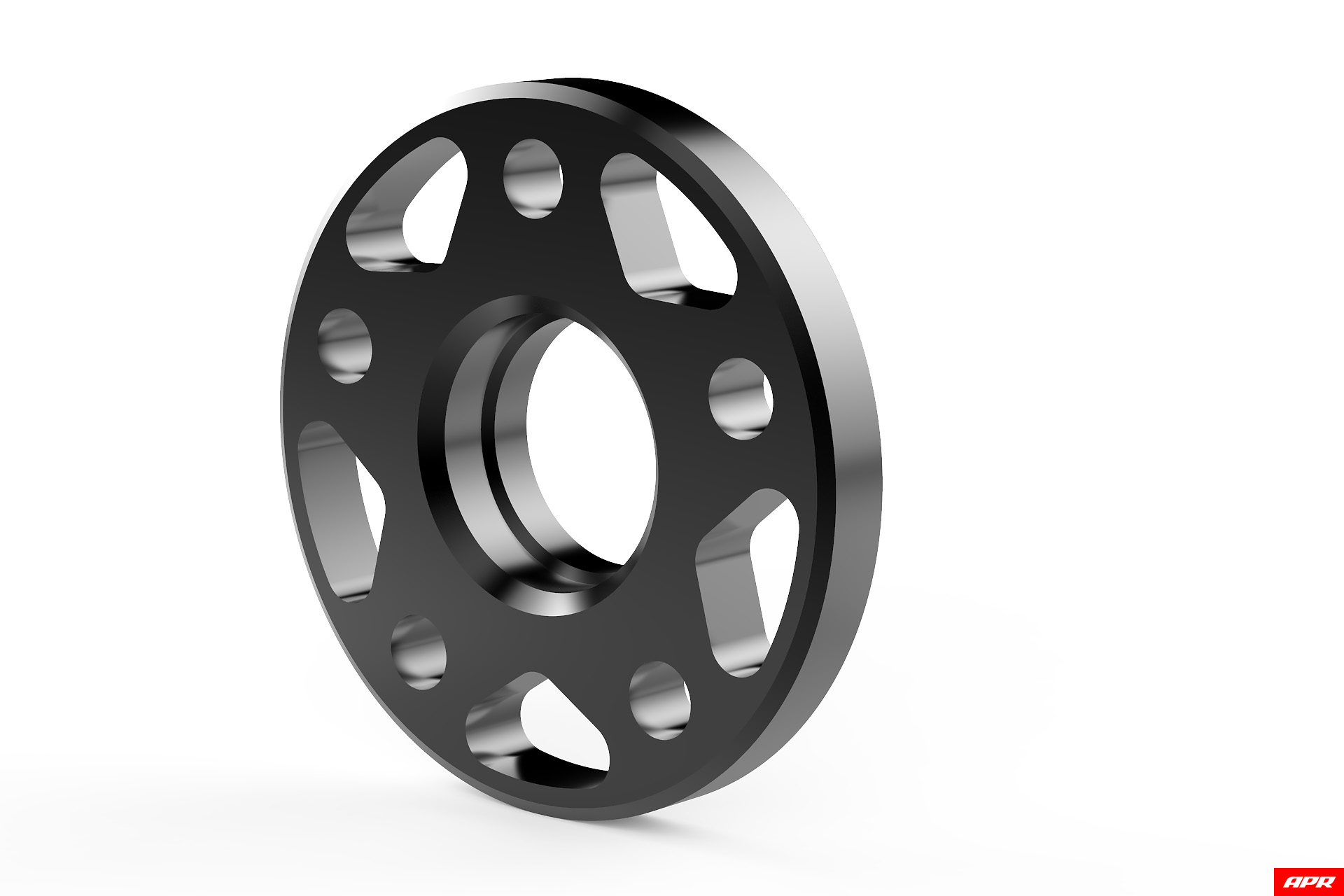

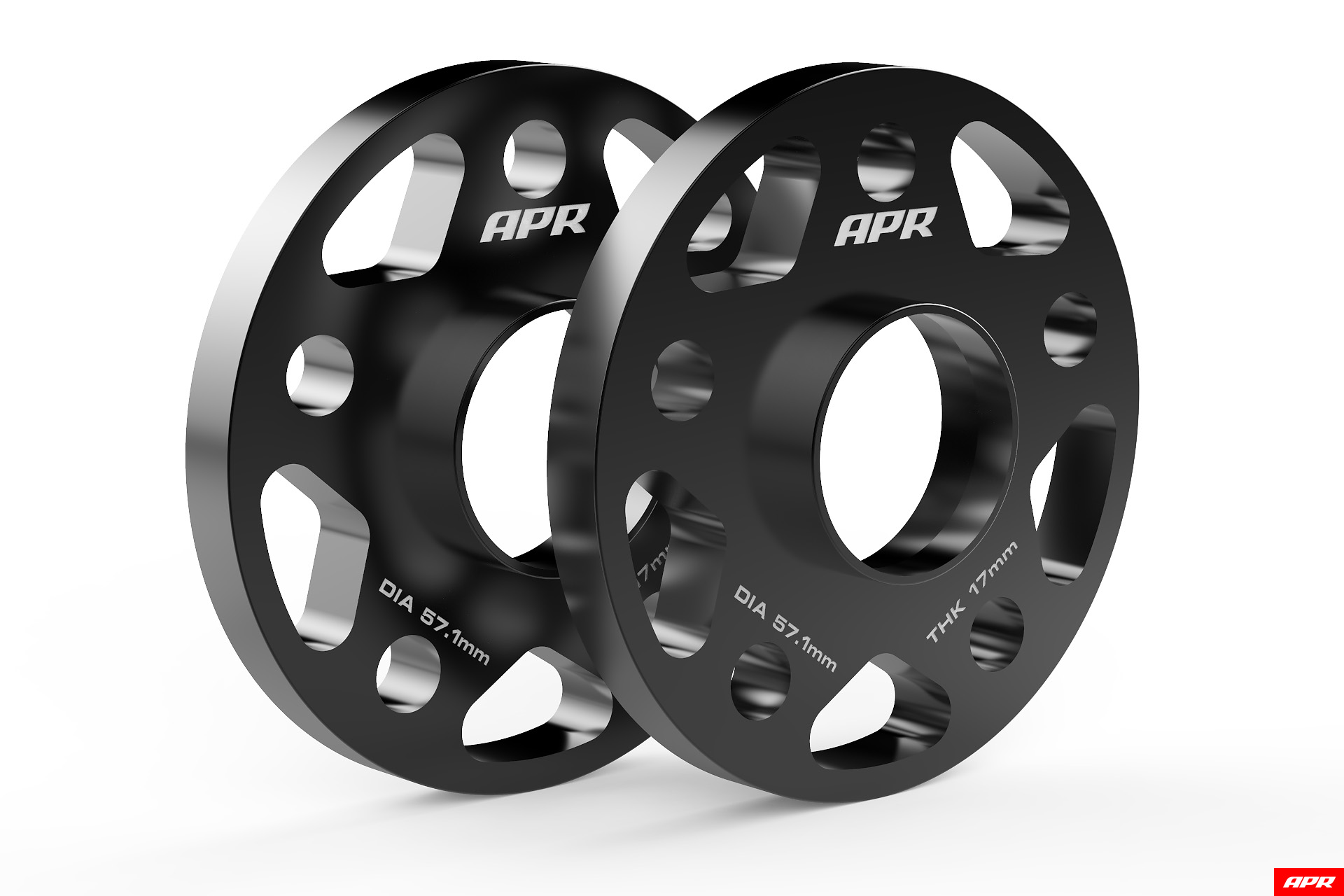

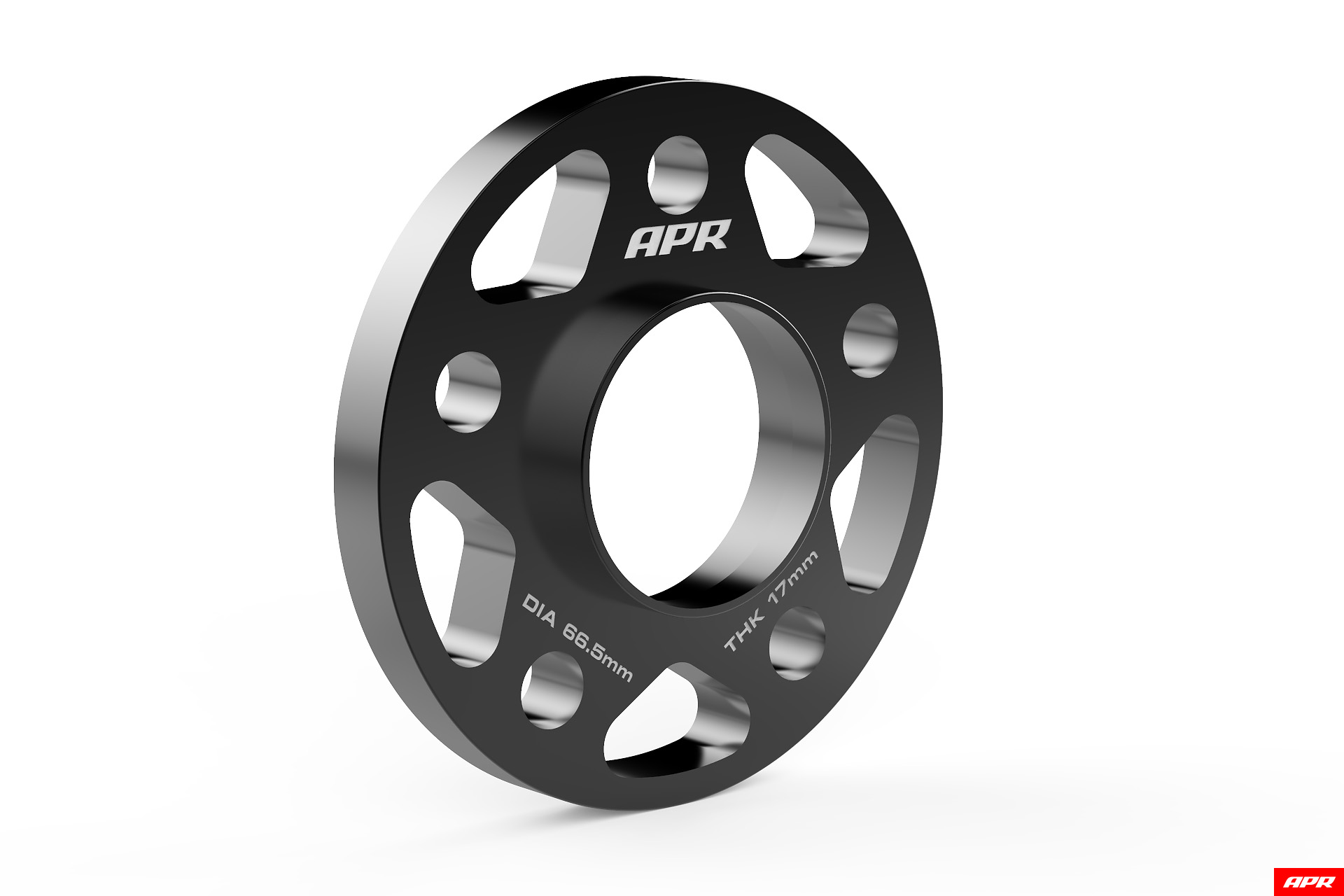

17mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore
This spacer will only fit vehicles with wheel centering features that protrude 14.7mm or less from hub mounting face

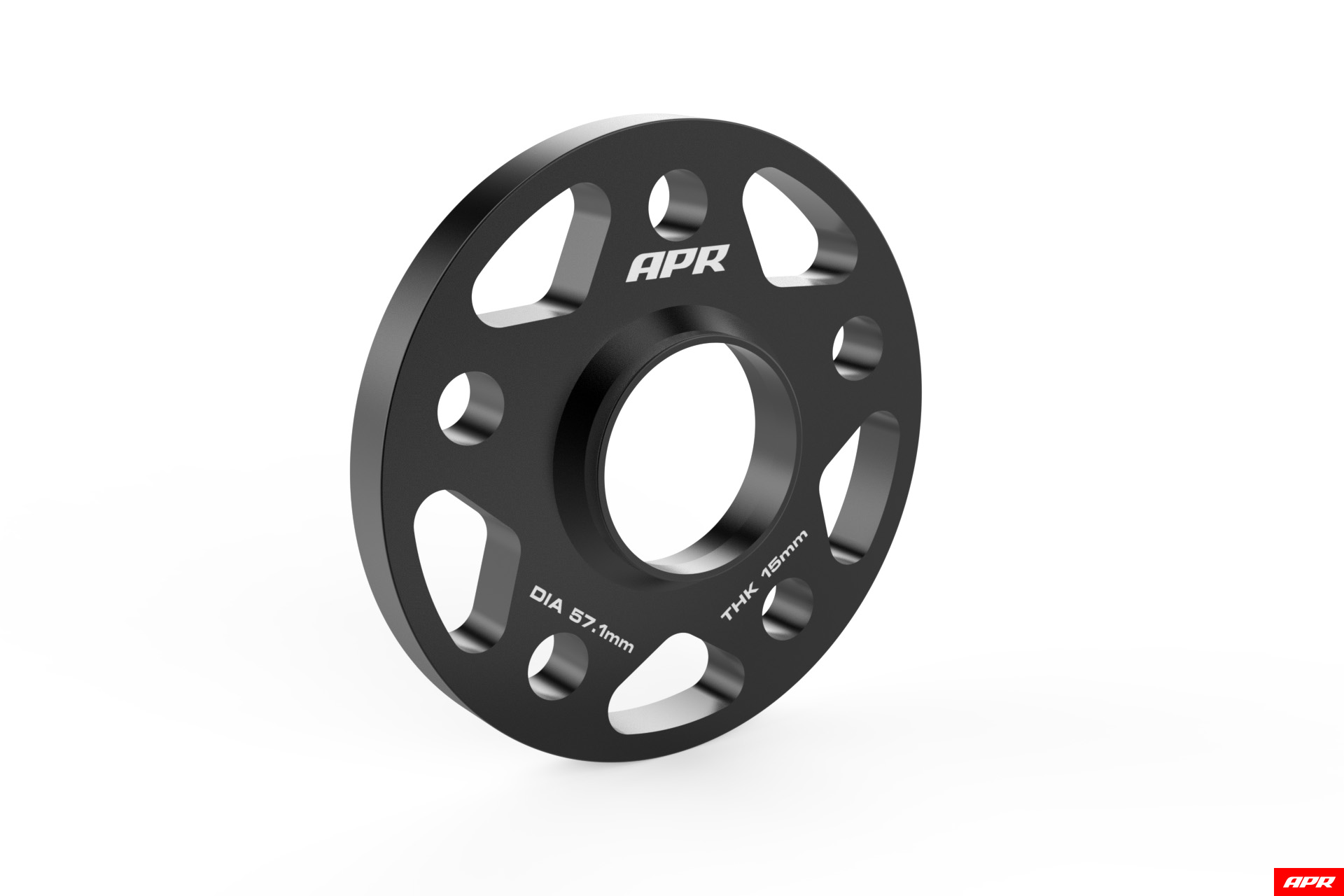

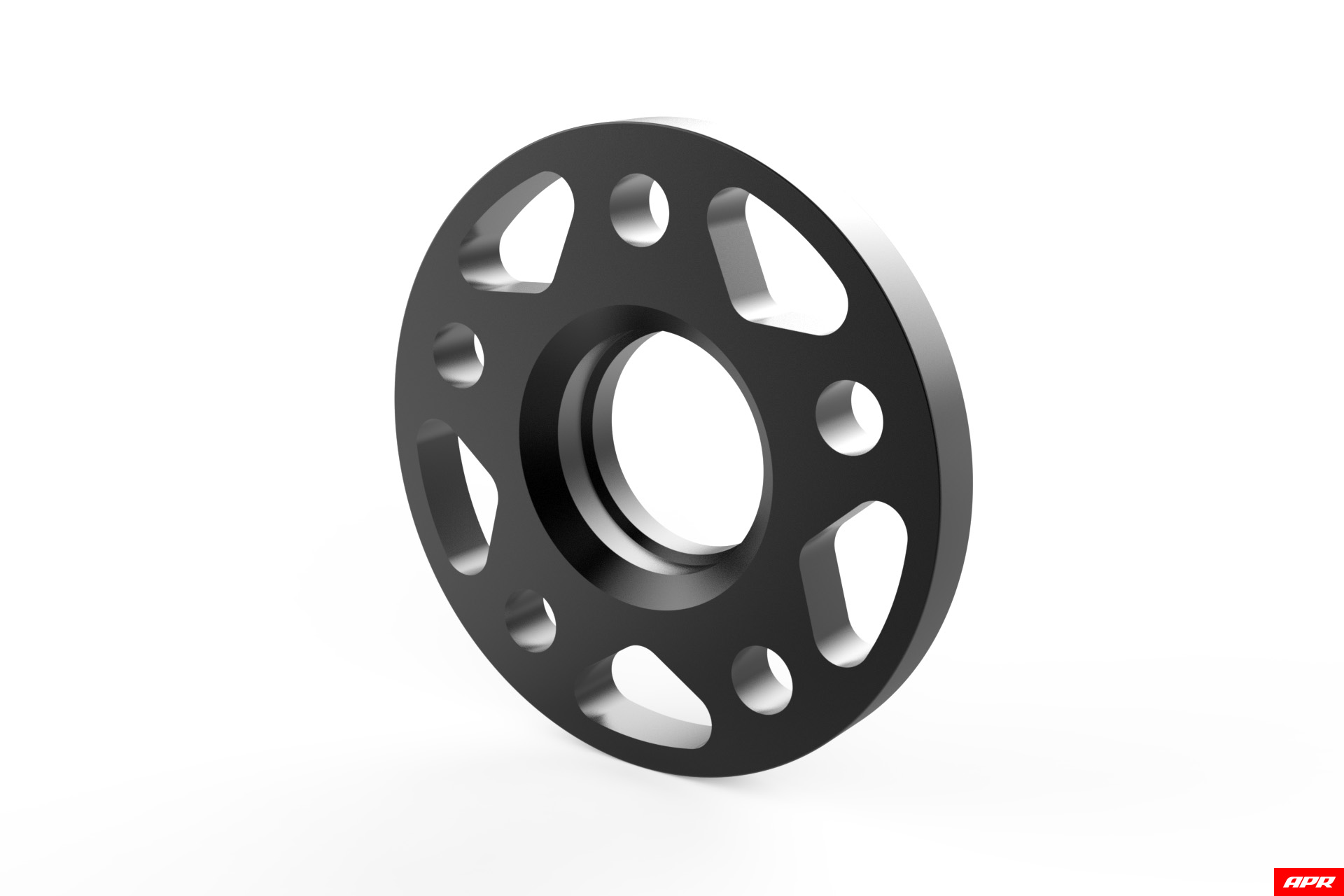

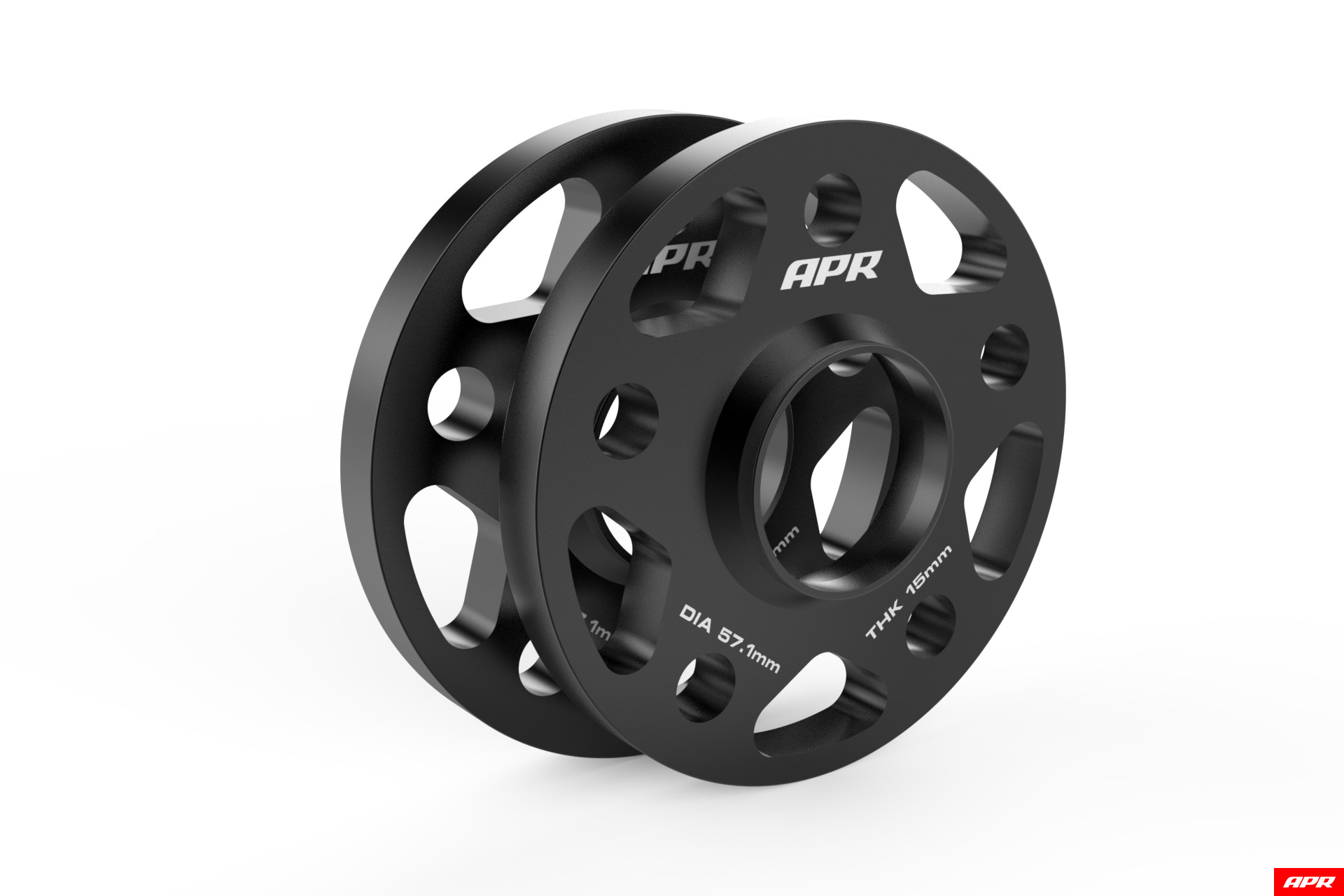

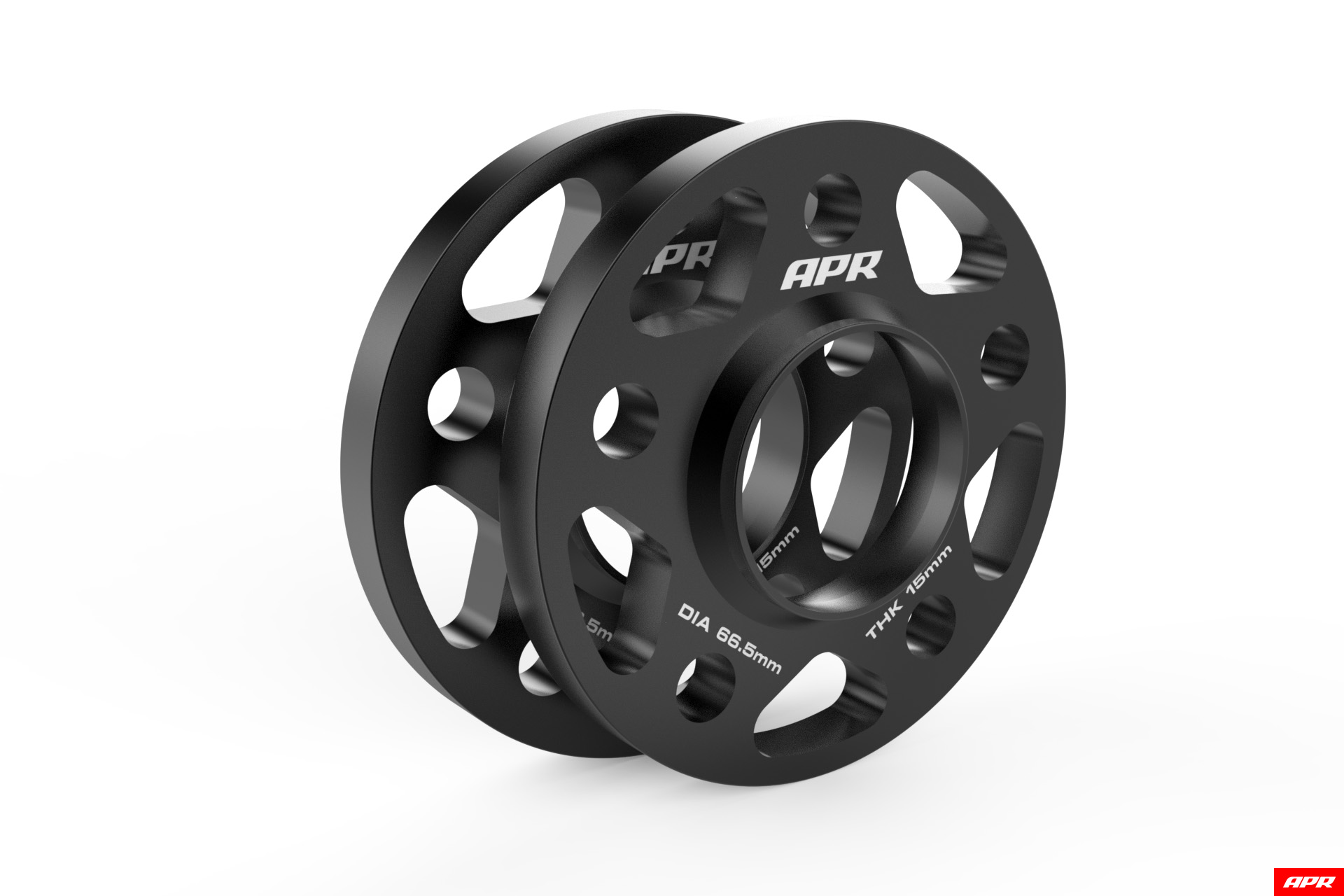

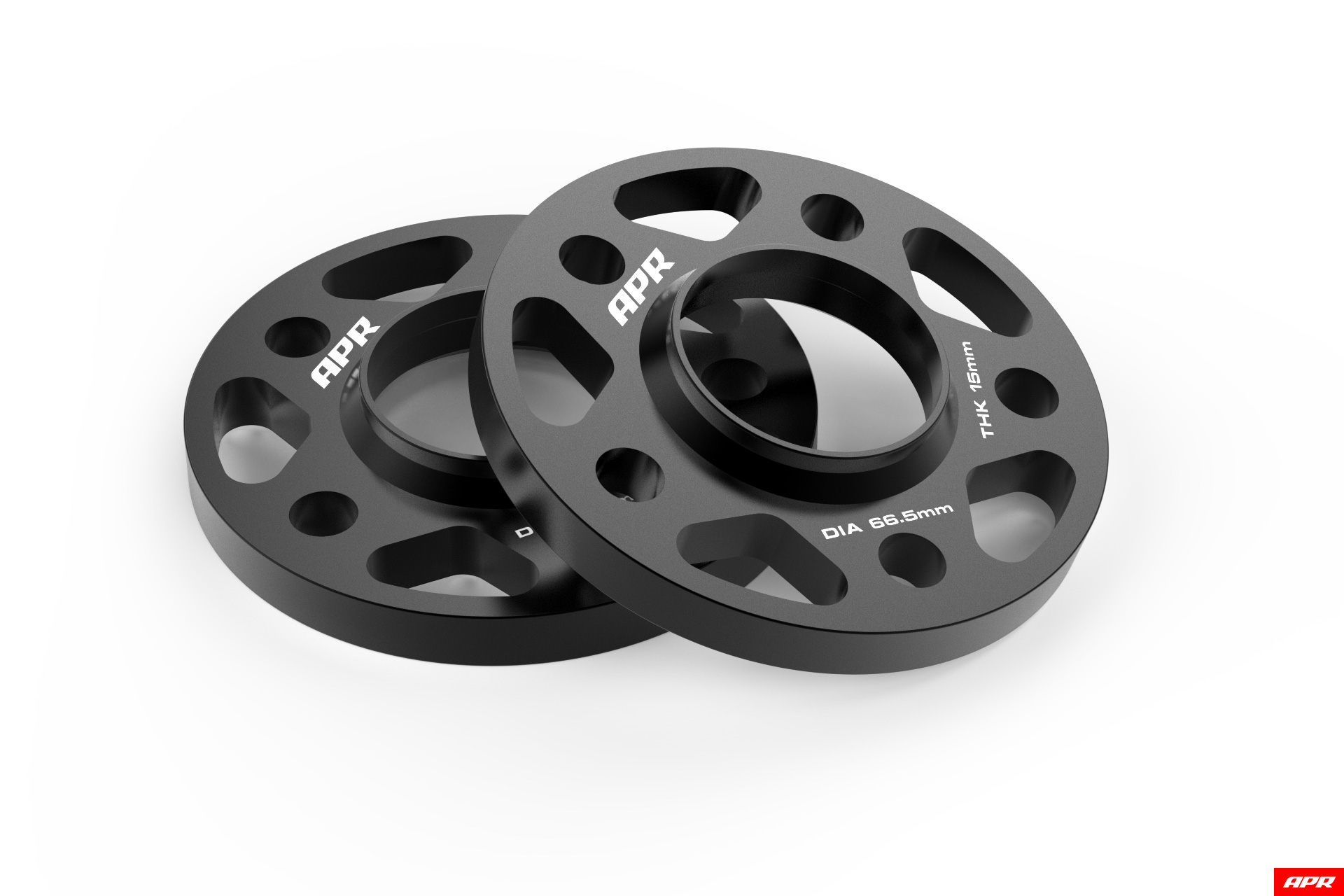

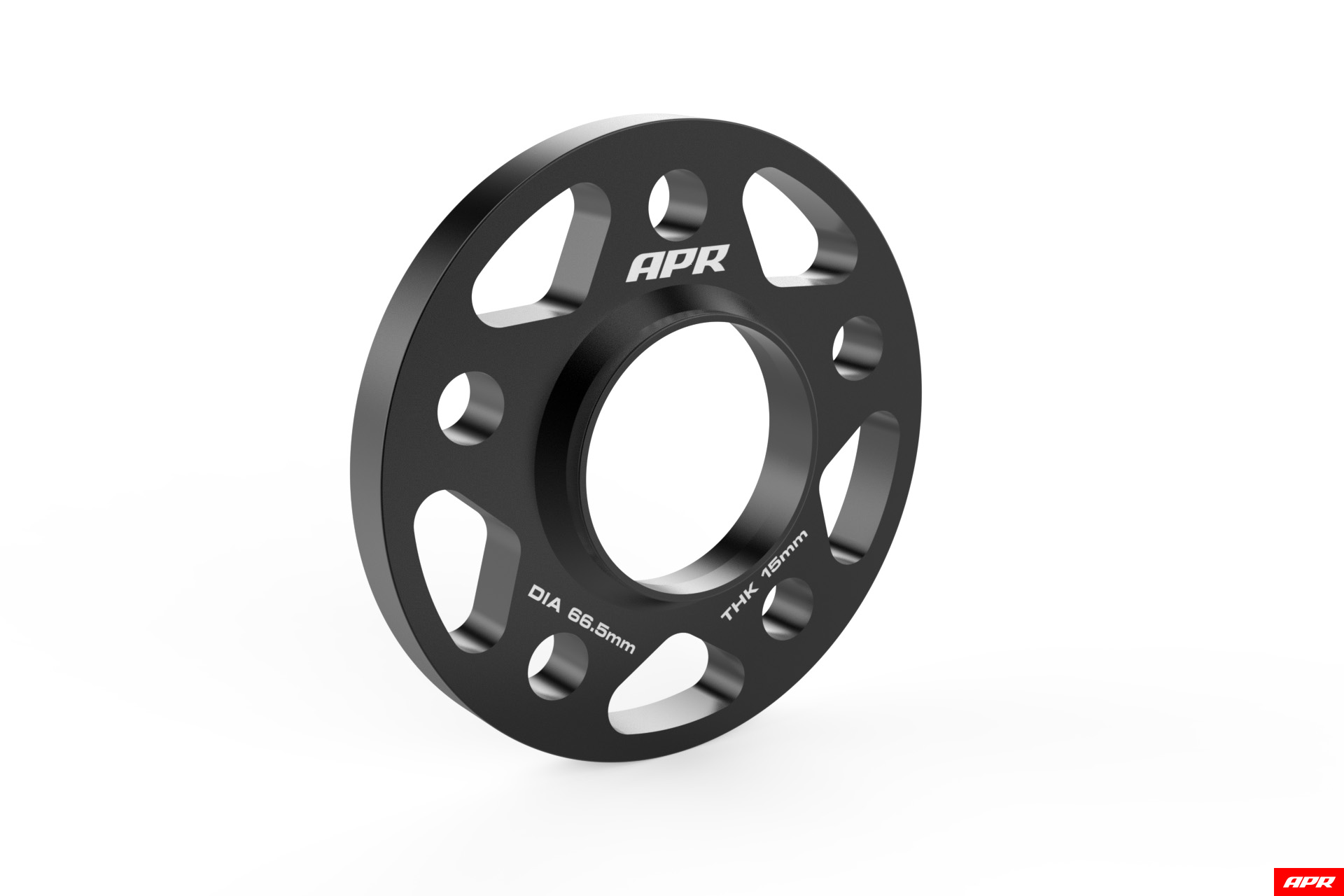

15mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore

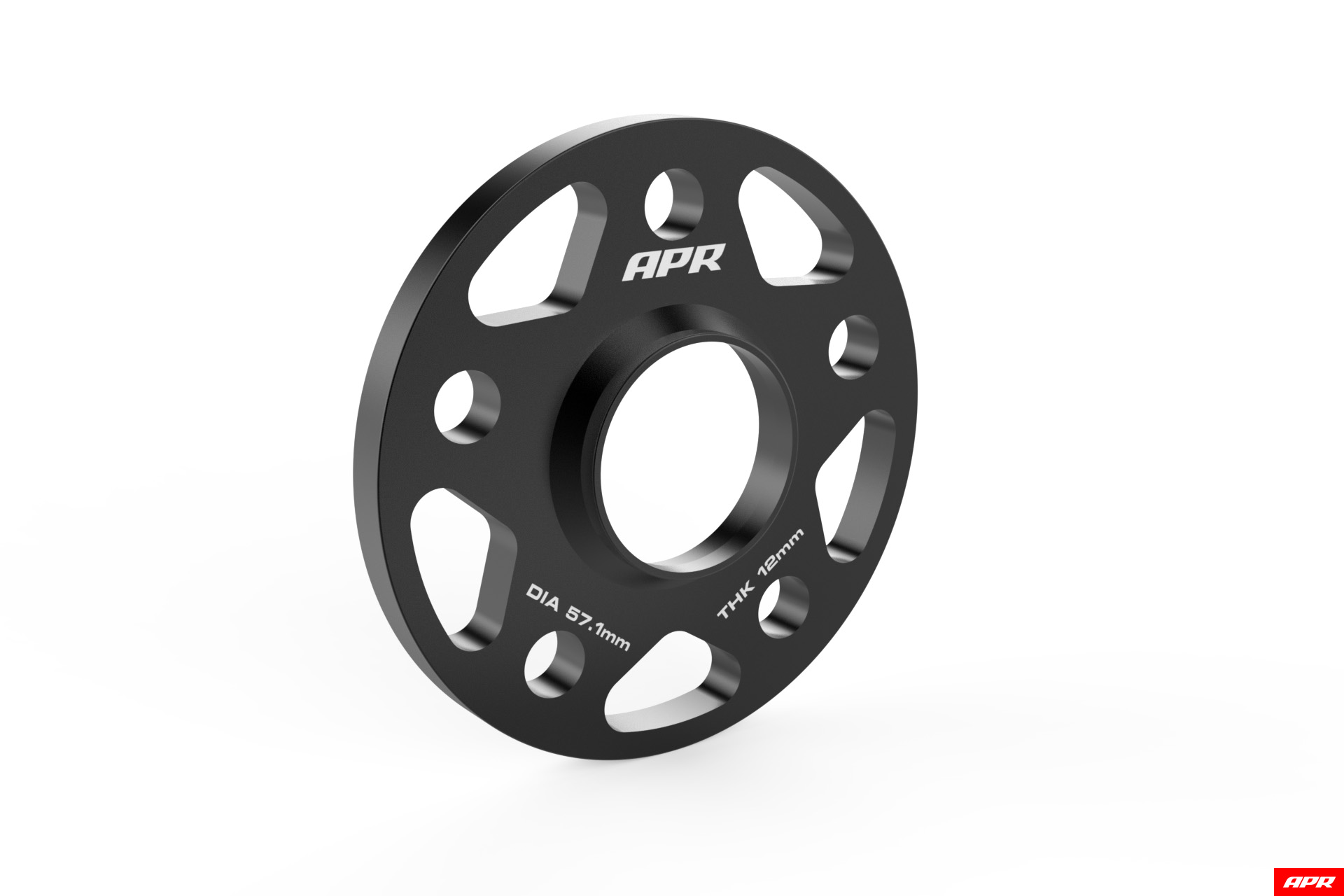

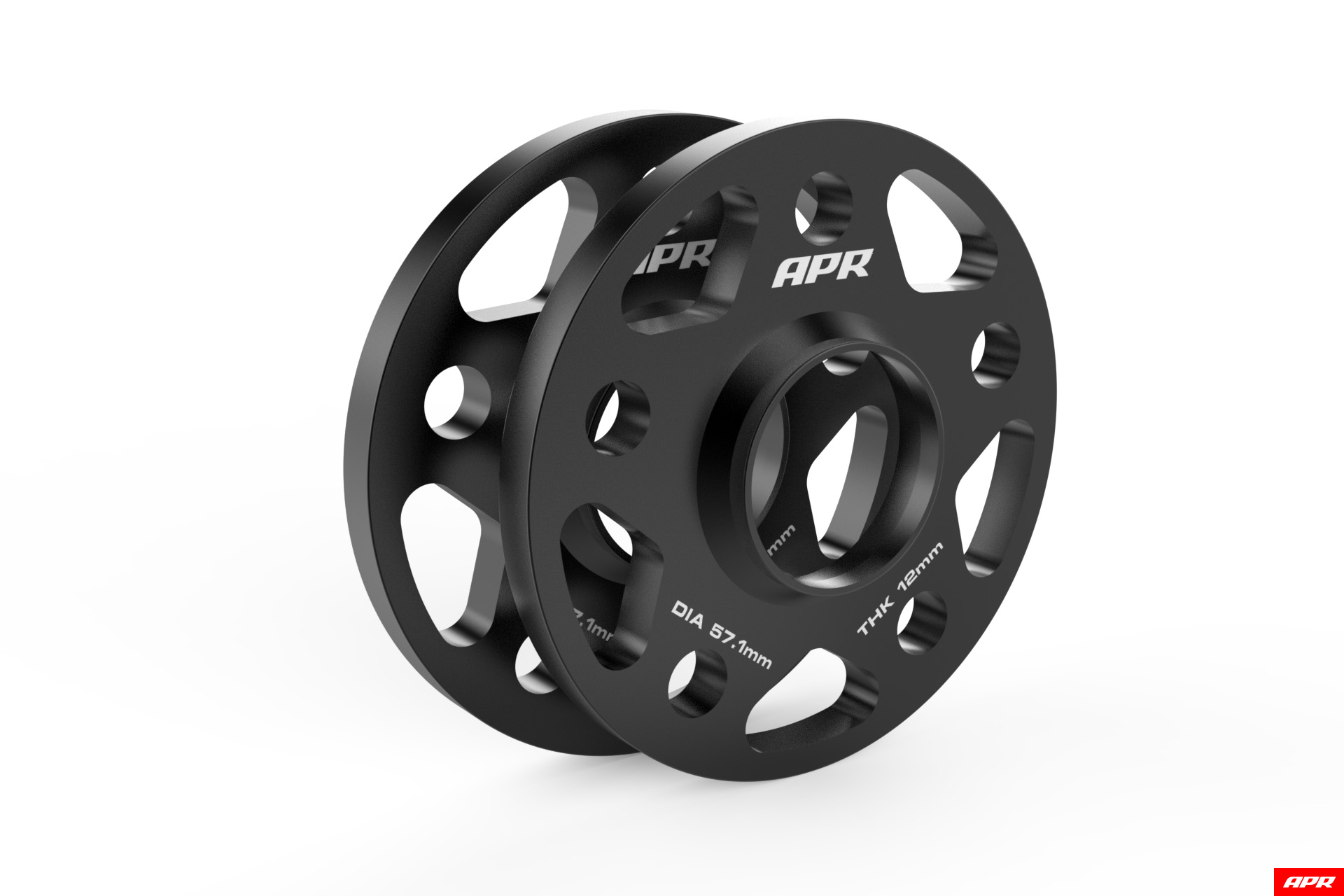

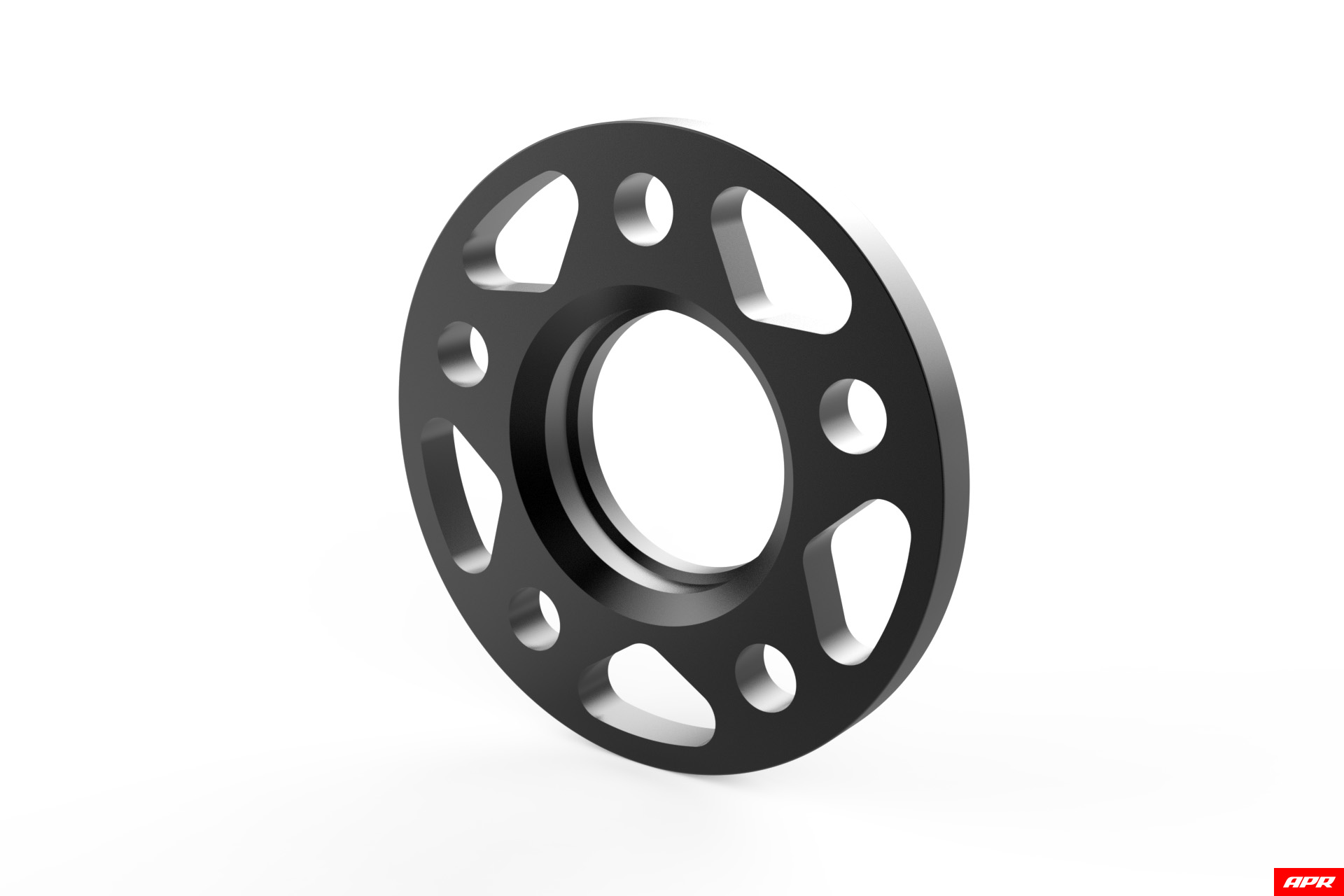

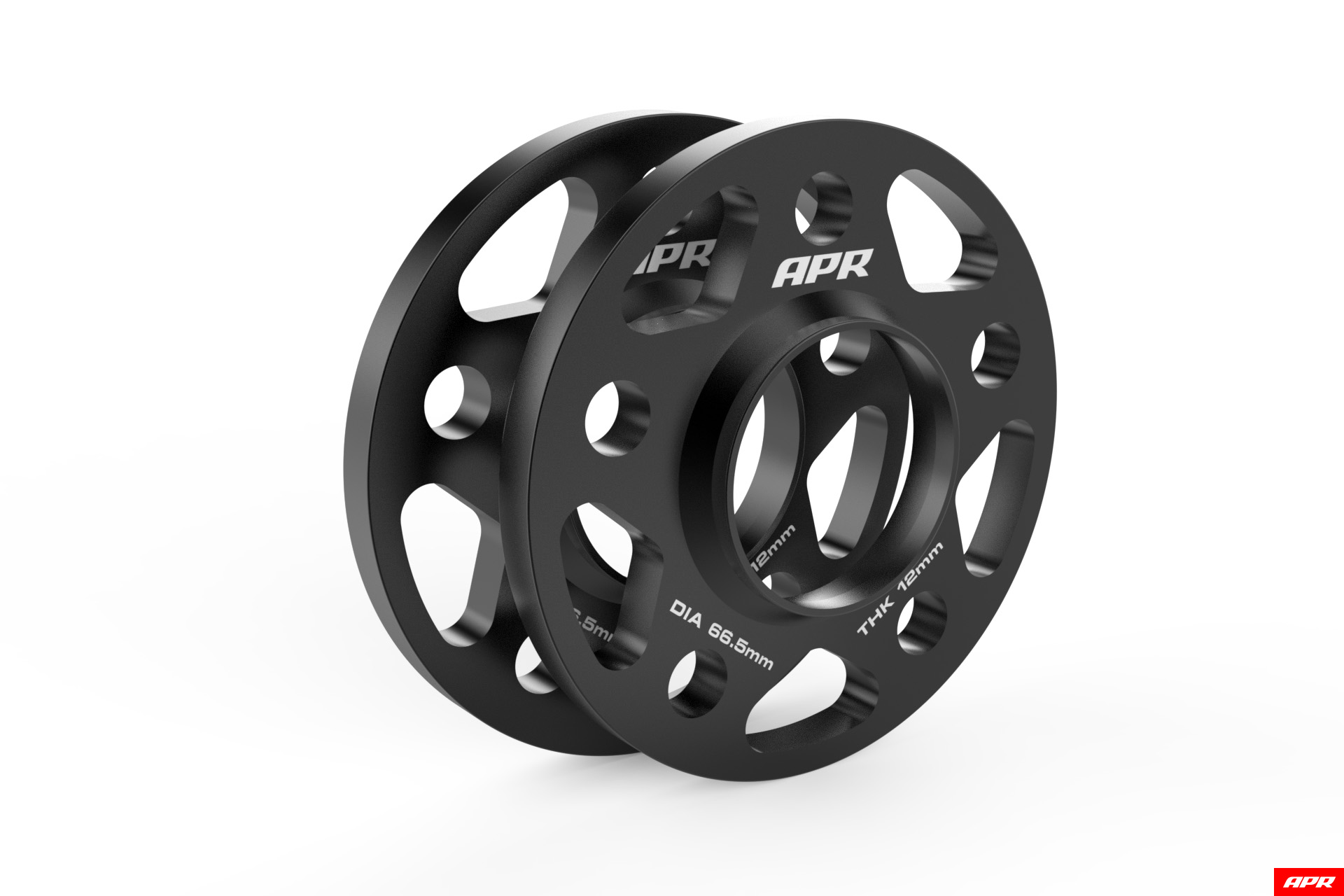

12mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore
This spacer will only fit vehicles with wheel centering features that protrude 12mm or less from hub mounting face

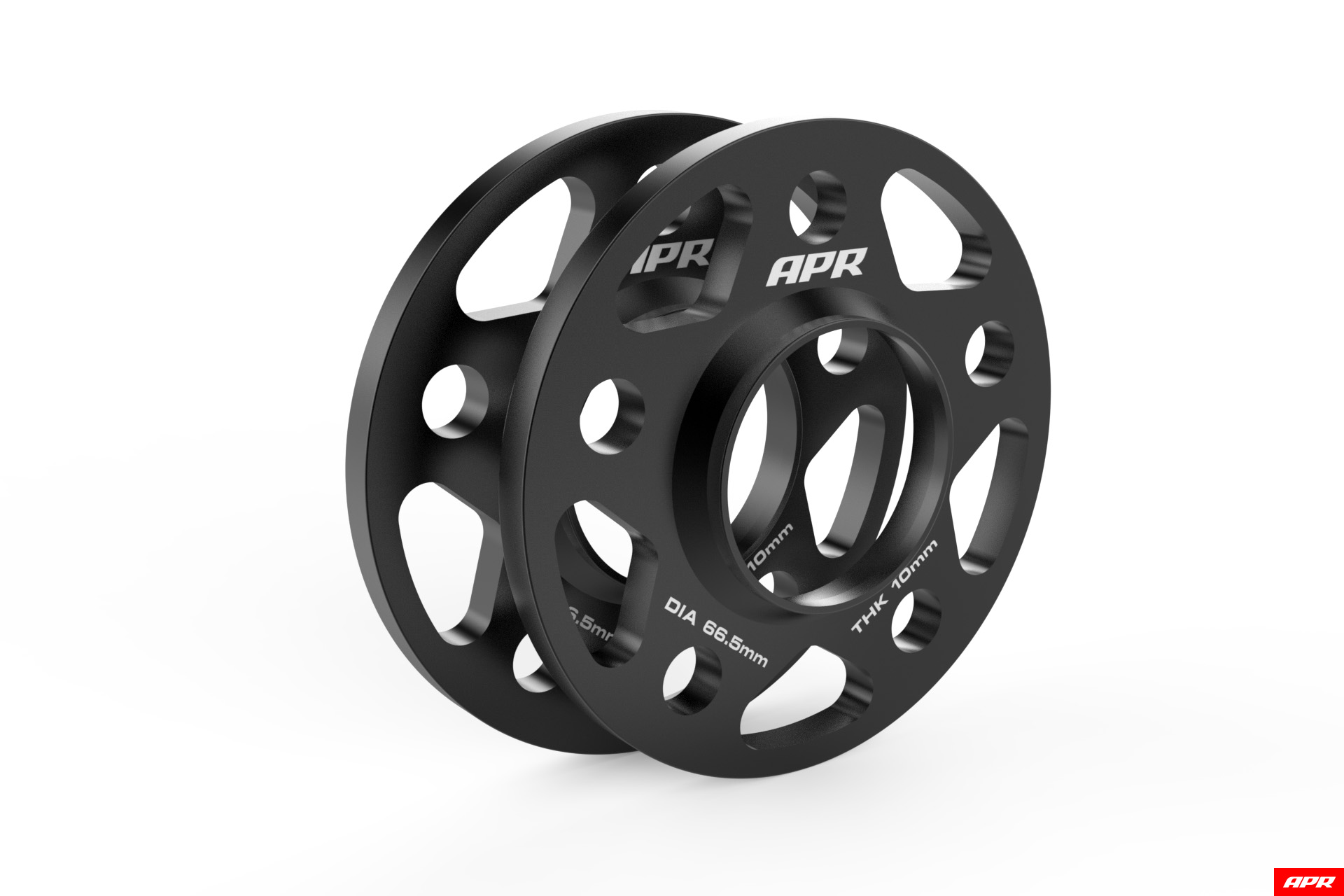

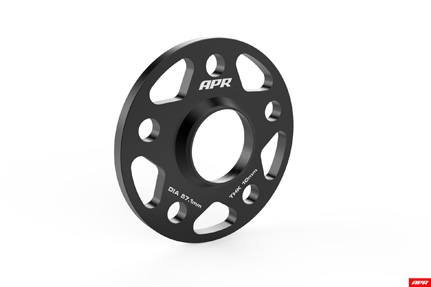

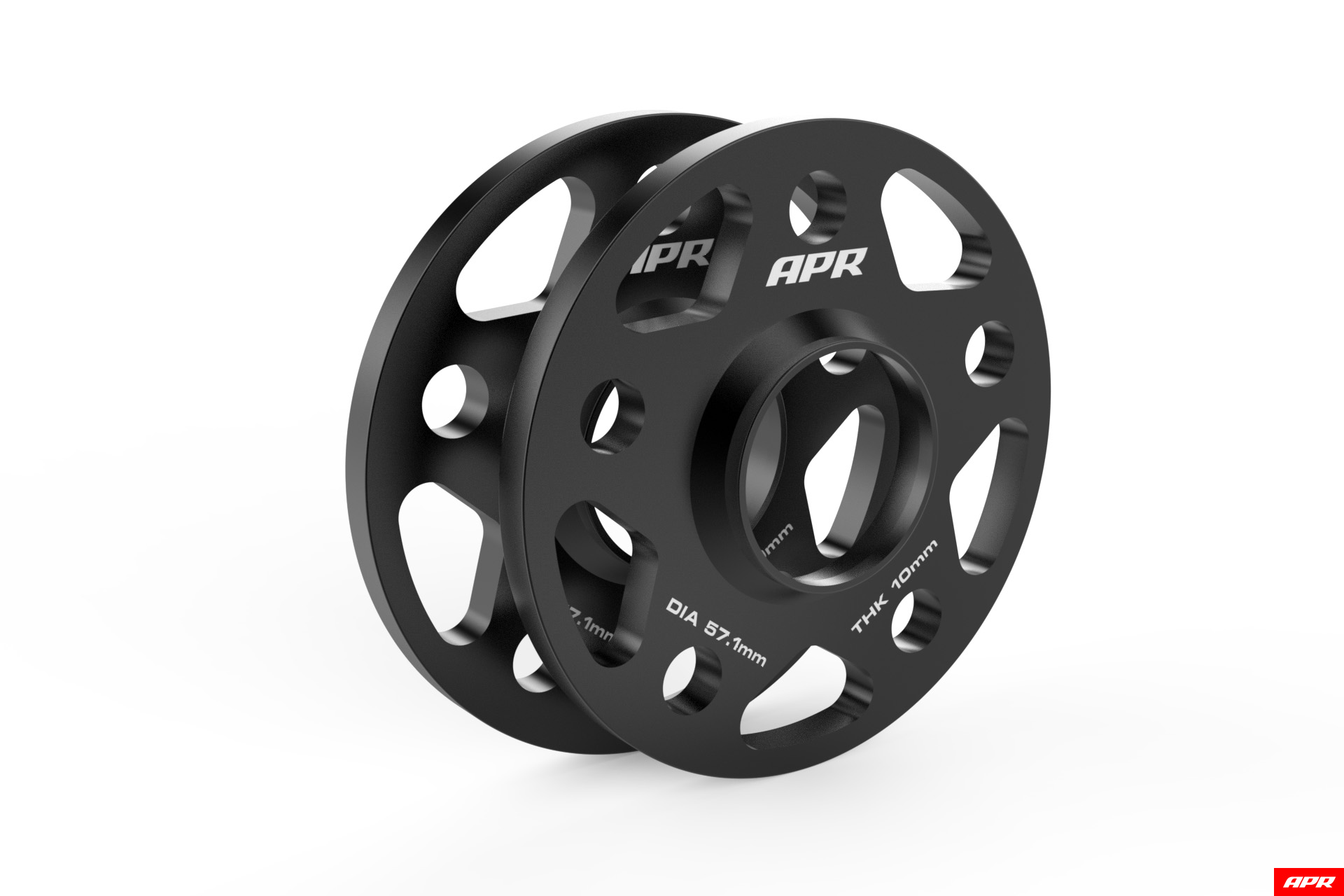

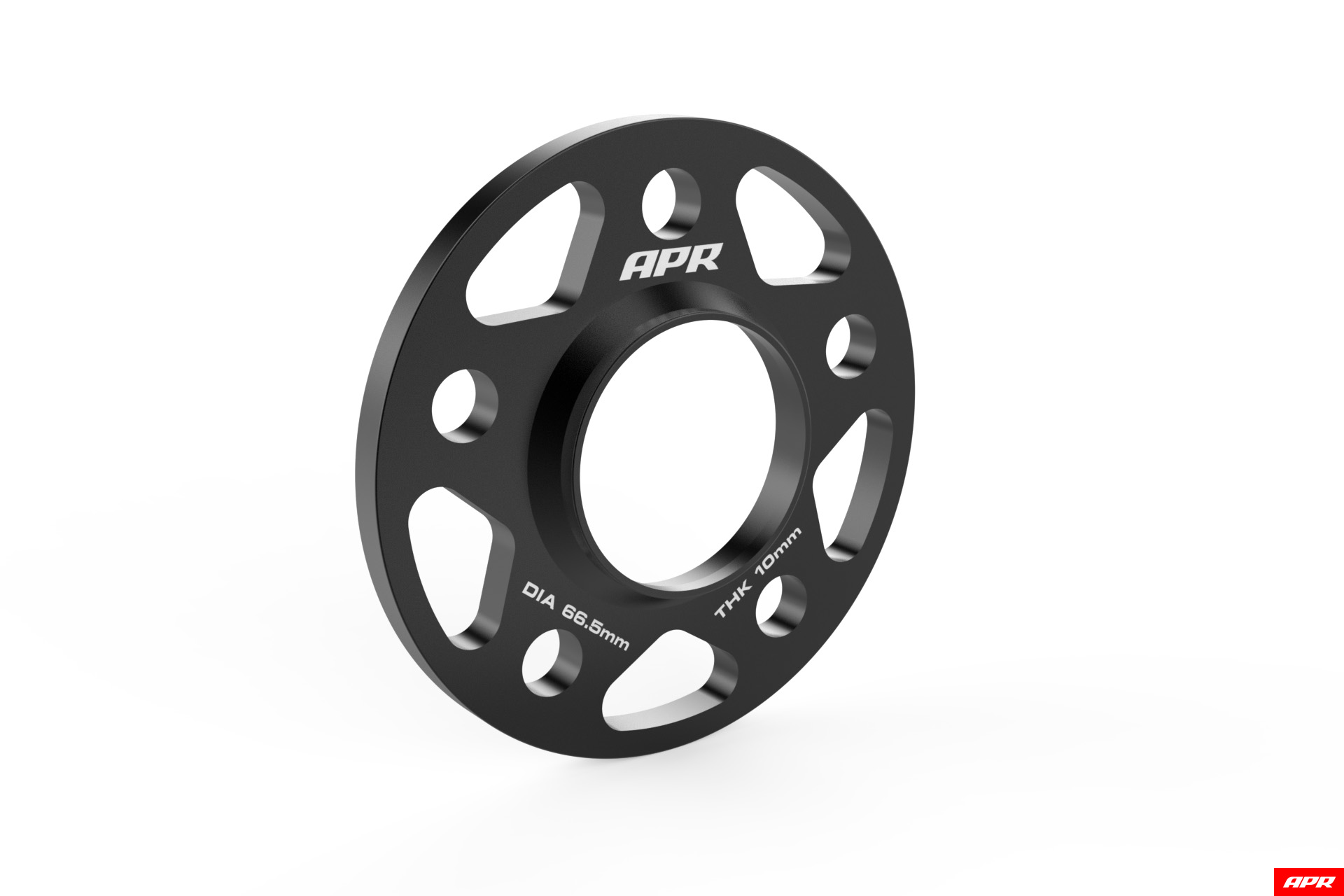

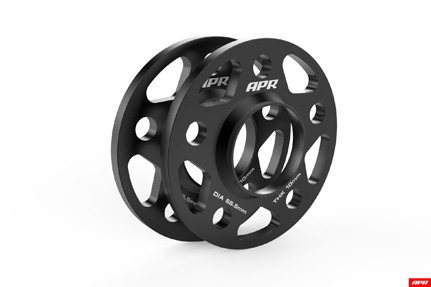

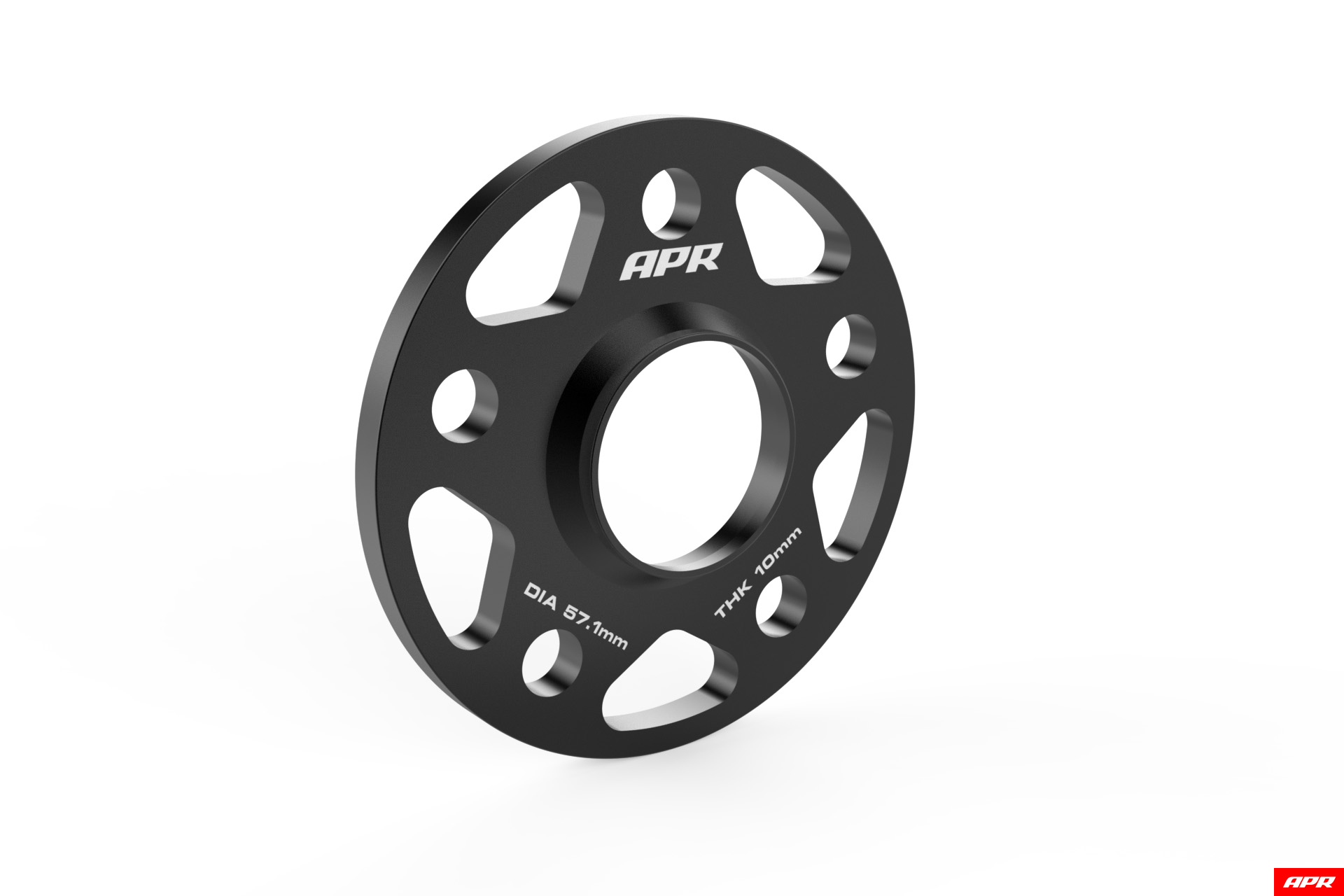

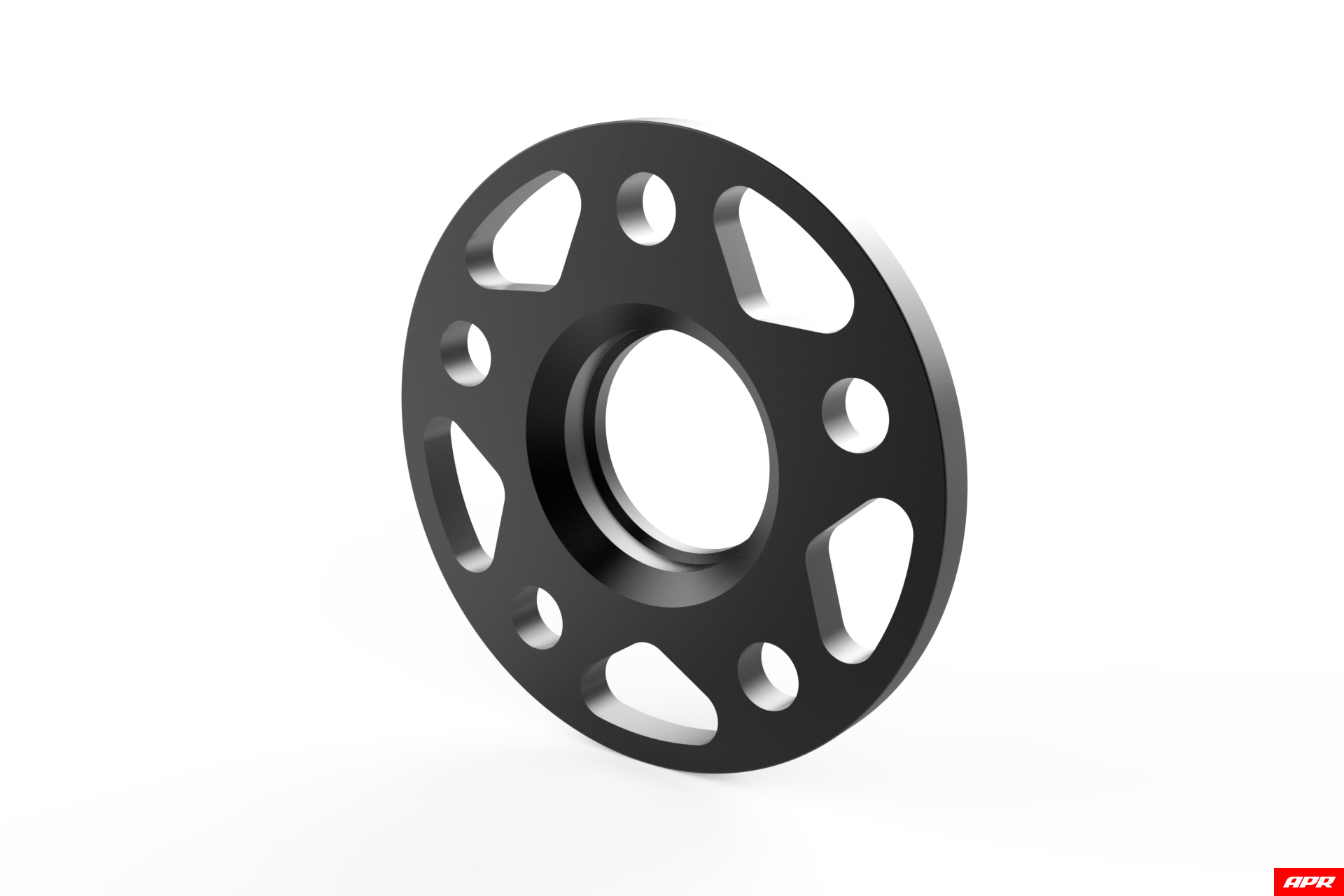

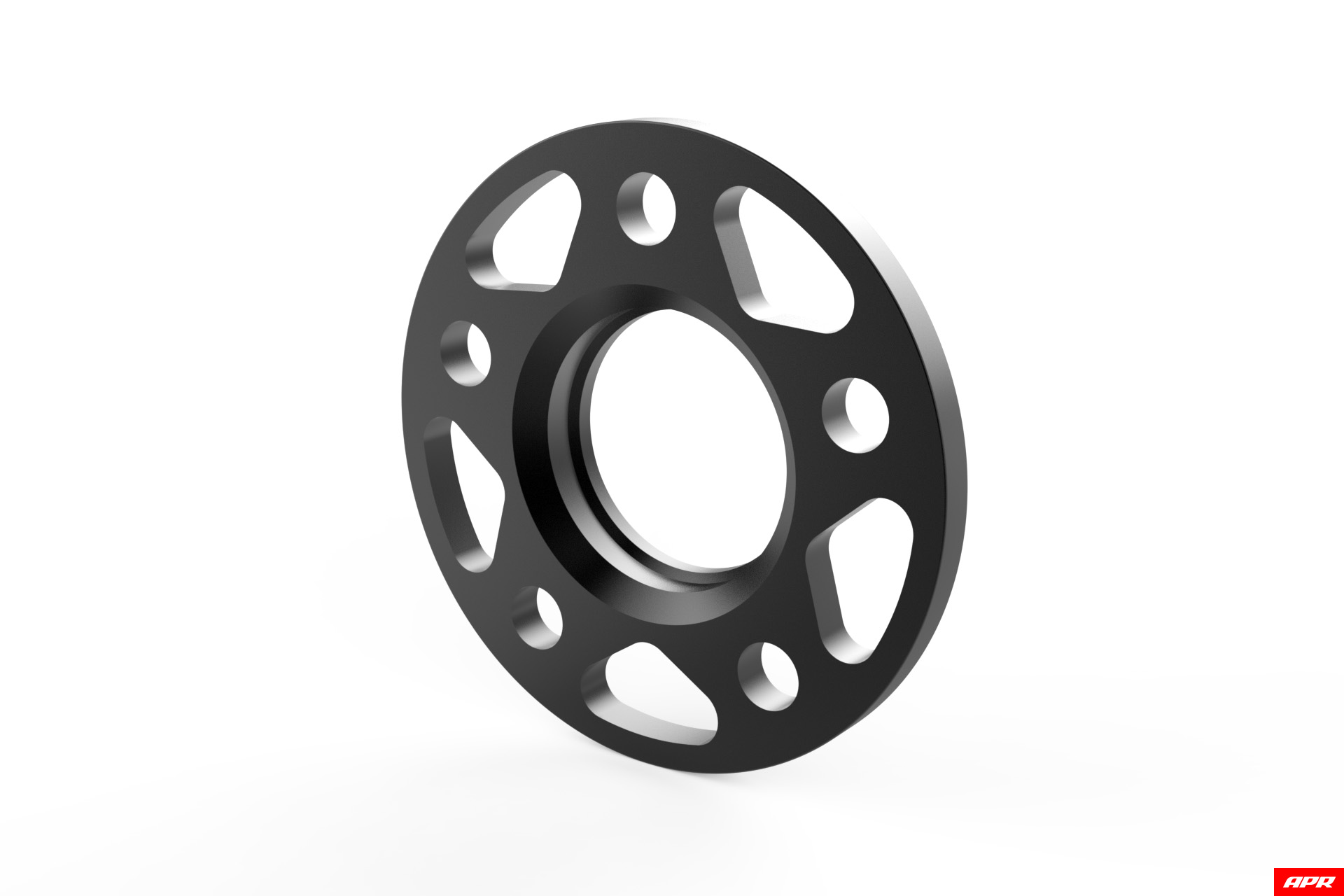

10mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore
This spacer will only fit vehicles with wheel centering features that protrude 12mm or less from hub mounting face

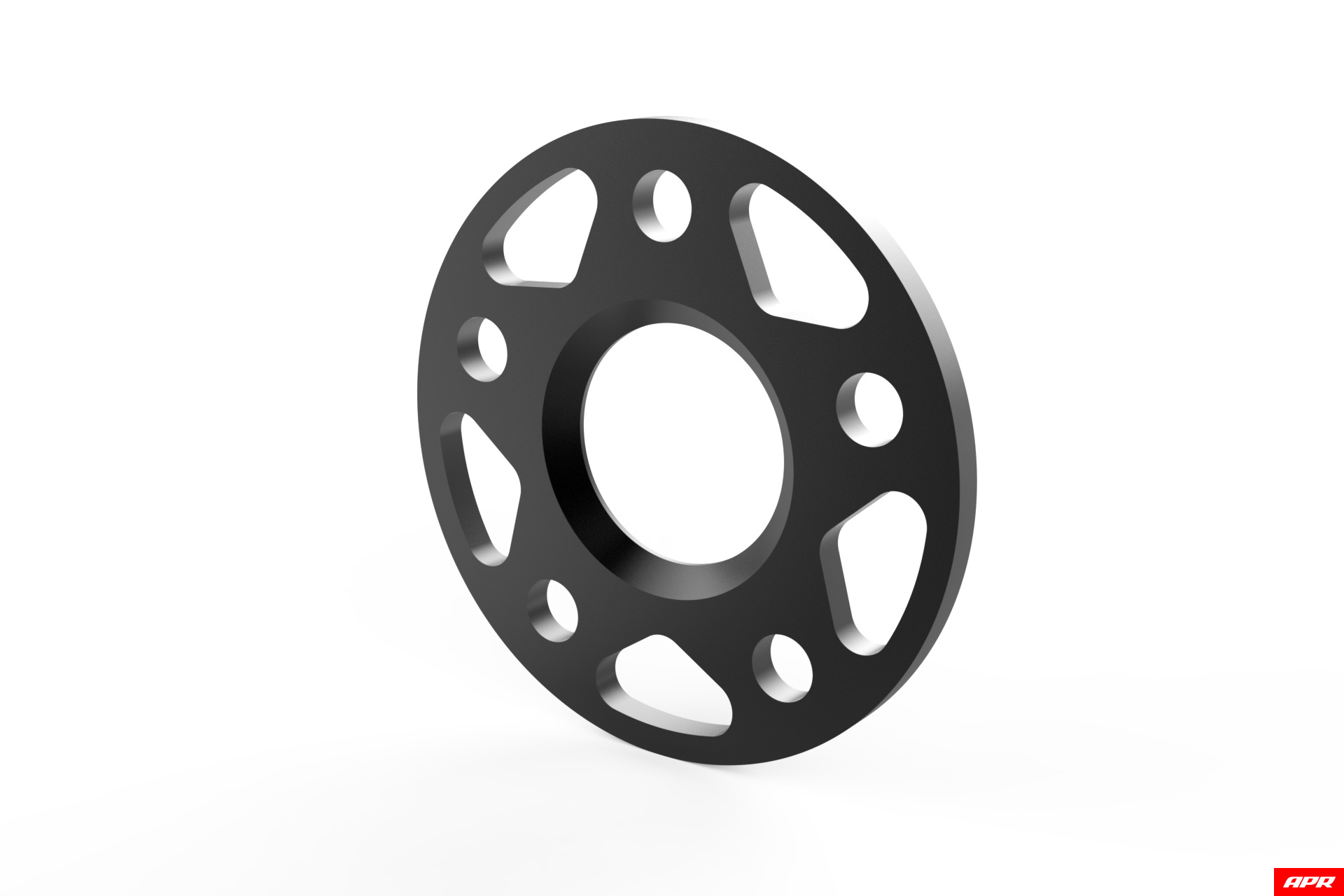

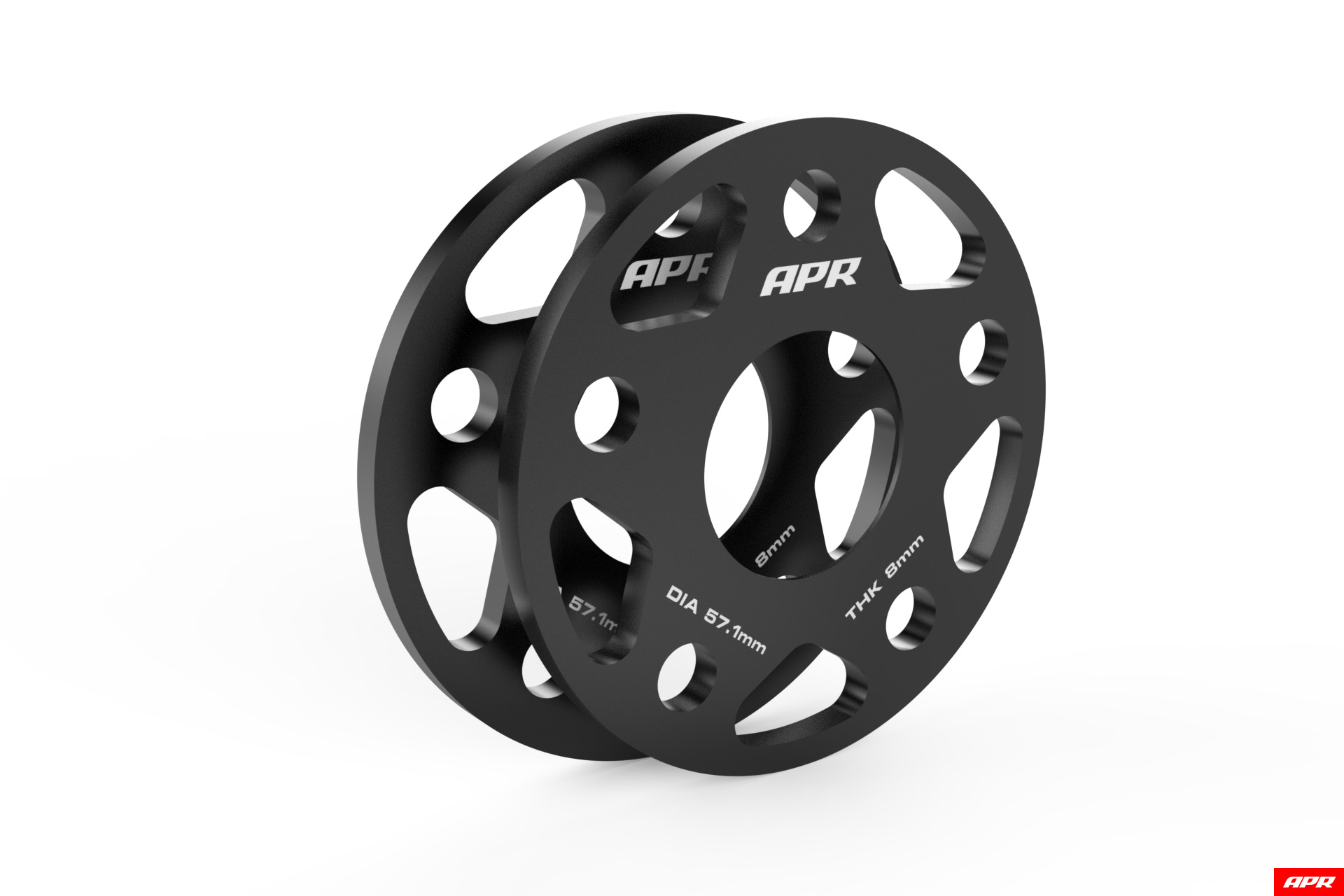

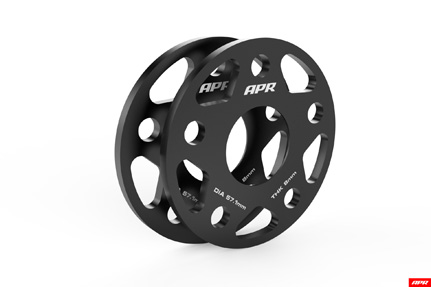

8mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore

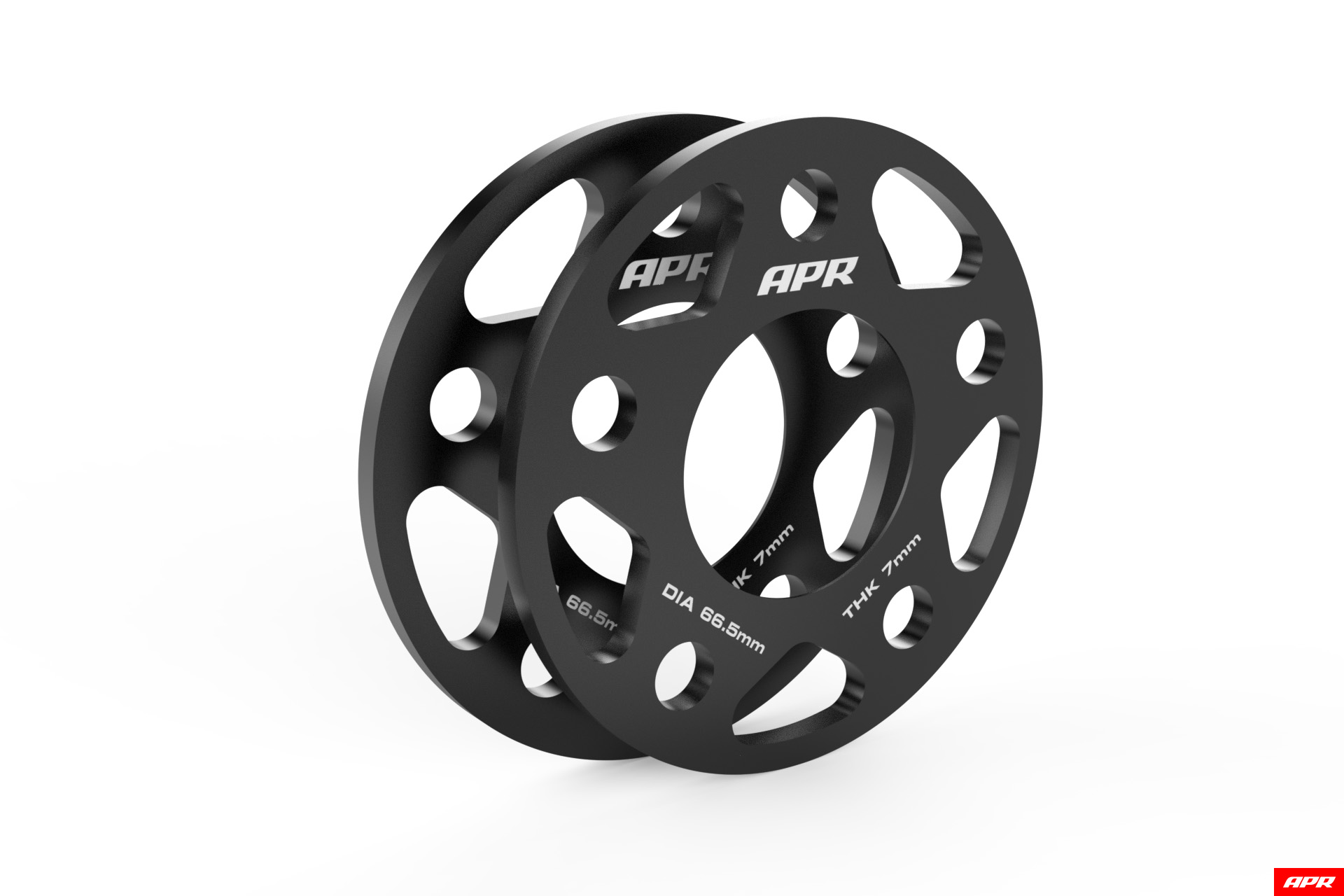

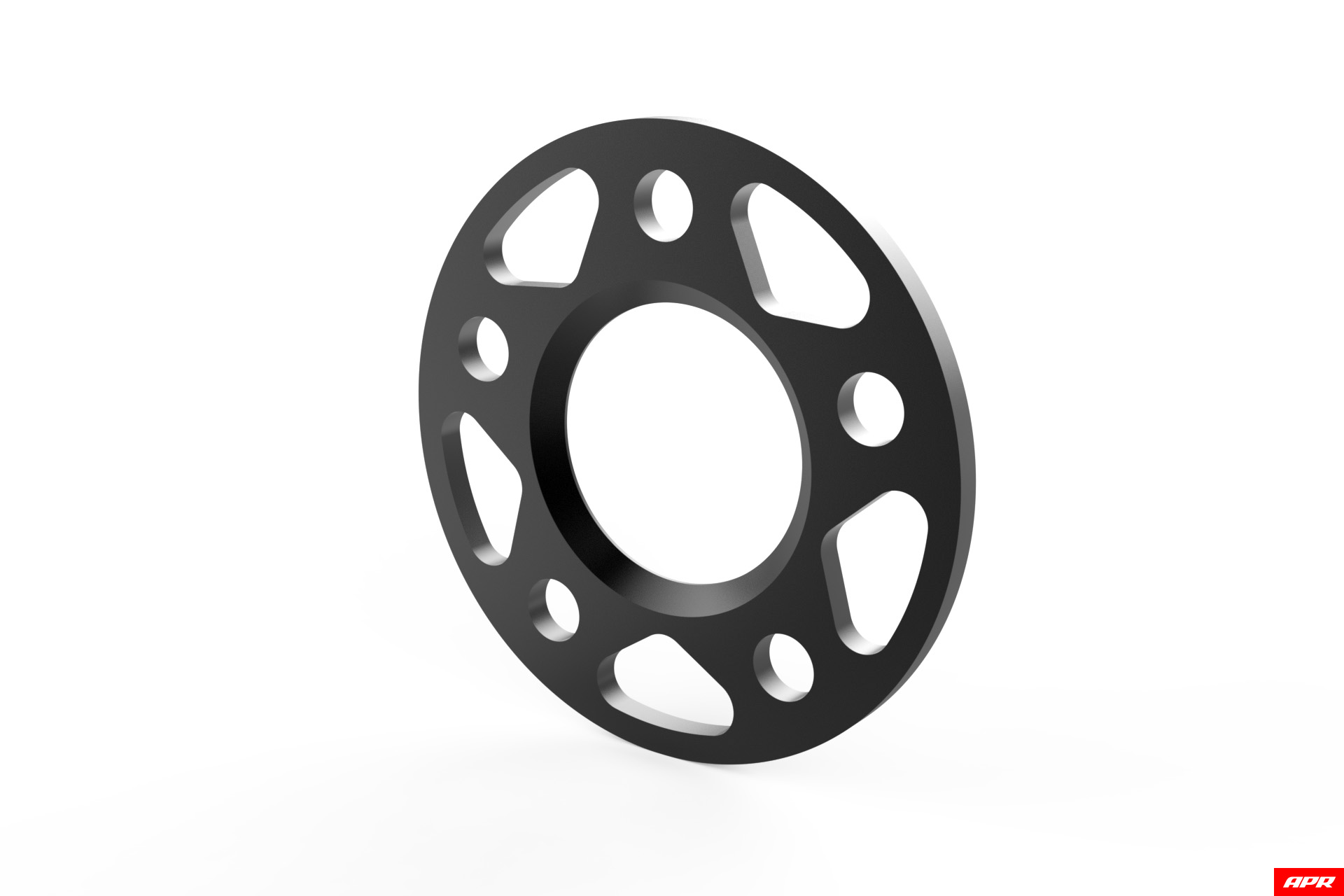

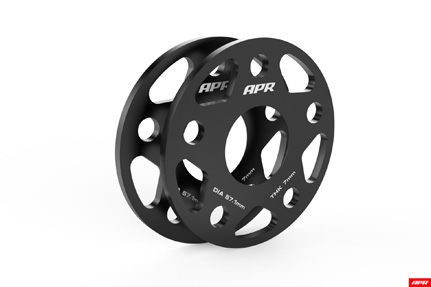

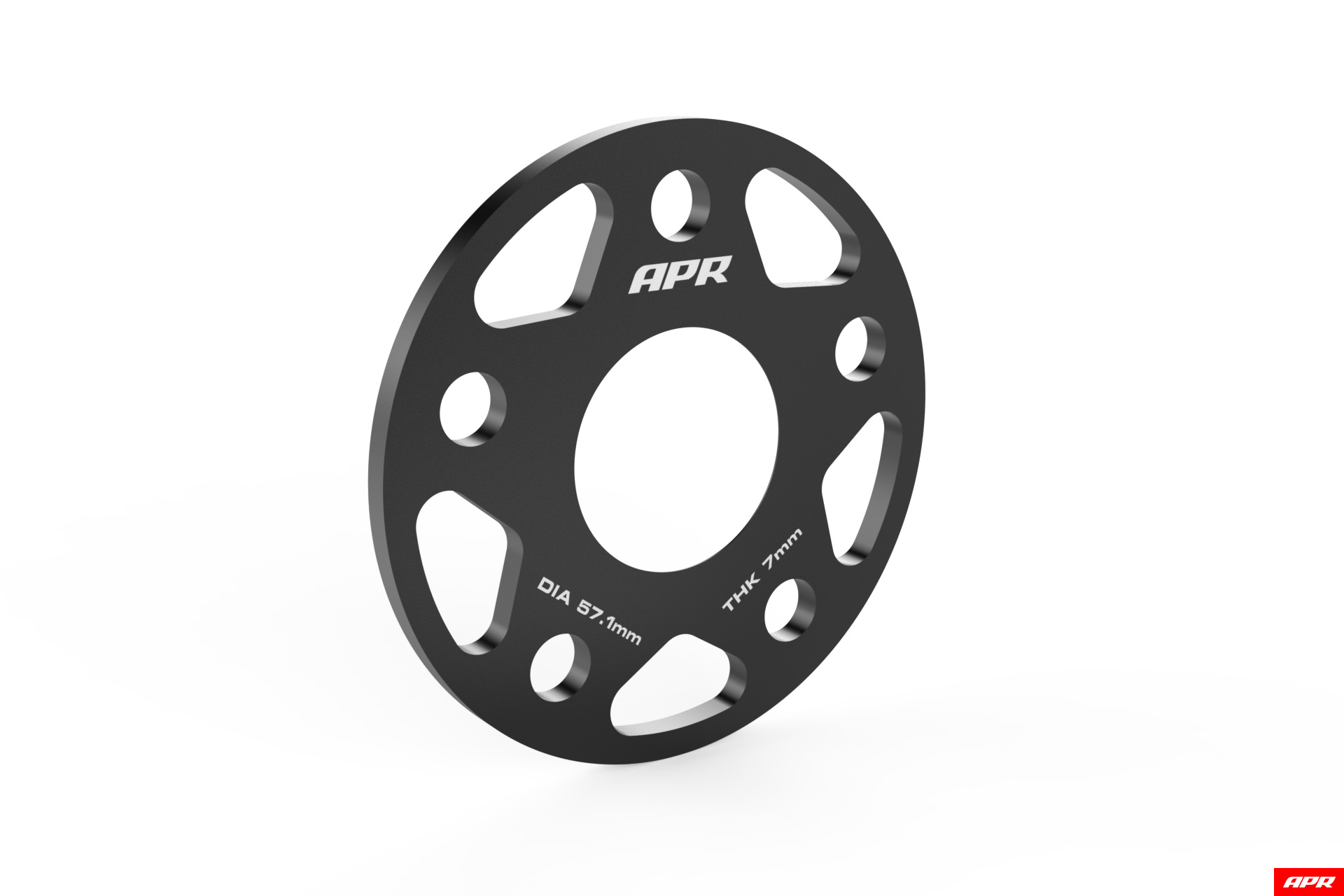

7mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore

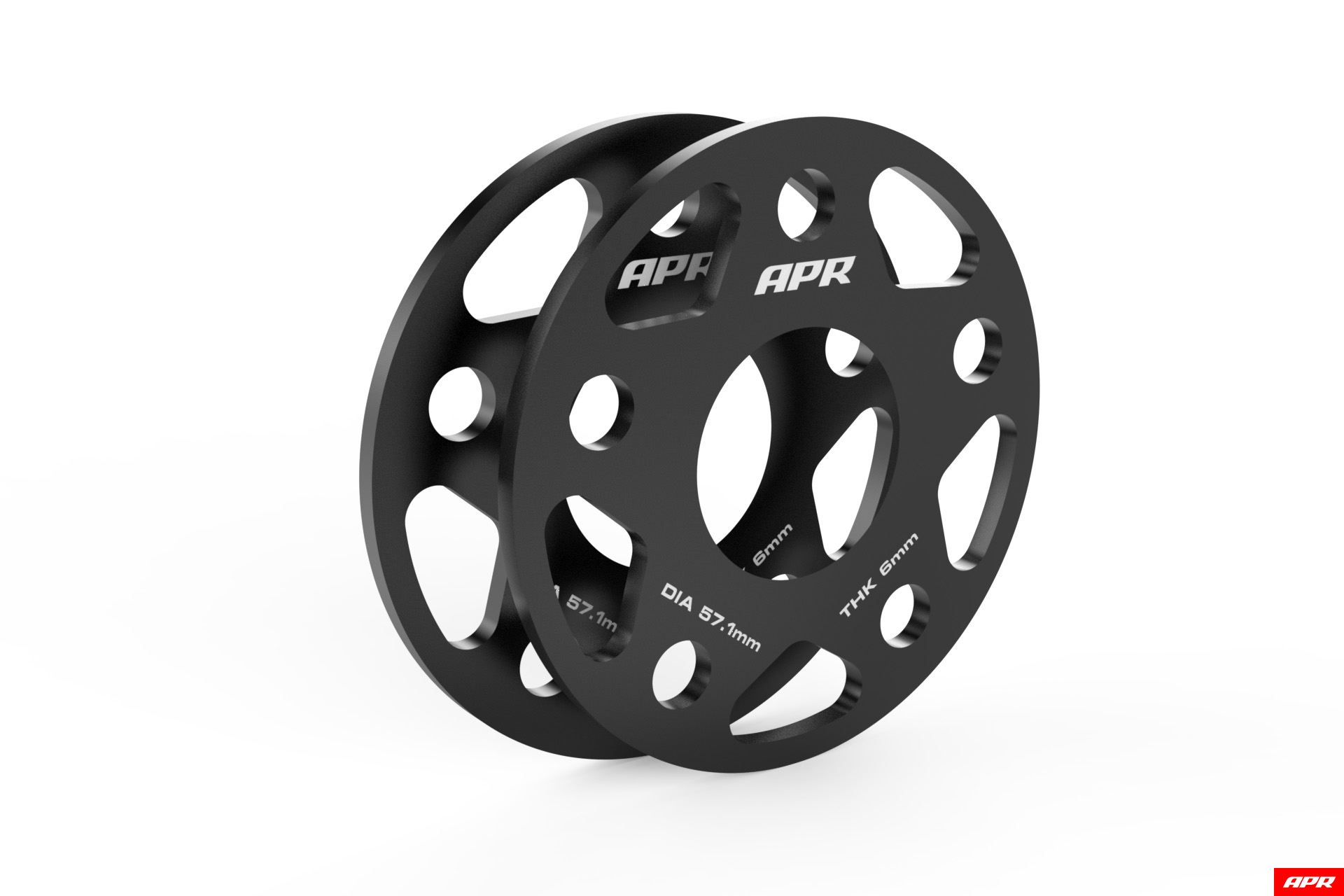

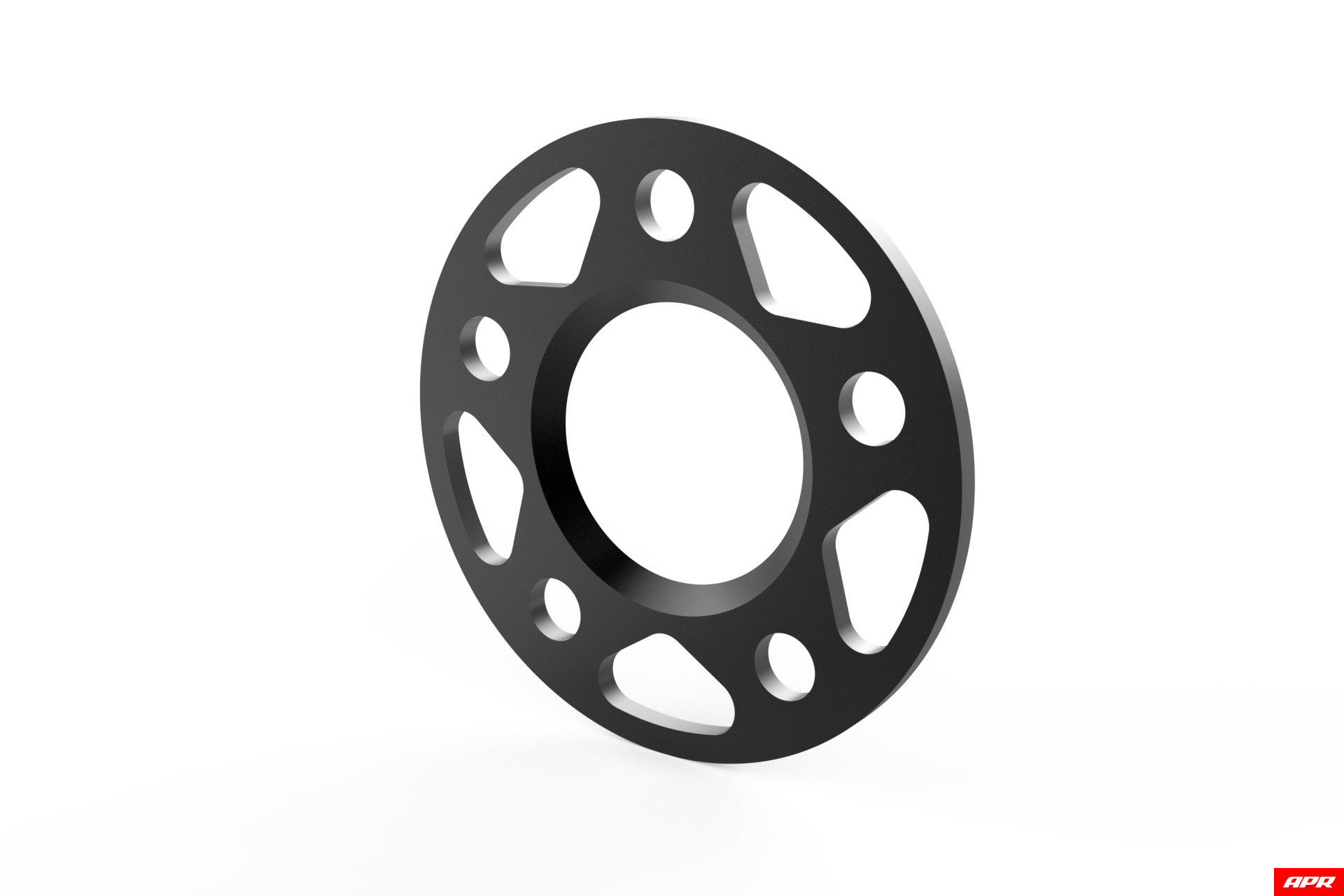

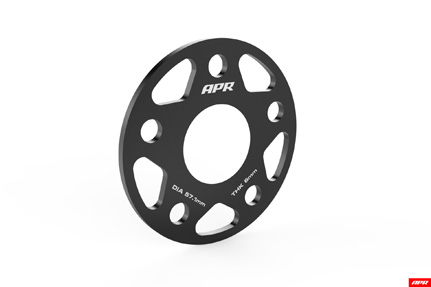

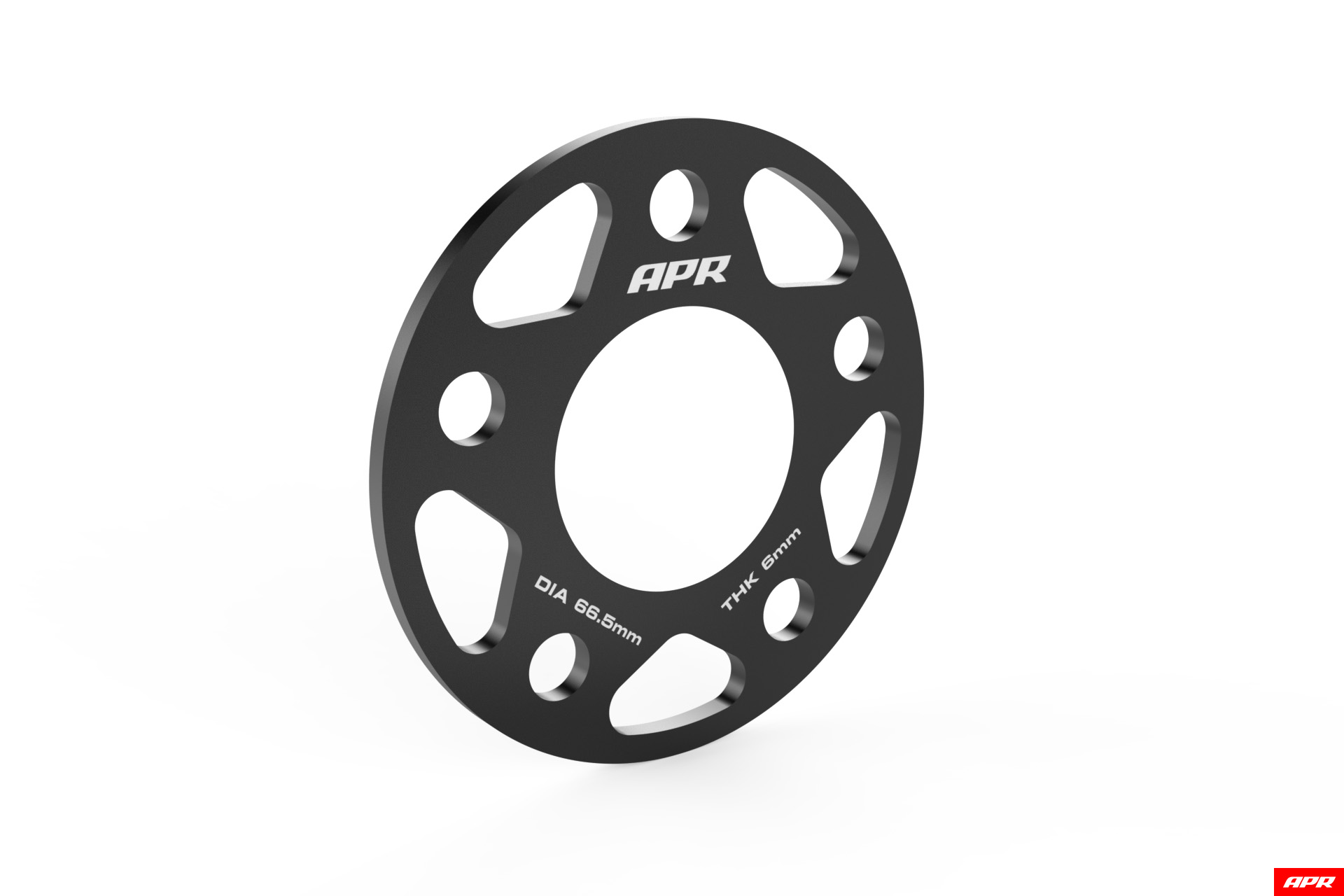

6mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore

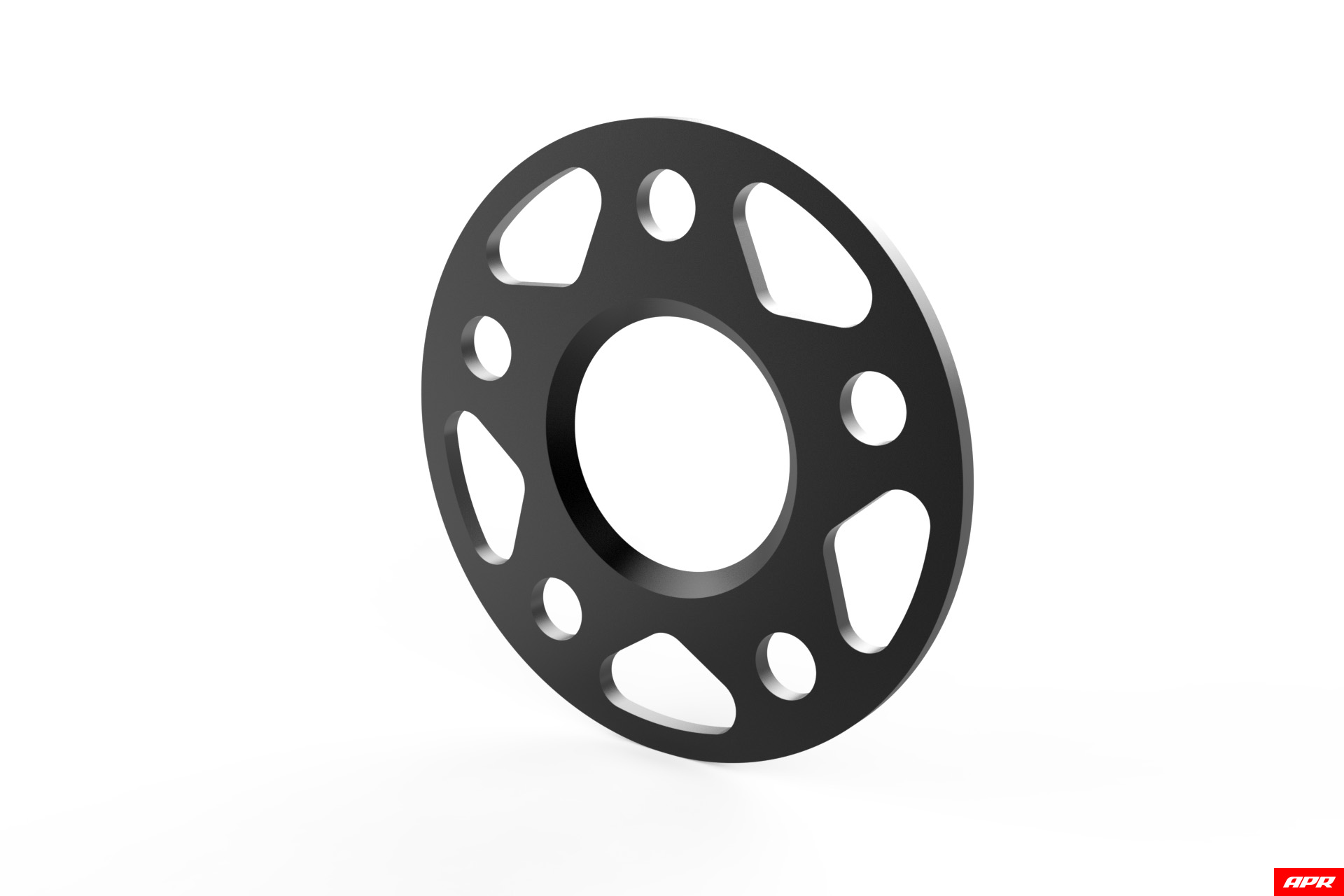

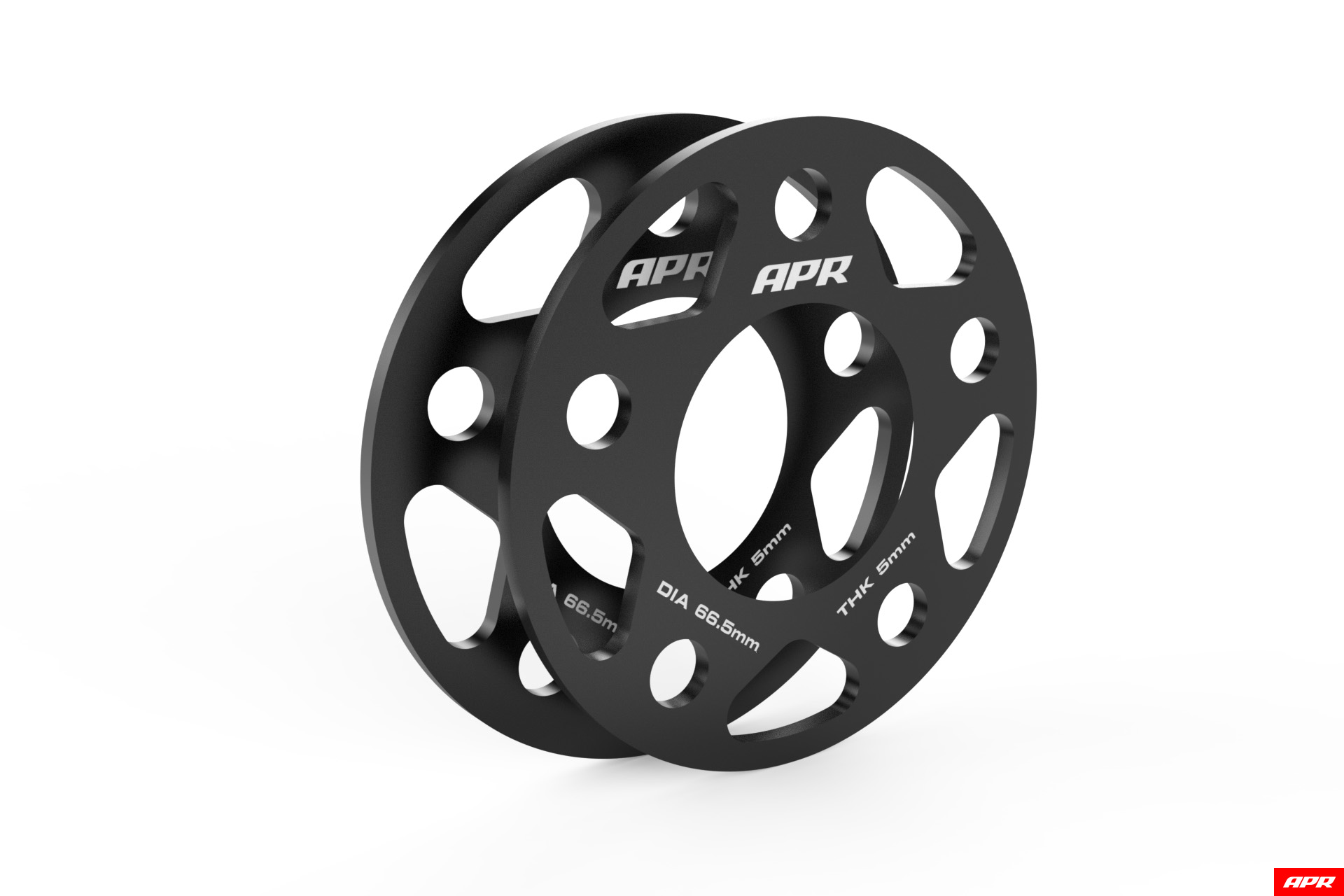

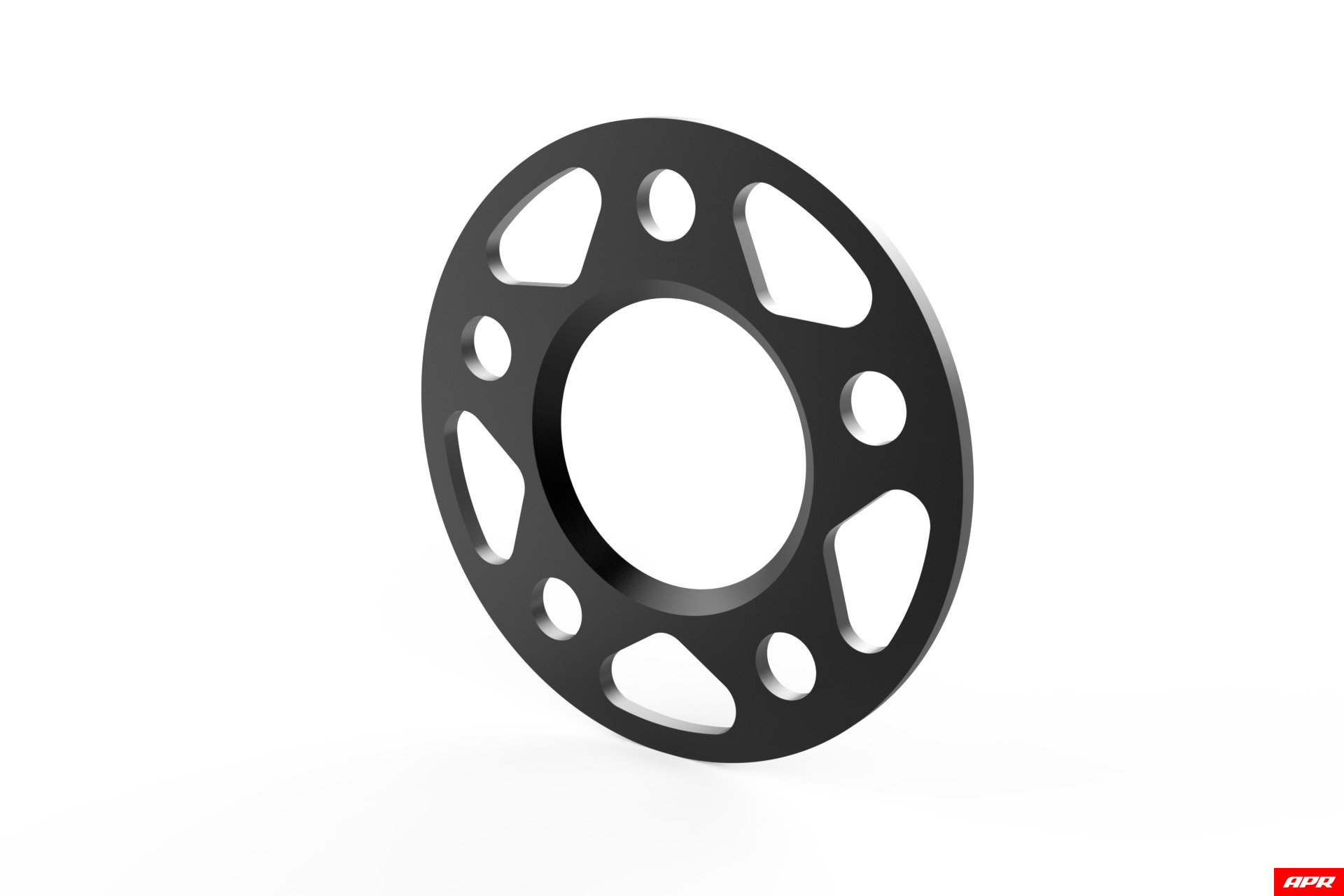

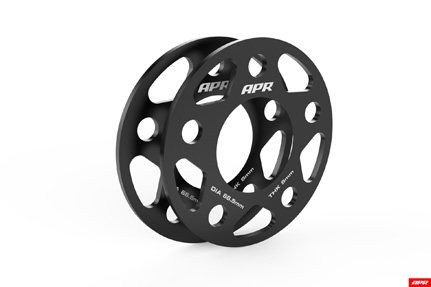

5mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore

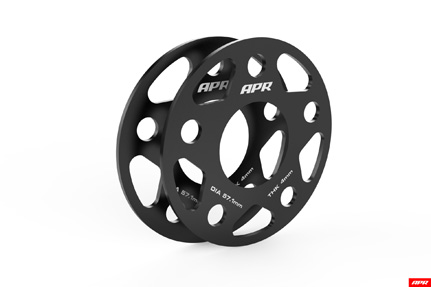

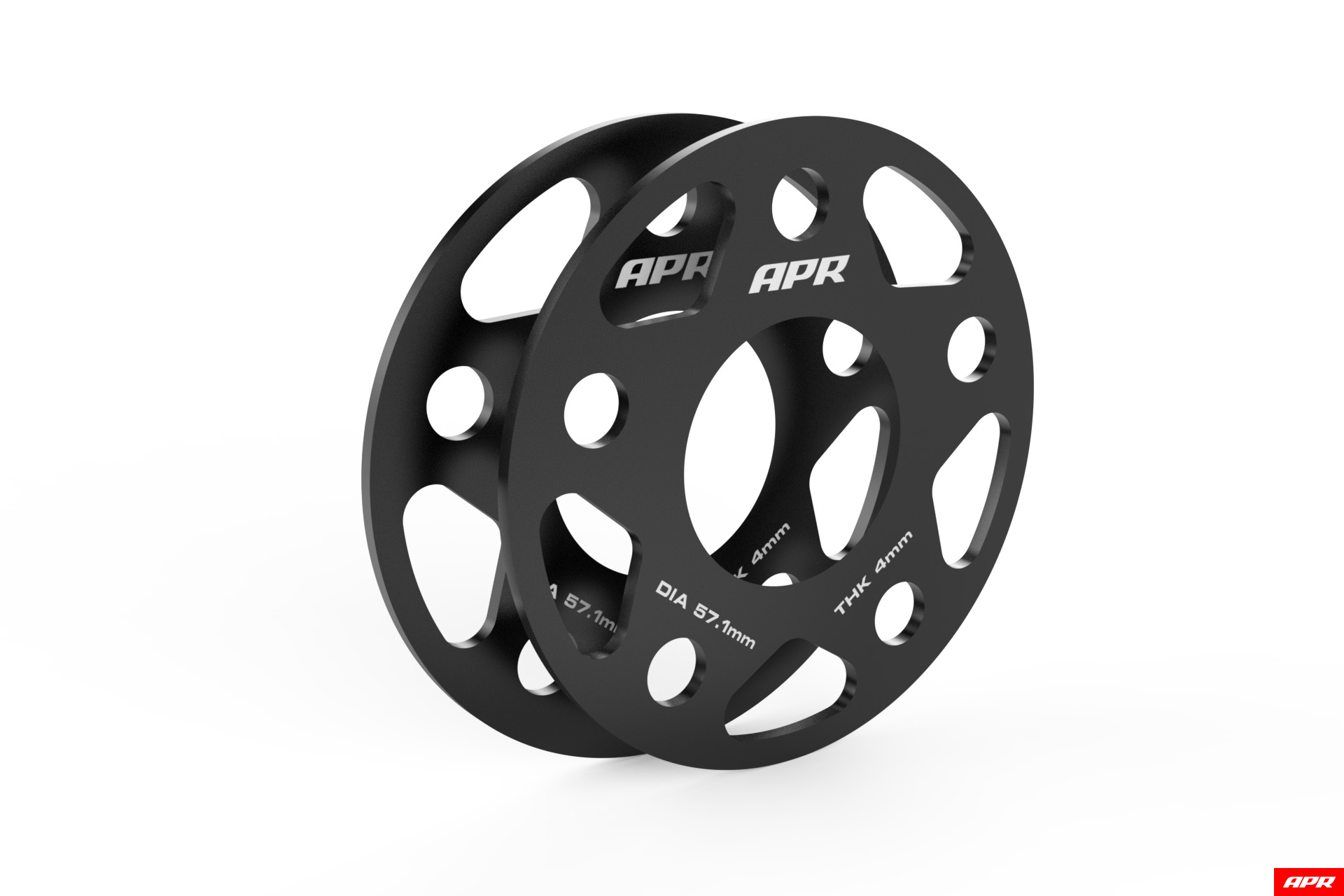

4mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore

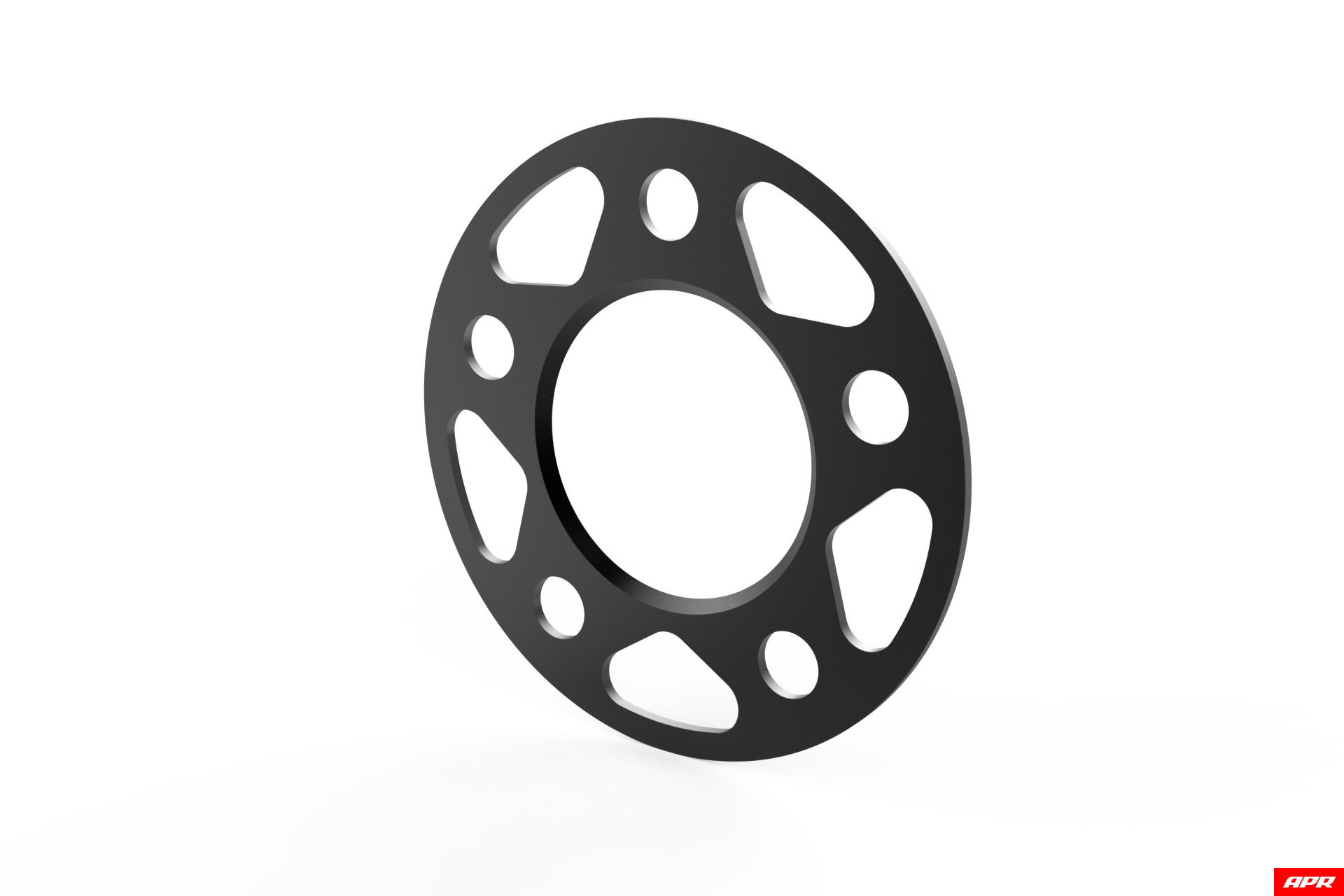

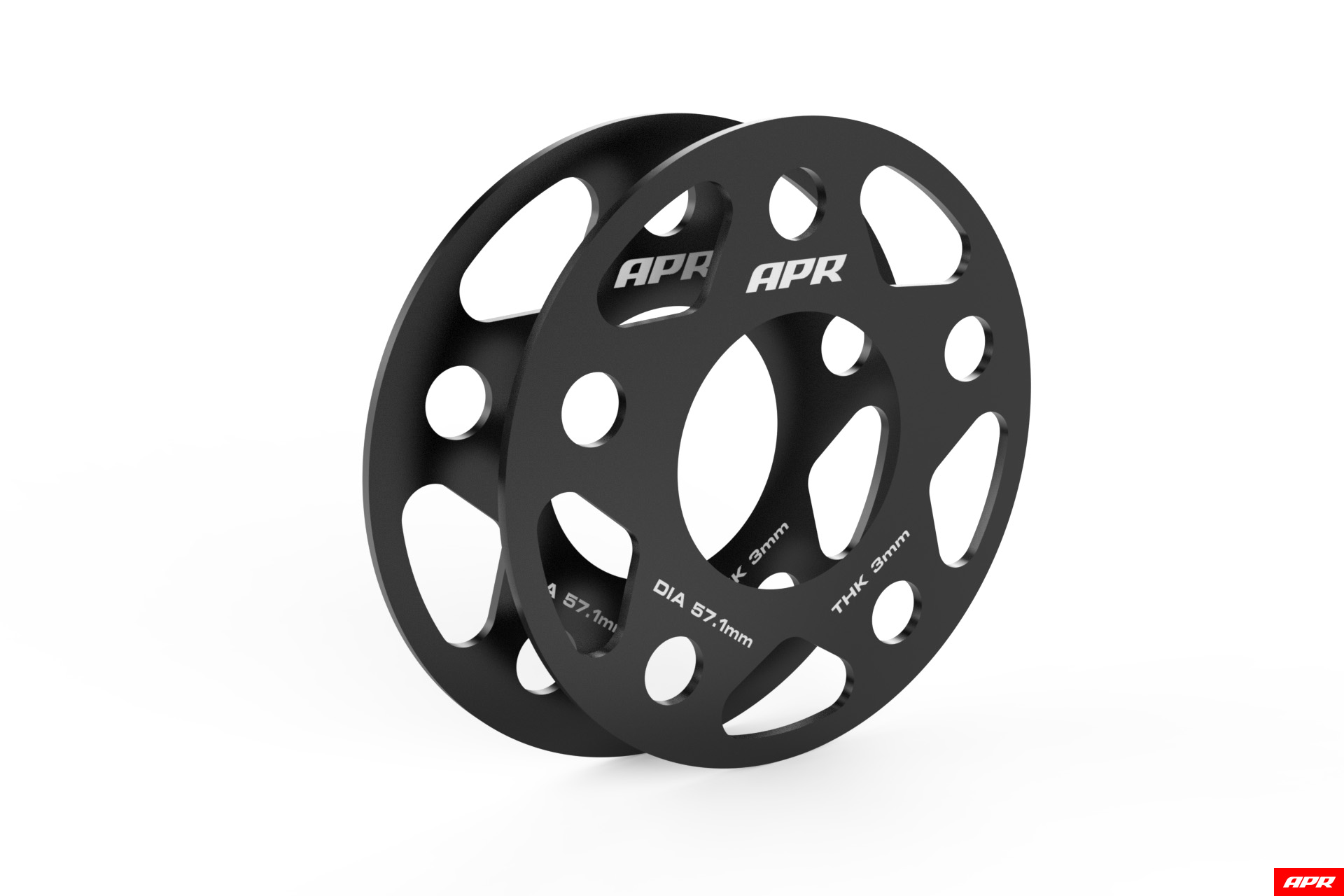

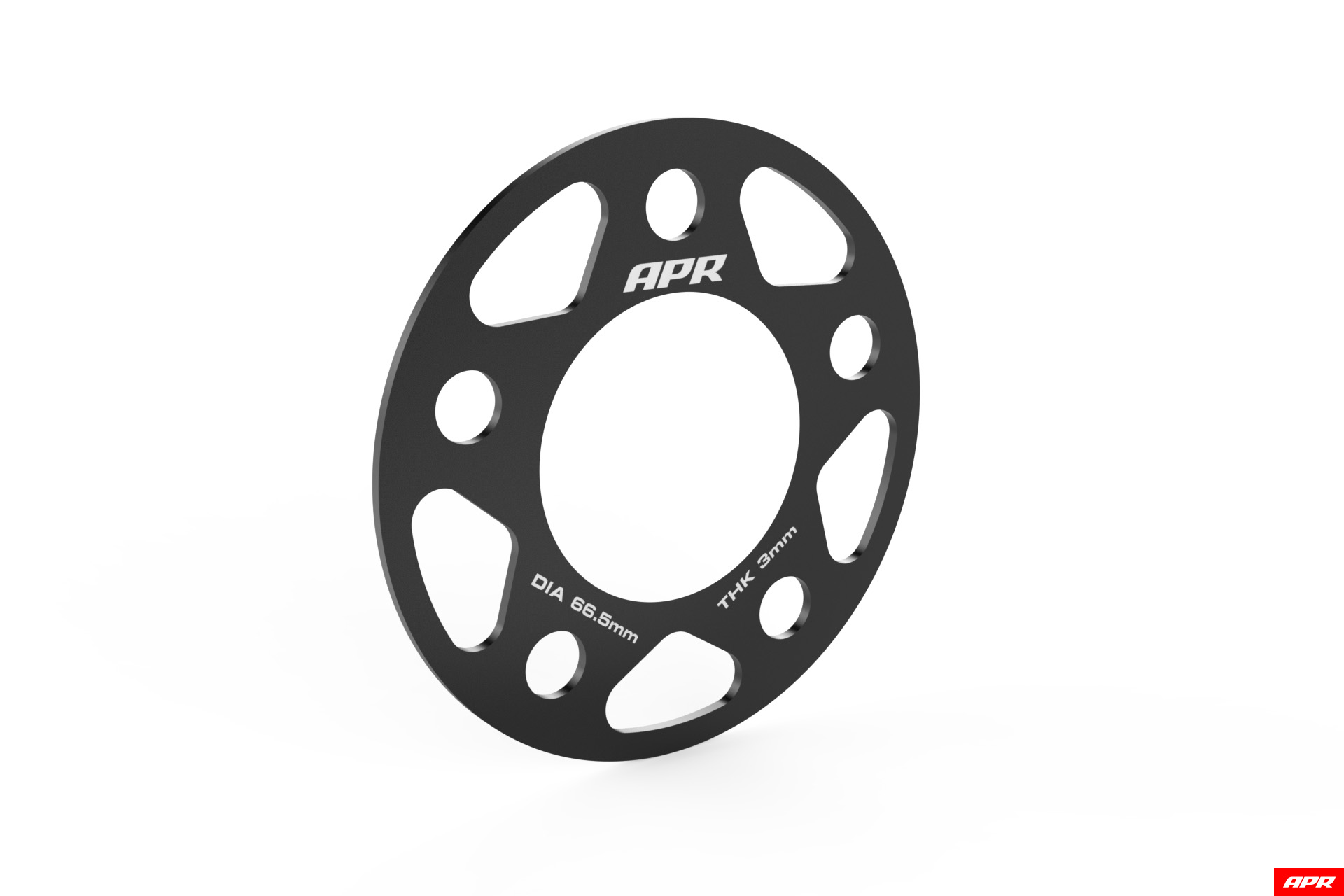

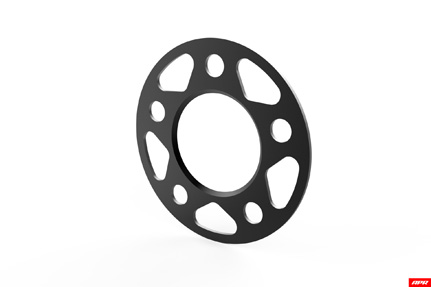

3mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore

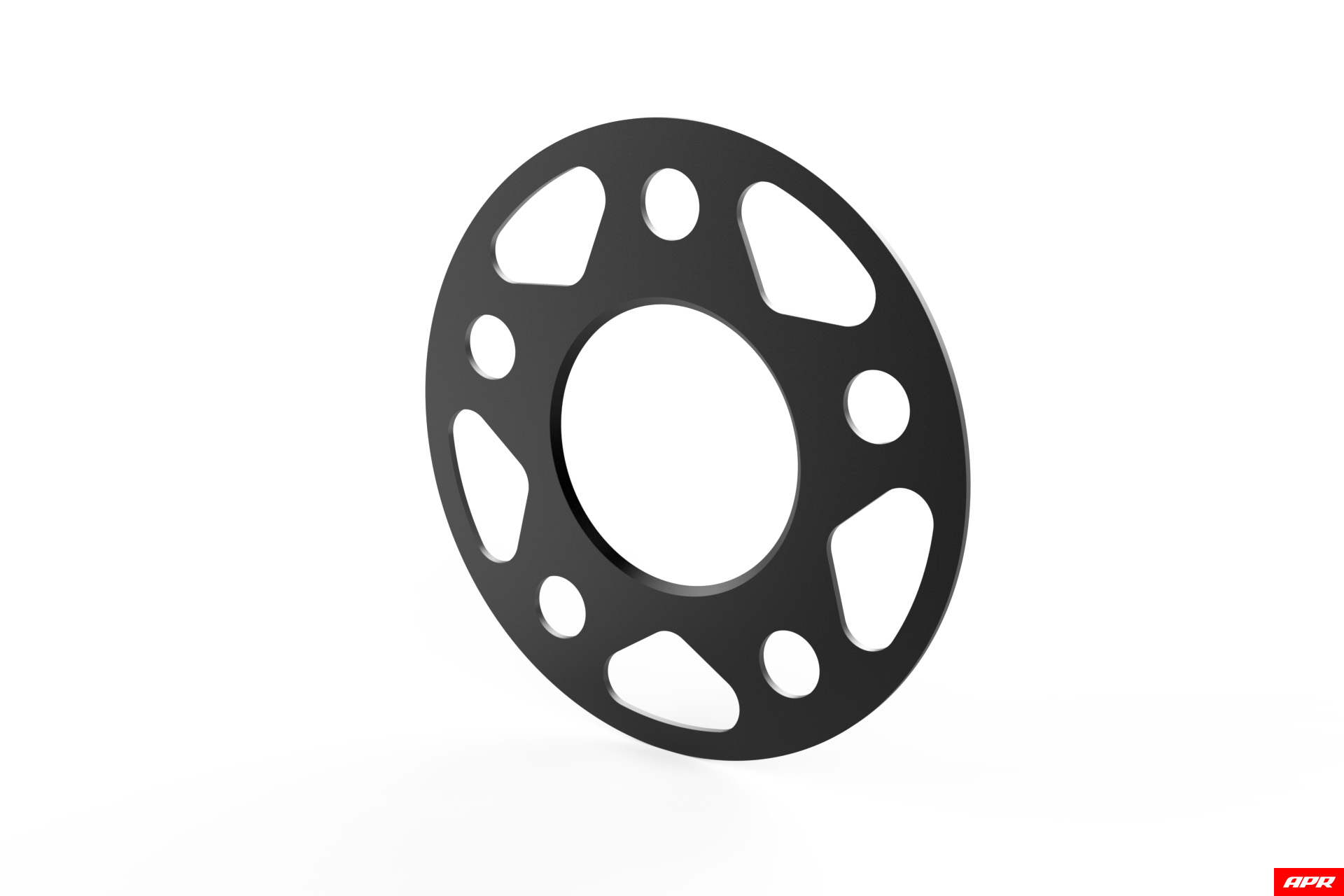

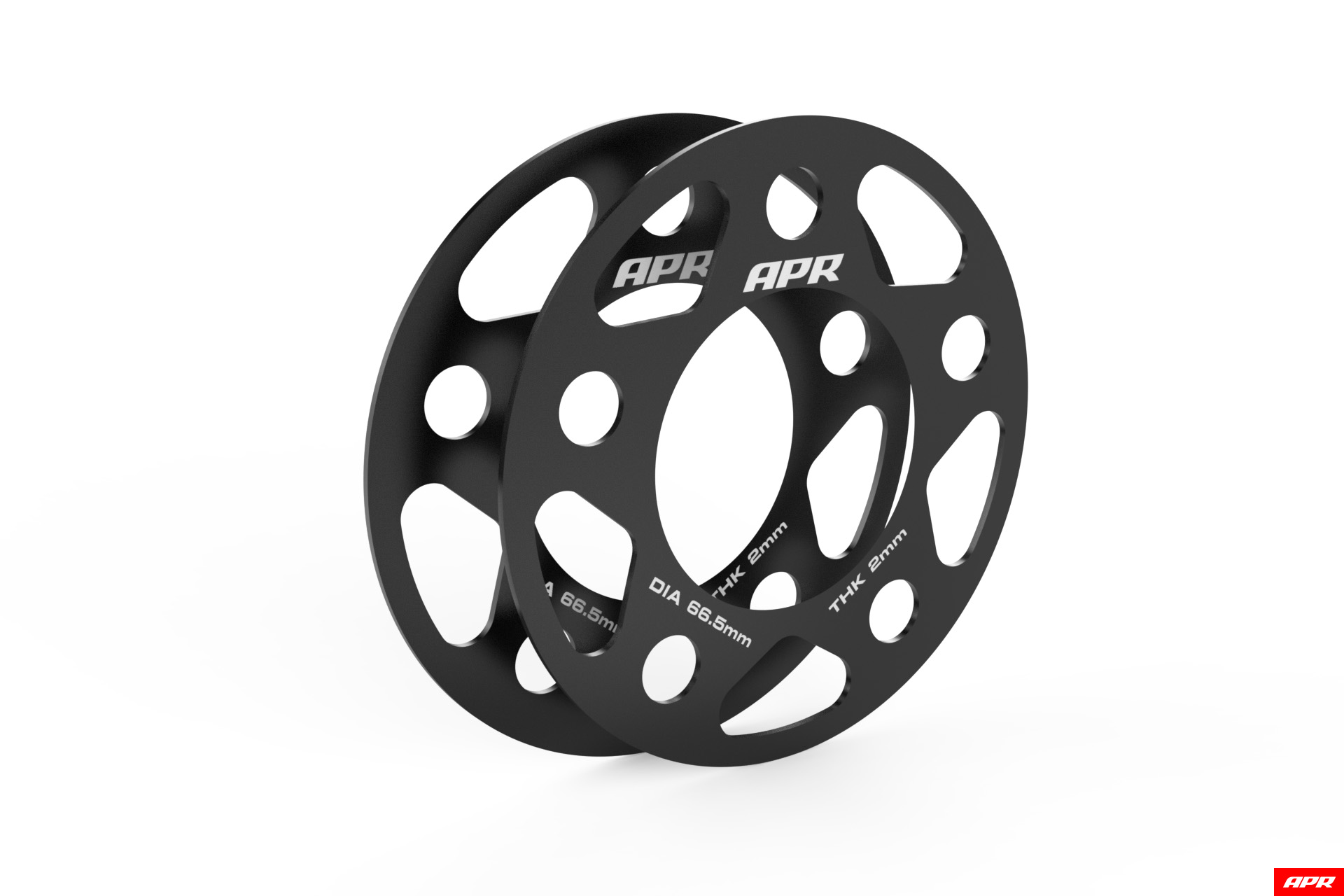

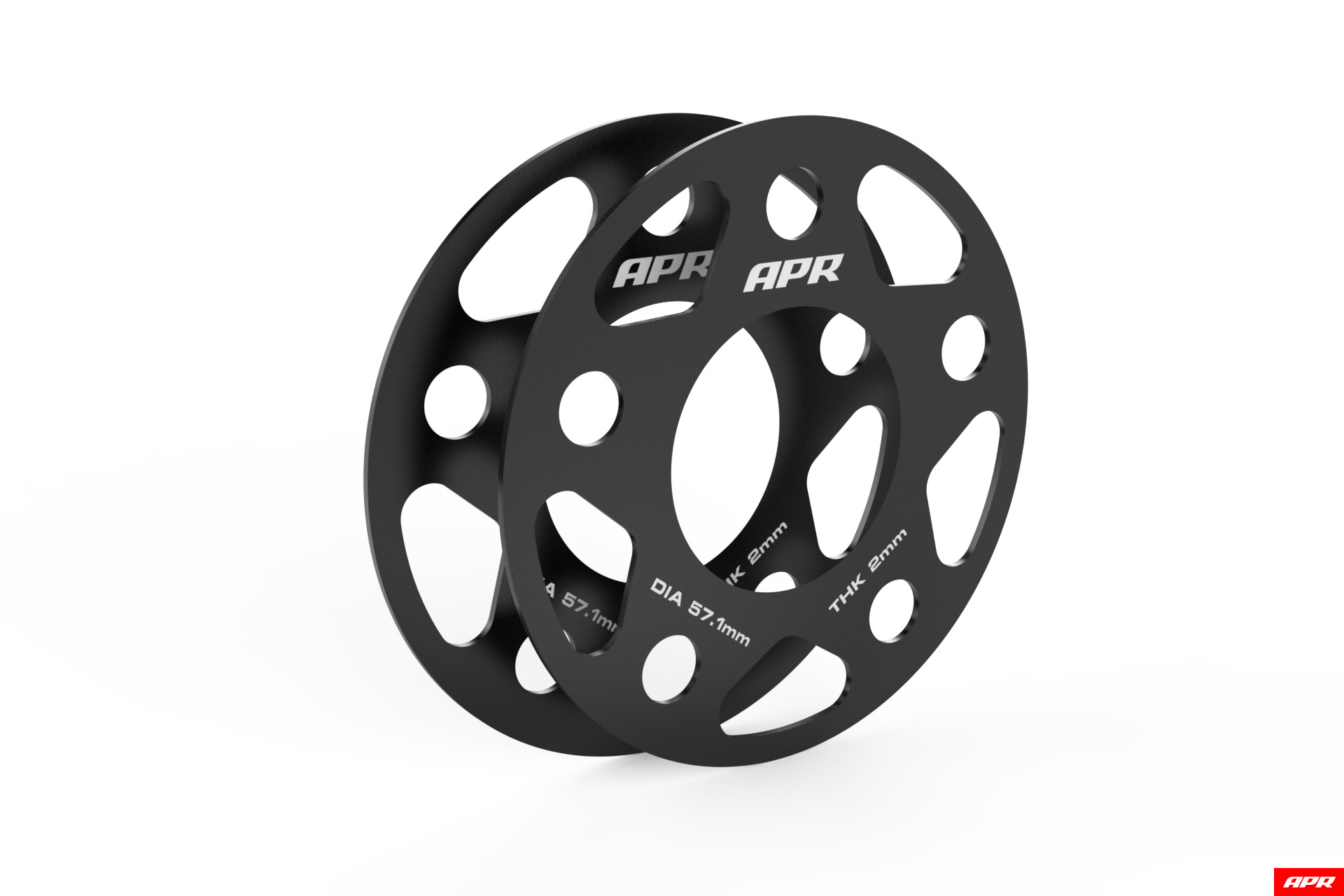

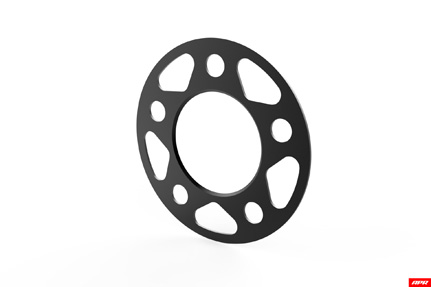

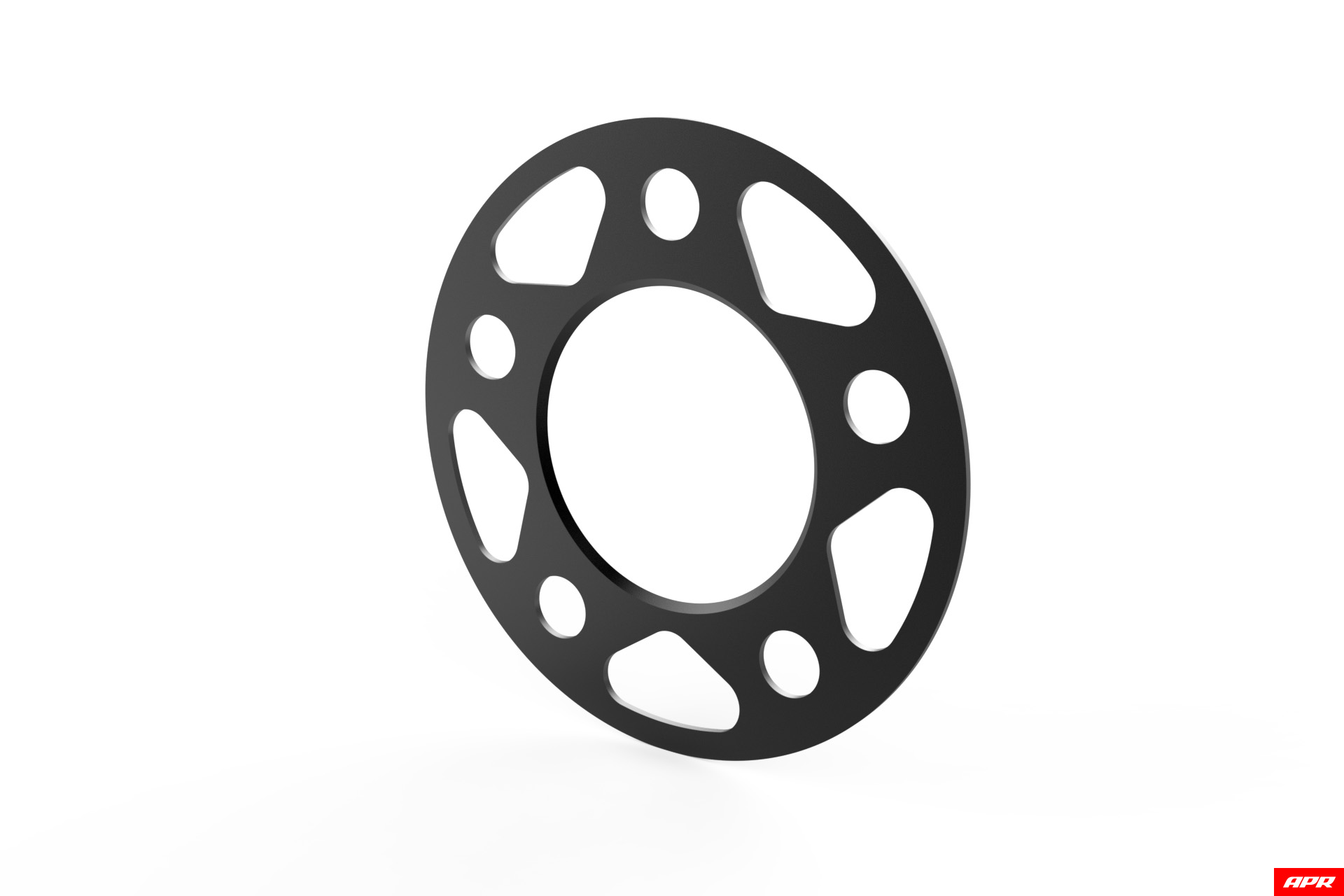

2mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore

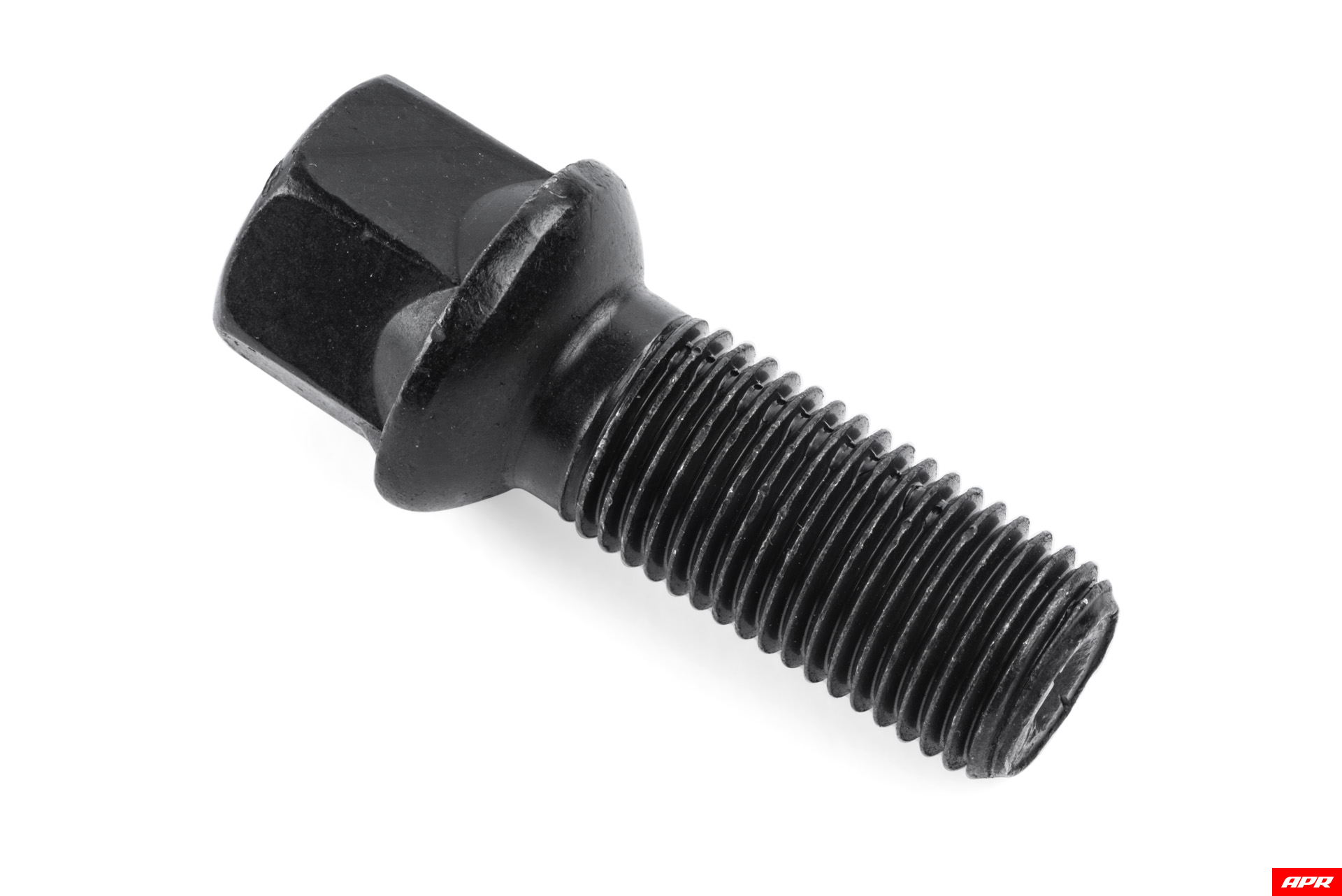

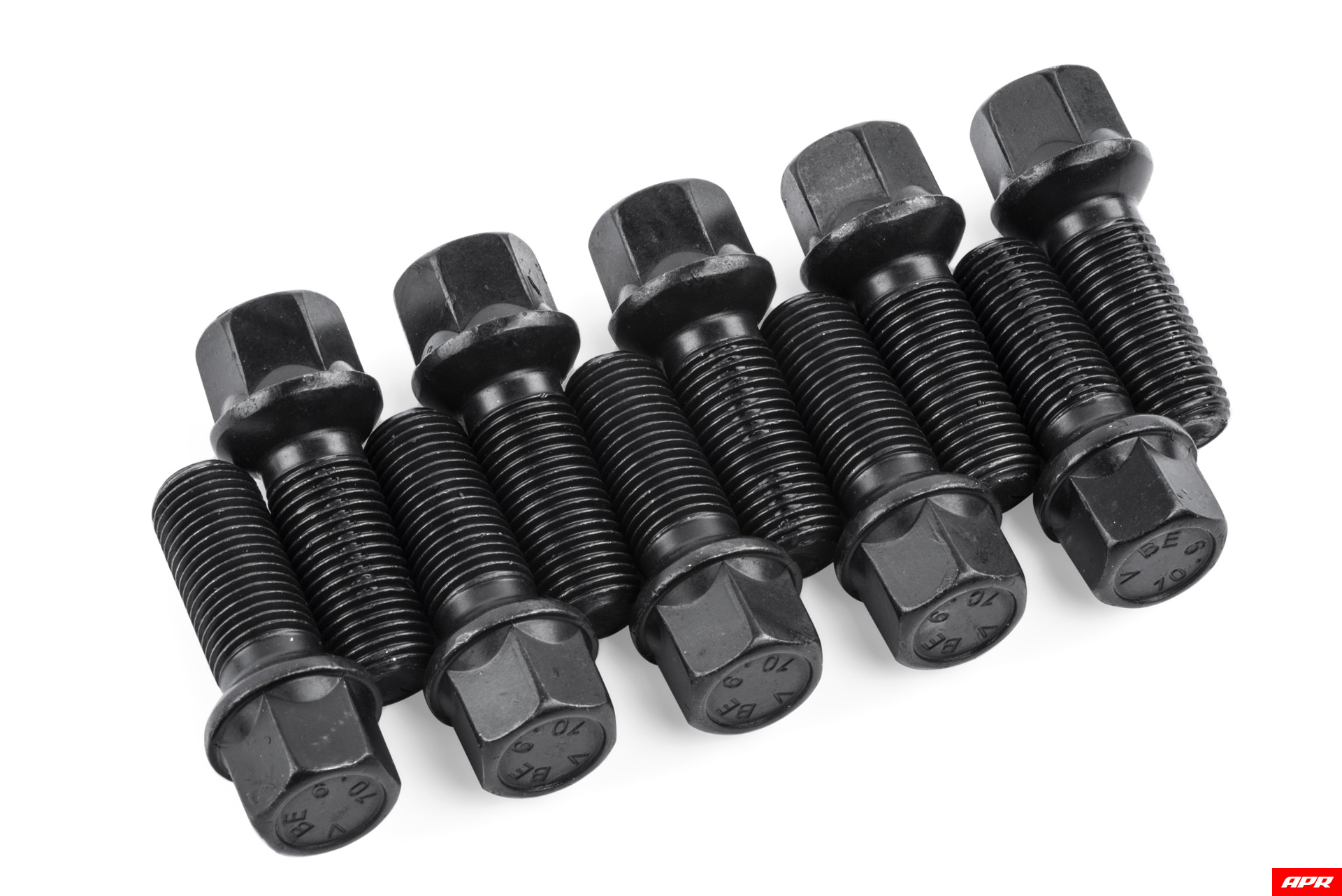

Lug Bolts (7 sizes)
| Part Number | Size | Spacer |
|---|---|---|
| MS100171 | 27mm | OEM Size No Spacer |
| MS100172 | 30mm | 2mm & 3mm Spacer |
| MS100173 | 32mm | 4mm & 5mm Spacer |
| MS100174 | 35mm | 6mm, 7mm & 8mm Spacer |
| MS100175 | 37mm | 10mm Spacer |
| MS100176 | 40mm | 12mm Spacer |
| MS100177 | 45mm | 15mm Spacer |
| Product | Quantity | Part Number | Price Exc. VAT | Price Inc. VAT | |
|---|---|---|---|---|---|
| APR Spacers - 57.1mm CB - 2mm Thick | Set of 2 | MS100149 | £55.55 | £66.66 | |
| APR Spacers - 57.1mm CB - 3mm Thick | Set of 2 | MS100150 | £56.68 | £68.02 | |
| APR Spacers - 57.1mm CB - 4mm Thick | Set of 2 | MS100151 | £57.80 | £69.36 | |
| APR Spacers - 57.1mm CB - 5mm Thick | Set of 2 | MS100152 | £58.95 | £70.74 | |
| APR Spacers - 57.1mm CB - 6mm Thick | Set of 2 | MS100153 | £60.07 | £72.08 | |
| APR Spacers - 57.1mm CB - 7mm Thick | Set of 2 | MS100154 | £61.22 | £73.46 | |
| APR Spacers - 57.1mm CB - 8mm Thick | Set of 2 | MS100155 | £62.33 | £74.80 | |
| APR Spacers - 57.1mm CB - 10mm Thick | Set of 2 | MS100156 | £90.68 | £108.82 | |
| APR Spacers - 57.1mm CB - 12mm Thick | Set of 2 | MS100157 | £96.89 | £116.27 | |
| APR Spacers - 57.1mm CB - 15mm Thick | Set of 2 | MS100158 | £103.43 | £124.12 | |
| APR Spacers - 66.5mm CB - 2mm Thick | Set of 2 | MS100159 | £55.55 | £66.66 | |
| APR Spacers - 66.5mm CB - 3mm Thick | Set of 2 | MS100160 | £56.68 | £68.02 | |
| APR Spacers - 66.5mm CB - 4mm Thick | Set of 2 | MS100161 | £57.80 | £69.36 | |
| APR Spacers - 66.5mm CB - 5mm Thick | Set of 2 | MS100162 | £58.95 | £70.74 | |
| APR Spacers - 66.5mm CB - 6mm Thick | Set of 2 | MS100163 | £60.07 | £72.08 | |
| APR Spacers - 66.5mm CB - 7mm Thick | Set of 2 | MS100164 | £61.22 | £73.46 | |
| APR Spacers - 66.5mm CB - 8mm Thick | Set of 2 | MS100165 | £62.33 | £74.80 | |
| APR Spacers - 66.5mm CB - 10mm Thick | Set of 2 | MS100166 | £90.68 | £108.82 | |
| APR Spacers - 66.5mm CB - 12mm Thick | Set of 2 | MS100167 | £96.89 | £116.27 | |
| APR Spacers - 66.5mm CB - 15mm Thick | Set of 2 | MS100168 | £103.43 | £124.12 | |
| APR Lug Bolts - 27mm | Set of 10 | MS100171 | £34.00 | £40.80 | |
| APR Lug Bolts - 30mm | Set of 10 | MS100172 | £35.15 | £42.18 | |
| APR Lug Bolts - 32mm | Set of 10 | MS100173 | £36.25 | £43.50 | |
| APR Lug Bolts - 35mm | Set of 10 | MS100174 | £37.40 | £44.88 | |
| APR Lug Bolts - 37mm | Set of 10 | MS100175 | £38.54 | £46.25 | |
| APR Lug Bolts - 40mm | Set of 10 | MS100176 | £39.66 | £47.59 | |
| APR Lug Bolts - 45mm | Set of 10 | MS100177 | £40.81 | £48.97 |
