APR Transverse 2.0 TFSI Valvelift K04 Turbocharger System
APR's Transverse 2.0 TFSI Valvelift K04 Turbocharger System will upgrade your current factory rated 211hp and 258lb-ft engine with all of the necessary OEM components from Audi TT-S and meticulously recalibrated Engine Management to produce 346 horsepower and 377lb-ft of torque on 98 octane gas.
Reliability, drivability, stealth and enhanced performance that cannot be bested are the highlights of APR's newest OEM-component based conversion package.
APR's engineers have expertly recalibrated the engine management system to allow for nearly flat torque delivery from 2000 RPM to 5000 RPM which results in a smooth linear pull throughout the power band. Keeping the track enthusiast in mind, this conversion package will not result in overpowering of the driveline but will allow for smooth acceleration to easily maintain control while cornering.
APR Modified K04 Compressor Cover
The Borg Warner K04 turbocharger selected by VAG engineers is perfectly sized for the 2.0 liters of displacement to allow for stout horsepower numbers as the RPMs increase with no dramatic fall off as redline approaches. This ensures plenty of power in the high RPMs for continued acceleration in the straights and positioning at the healthiest portion of the power band after corner exit.
Compact, Stealthy & Reliable Design
One of the greatest benefits to the APR K04 turbocharger system is its simple, yet elegant design. APR's CNC machined direct compressor recirculation port on the OEM compressor cover significantly reduces engine bay clutter and saves the end user from the hidden costs of purchasing extra throttle body pipes, hoses, clamps and DV mounts for recirculating boost pressure. The compact design also removes extra charge piping volume to allow for lightning fast boost response and less locations for boost leaks. Furthermore, charge air pressure is directed directly at the compressor wheel which helps keep the turbo spooled upon lifting the throttle, minimizing turbo lag.

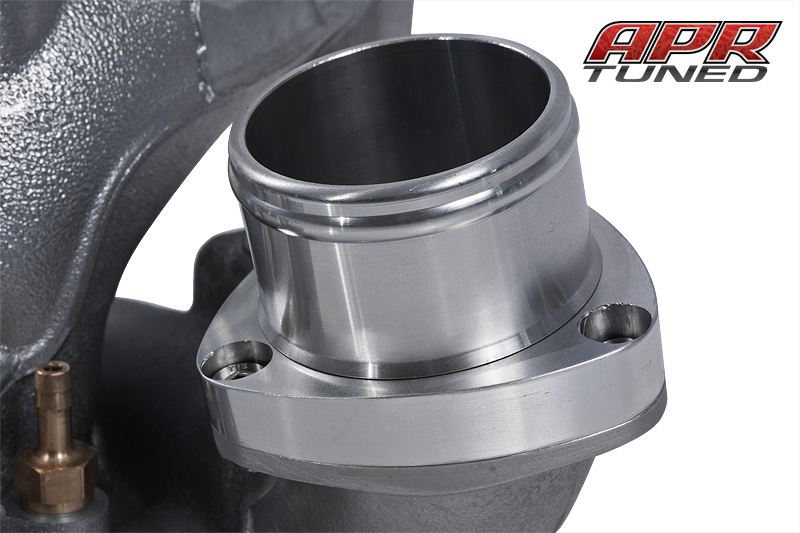

The OEM k04 turbocharger features a turbo muffler designed to reduce turbocharger sound in the cabin that also creates a restriction in the boost pressure delivery stream. APR removes the turbo muffler not only to enhance the sound of the turbocharger, but also to smooth the airflow across the previously baffled muffler section. A clean and simple CNC flange developed by APR's Engineering Team is bolted directly to the compressor cover in place of the OEM turbo muffler. A long mounting surface provides an excellent slip proof surface for mounting the silicon discharge hose and an o-ring between the flanges ensures a life of leak proof operation.

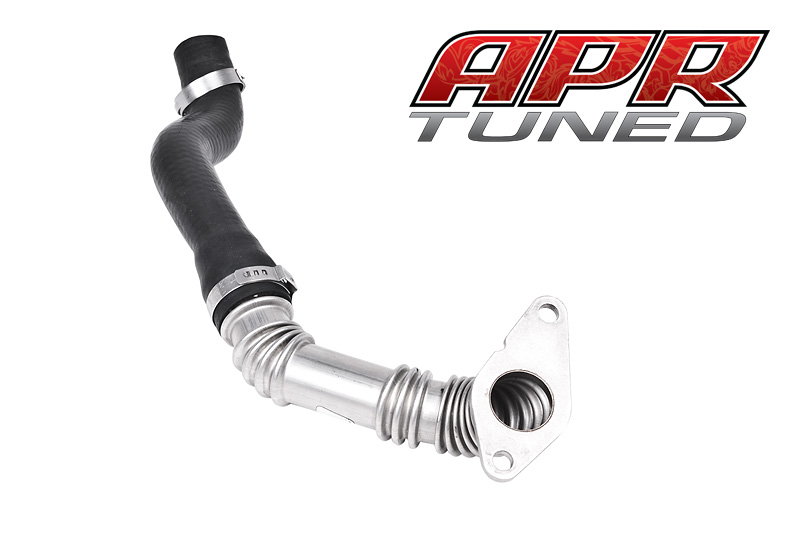

The 2.0T Valvelift engine requires a longer PCV outlet hose for proper connection to the APR K04 Turbocharger System. APR has developed a high temperature hose solution to ensure proper PCV routing on the Valvelift without headaches. The design is clean and simple and never requires maintenance. Just remember to pick up this extra part when ordering below.
APR's EMCS Technology
Featuring APR's EMCS program switching functionality and DirectPort Programming, APR's Engine Management Calibration for this conversion package allows for a range of Octane and situation specific calibrations to be installed simultaneously on your vehicle's ECU. These programs and features are able to be cycled through via your existing factory cruise control and activated in less than 20 seconds. You will be able to choose 1 to 4 Programs listed below. You will also be able to add APR Security Lockout, APR Fault Code Erase and APR Anti-Theft features.

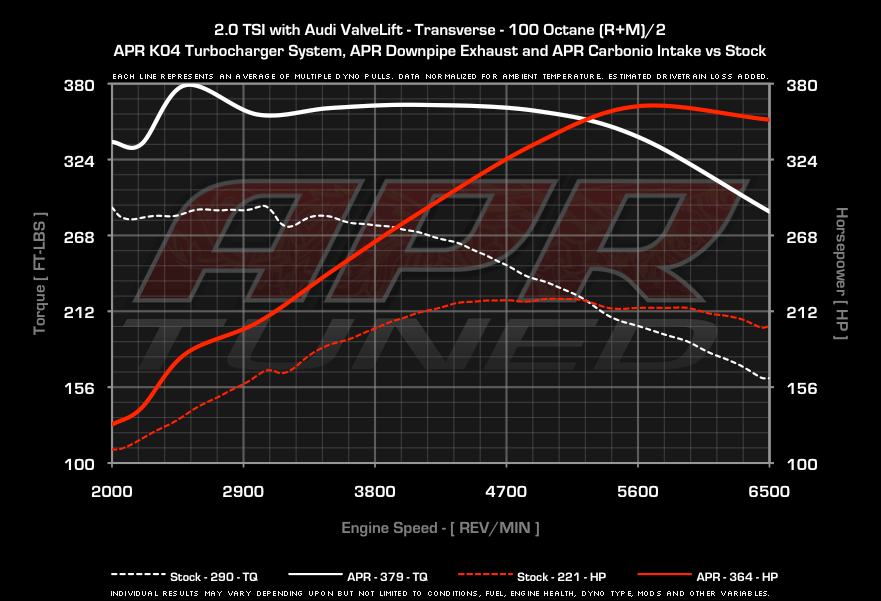

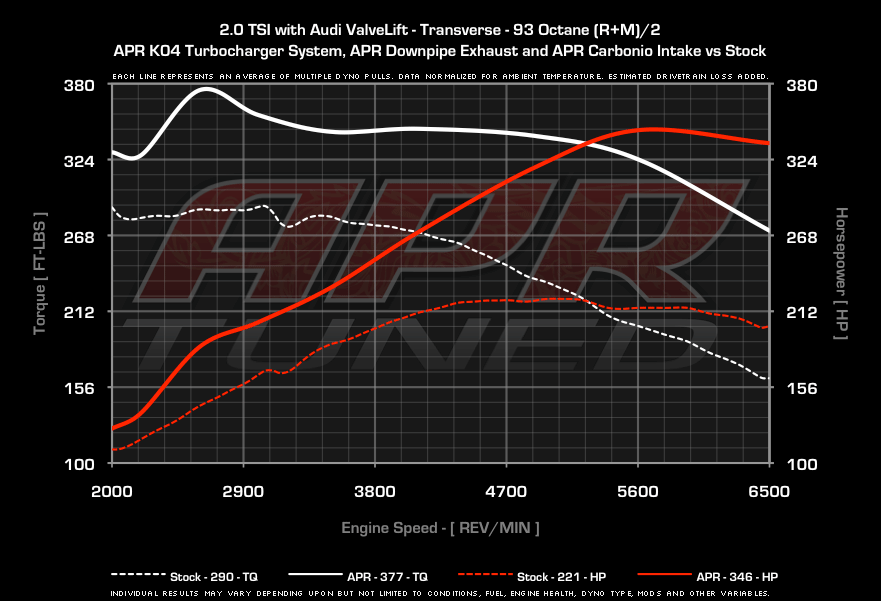

| Program Mode* | Peak HP | Peak TQ | Largest HP Gain Over Stock | Largest TQ Gain Over Stock | Speed Limit |
|---|---|---|---|---|---|
| *It is essential to ensure your vehicle is filled with at least the minimum octane rating for each Performance Calibration when activating the program. | |||||
| ¹Figures measured using APR Carbonio intake, APR Intercooler, and APR Downpipe Exhaust System. | |||||
| Stock - As reported by VW/Audi | 211 HP | 258 LB-FT | - | - | Limited |
| Stock - As measured by APR | 221 HP | 290 LB-FT | - | - | Limited |
| APR 95 RON | xxx HP | xxx LB-FT | xxx HP @ xxxx RPM | xxx LB-FT @ xxxx RPM | Unlimited |
| APR 98 RON¹ | 346 HP | 377 LB-FT | 135 HP @ 6500 RPM | 125 LB-FT @ 5450 RPM | Unlimited |
| APR 104 RON | 364 HP | 379 LB-FT | 152 HP @ 6500 RPM | 141 LB-FT @ 5400 RPM | Unlimited |
| APR Valet | Limited Output | Limited Output | Limited Output | Limited Output | 70 MPH |
Components
APR provides all hardware and software needed to ensure a complete install. All items which can be preassembled on the turbocharger come preassembled by APR. The APR K04 turbocharger system consisting of the following:
- APR EMCS Software
- APR Modified OEM K04 Turbocharger with Billet Compressor Wheel, Stainless Steel Exhaust Manifold, N75 Solenoid and Wastegate Actuator
- APR CNC Turbo Outlet Flange
- APR Turbo to Turbo Outlet Flange O-Ring
- APR Turbo to Turbo Outlet Screws (3x)
- APR Turbo Outlet Silicon Hoses
- APR Turbo Outlet Hose Clamps (2x)

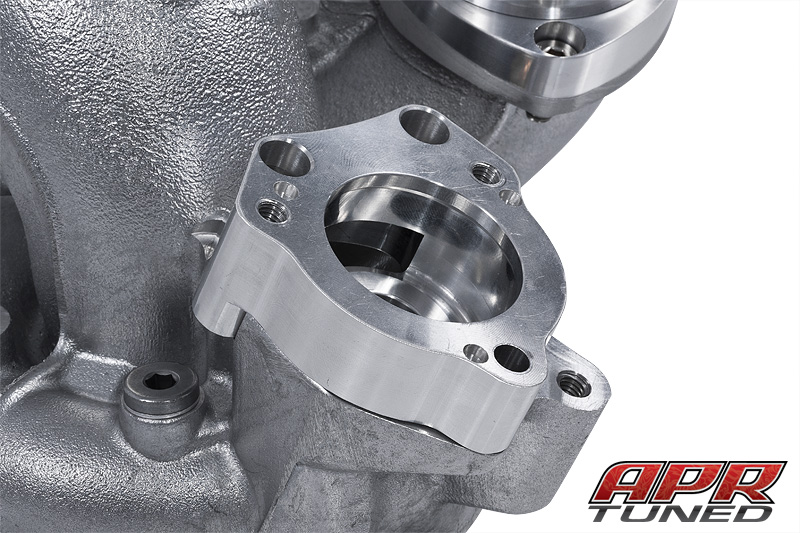

- APR CNC Compressor Cover DV Mounting Flange
- APR Turbo to DV Mounting Flange O-Rings (2x)
- APR Turbo to DV Mounting Flange Screws (3x)
- OEM DV Mounting Screws (3x)
- OEM DV Mounting Screw Lock Washers (3x)
- APR Laser Cut PCV Port Cover
- APR PCV Port Cover Gasket
- OEM PCV Port Cover Screws (2x)
- OEM PCV Port Cover Screw Lock Washers (2x)
- OEM Turbo Manifold Gasket
- OEM Turbo Manifold Nuts (4x)
- OEM Downpipe Studs (4x)
- OEM Downpipe Nuts (4x)
- OEM Downpipe Gasket
- OEM EVAP Line One Time Use Hose Clamps (3x)
- OEM Oil Return Line Gasket (2x)
- OEM Oil Feed Line Washers (2x)
- OEM Coolant Feed Line Washers (2x)
- OEM Coolant Return Line Washers (2x)
Stealthy OEM Appearance
APR's S3 K04 Turbocharger Conversion System is constructed from OEM parts and appears OEM. It's easy to install and 100% reversible. Every OEM part is fully Plug and Play:
- Exhaust (Upgrade Highly Recommended)
- Intercooler (Upgrade Highly Recommended)
- Intake (Upgrade Highly Recommended)
- Diverter Valve
- Positive Crankcase Ventilation Lines
- EVAP Lines
- Coolant Lines
- Oil Lines
- Turbo Support Brace

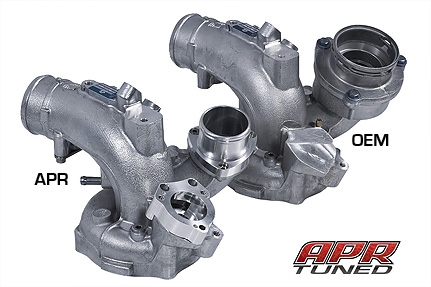

APR K04 Compressor Cover vs
OEM K04 Compressor Cover
Installation can be performed at APR Dealers and all parts necessary for the installation except for fluids are included. For best results APR highly recommends the APR Downpipe Exhaust System, APR Carbonio Intake System and APR Intercooler System.
The APR K04 Turbocharger System REQUIRES the Valvelift PCV Hose.
| Vehicle | Engine | Transmission | Drivetrain | Part Number | Price Exc. VAT | Price Inc. VAT | |
|---|---|---|---|---|---|---|---|
| ²Learn about the APR Turbocharger Loyalty Program Here | |||||||
| ¹This system REQUIRES the Valvelift PCV Hose listed below. | |||||||
| Audi TT MKII¹ | 2.0 TFSI with Audi Valvelift | 6MT & S-Tronic | FWD & Quattro | T2100010 | £2895.90 | £3475.08 | |
| Description | Part Number | Price Exc. VAT | Price Inc. VAT | |
|---|---|---|---|---|
| APR Valvelift PCV Hose | MS100034 | £174.75 | £209.70 |
Software is included with the APR K04 Turbocharger System, but for people piecing together their own system, software is available.
Turbocharger Loyalty Program
We’re pleased to announce the turbocharger upgrade path just got a little easier little for our loyal APR customers. If you’ve purchased an APR ECU Upgrade and want to upgrade to one of our turbocharger systems, you can take advantage of fantastic savings! It’s our way of saying “thank you” for enjoying our ECU Upgrades before stepping up to the big leagues! To see the savings, look over the pricing tiers below. Pricing also includes a fully loaded APR ECU, where applicable!
| Stage | Minimum Requirements | Price Exc. VAT | Price Inc. VAT | |
|---|---|---|---|---|
| IMPORTANT PRICING AND AVAILABILITY DETAILS: | ||||
| - Availability and ECU Compatibility: Stages, programs, and features may not be available for all ECUs. | ||||
| - ECU Revision Notice: Multiple ECU revisions exist for each platform. APR software may be temporarily unavailable when factory updates are applied. An APR dealer can check availability in person, or over the phone if the ECU boxcode/revision is known. | ||||
| APR KO4 ECU Upgrade (Existing APR ECU Upgrade Customer) | APR K04-64 Turbocharger and See Requirements and Recommendations Above | £0.00 | Please Call | |
| APR KO4 ECU Upgrade (New APR ECU Upgrade Customer) | APR K04-64 Turbocharger and See Requirements and Recommendations Above | £0.00 | Please Call | |
Motul Oil, Coolant and Oil Filter
To learn more about Motul, visit our Motul Portal
Part of the APR Turbocharger System install process requires removal of the OEM Turbocharger. During this process, oil and coolant must be drained and should be replaced to offer superior performance and protection. The APR Turbocharger Systems are now complete turn key solutions, including everything you need down to the oil, coolant and oil filter. During checkout you'll be given the option between Motul Specific 502.00, 505.00 & 505.01 5W40 or Motul Power 300V engine oil as well as Motul Inugel Optimal Ultra Coolant and an OEM oil filter. The Premium Motul lubricant package is included at a much lower than retail price point and the costs are listed below.
| Description | Part Number | Price |
|---|---|---|
| Please Locate an APR Importer for Motul Package Details | ||
How to purchase
Please use the APR Dealer Locater Tool to locate an APR Dealer, confirm availability and schedule an appointment.
Please note vehicle manufacturers issue many ECU part numbers and revisions throughout their vehicle lineup. As such, some ECUs may be temporarily unavailable as new parts and/or revisions are released. If the vehicle’s ECU part number and revision is known, availability can be checked at any APR Dealer.
