APR ROLL-CONTROL LOWERING SPRINGS - MK7 / MK7.5 GTI

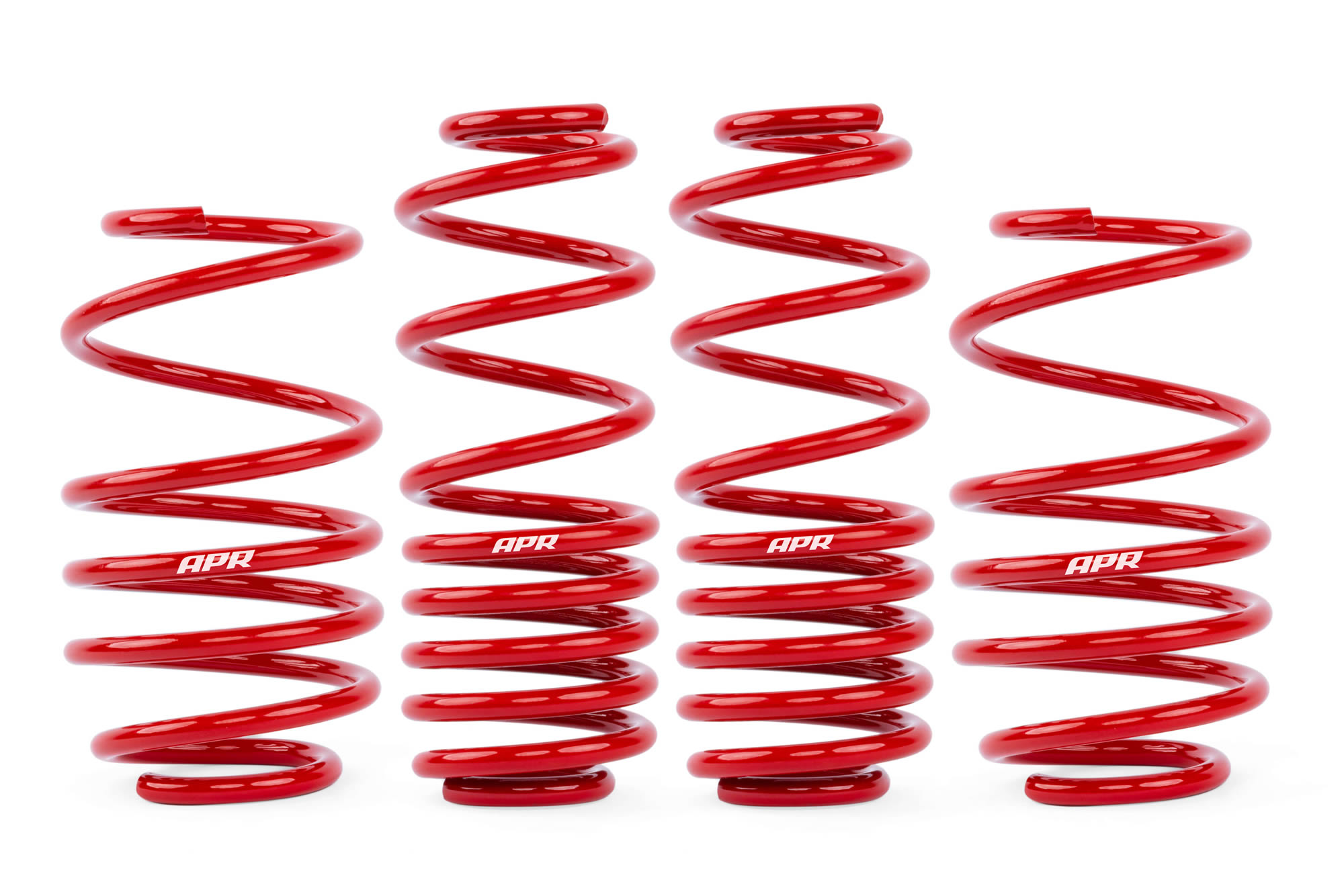

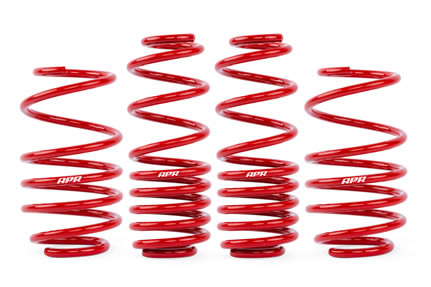

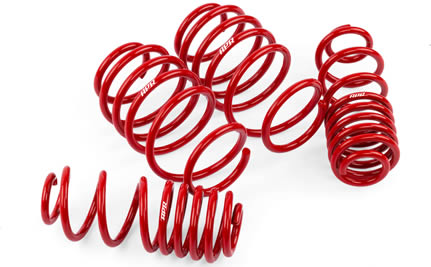

engineAPR Roll-Control Lowering Springs greatly improve the looks and handling of your Volkswagen MK7 / MK7.5 GTI without greatly sacrificing comfort or your wallet! Designed for use with DCC or Non-DCC dampers, our performance lowering springs are a direct plug-and-play upgrade that offer a lower center of gravity and increased spring rates to reduce body roll.

Many lowering springs on the market today simply lower your vehicle and give a false sense of improvement by feeling overly stiff. We took a different approach with our design. We extensively track and street tested several iterations to deliver a system that not only makes your GTI look great, but does so while delivering a comfortable experience that doesn't constantly compress and ride on the bump stops or crash and bottom out the dampers. Through a proper ride height configuration, we're able to greatly increase spring rates for improved handling, but do so without leaving the ride harsh, bouncy, and uncomfortable. Your GTI will be planted with a minimal impact on comfort. It's a system you'll love the second you're behind the wheel!

These springs were designed in house and manufactured in the USA using a premium high tensile chrome silicon steel for excellent resilience against sagging and failure for years to come. Each spring comes powder coated in our signature red color, further protecting the spring from the elements. The front and rear springs are a dual rate spring that will operate as a single rate, linear spring, under normal loaded driving situations. All center of wheel to fender (CF) measurements were recorded on our in-house US Spec 2017 MK7 GTI (Non-DCC) and US Spec 2018 MK7.5 GTI (DCC) test vehicles and may vary slightly from vehicle to vehicle. Lastly, while this system was designed specifically for the MK7 / MK7.5 GTI, it will fit other similar platform vehicles.


Features and benefits

  • Delivers up to 519-551 HP with 360-377 FT-LBS depending on octane
  • Lowers 22 mm or -0.87 in Front / 37 mm or -1.46 in Rear (DCC)
  • Lowers 18 mm or -0.71 in Front / 32 mm or -1.26 in Rear (Non-DCC)
  • Increases Spring Rate 50% or +108 lbs/in at 323 lbs/in Front / 60% or +136 lbs/in at 362 lbs/in Rear (DCC)
  • Increases Spring Rate 76% or +139 lbs/in at 323 lbs/in Front / 45% or +112 lbs/in at 362 lbs/in Rear (Non-DCC)
  • Dual Rate Spring (185 lbs/in to 362 lbs/in Front)
  • Dual Rate Spring (155 lbs/in to 323 lbs/in Rear)
  • Operates as a single rate “linear” spring during loaded usage
  • Greatly improves vehicles stance and appearance
  • Remains comfortable on the street
  • Lowers the vehicle’s center of gravity
  • Reduces body roll
  • Improves handling
  • Does not easily bottom out dampers
  • Does not constantly compress or ride on the OEM progressive bump stops
  • Designed for use with DCC and Non-DCC OEM dampers
  • Direct plug-and-play
  • Made from a high tensile chrome silicon steel that resists sagging and failure
  • Powder coated red finish protects springs from corrosion
  • Made in the USA
Coilovers Coilovers Coilovers

Specifications:

US 2018 MK7.5 GTI (DCC) Front:
362 mm (OEM) vs 340 mm (APR) or a 22 mm reduction in CF Height 215 lbs/in (OEM) vs 323 lbs/in (APR) or a 50% increase in Spring Rate

US 2018 MK7.5 GTI (DCC) Rear:
370 mm (OEM) vs 333 mm (APR) or a 37 mm reduction in CF Height 226 lbs/in (OEM) vs 362 lbs/in (APR) or a 60% increase in Spring Rate

US 2017 MK7 GTI (Non-DCC) Front:
368mm (OEM) vs 350 mm (APR) or a 18 mm reduction in CF Height 184 lbs/in (OEM) vs 323 lbs/in (APR) or a 76% increase in Spring Rate

US 2017 MK7 GTI (Non-DCC) Rear:
367 mm (OEM) vs 335 mm (APR) or a 32 mm reduction in CF Height 250 lbs/in (OEM) vs 362 lbs/in (APR) or a 45% increase in Spring Rate.

Applications:
Measurement OEM APR Difference Location Vehicle
CF Height 362 MM 340 MM -22 MM FRONT US 2018 MK7.5 GTI (DCC)
CF Height 370 MM 333 MM -37 MM REAR US 2018 MK7.5 GTI (DCC)
CF Height 368 MM 350 MM -18 MM FRONT US 2017 MK7 GTI (NON-DCC)/td>
CF Height 367 MM 335 MM -32 MM REAR US 2017 MK7 GTI (NON-DCC)
Spring Rate 215 LBS/IN 323 LBS/IN +108 LBS/IN OR 50% FRONT US 2018 MK7.5 GTI (DCC)
Spring Rate 226 LBS/IN 362 LBS/IN +136 LBS/IN OR 60% REAR US 2018 MK7.5 GTI (DCC)
Spring Rate 184 LBS/IN 323 LBS/IN +139 LBS/IN OR 76% FRONT US 2017 MK7 GTI (NON-DCC)
Spring Rate 250 LBS/IN 362 LBS/IN +112 LBS/IN OR 45% REAR US 2017 MK7 GTI (NON-DCC)
