APR 3.0 TFSI Supercharger Drive and Crank Pulley Upgrades

More Horsepower

More Torque

57.75 mm Supercharger Drive Pulley

187 mm Supercharger Crank Pulley

500+ APR Dealers World-Wide

Supercharger Pulleys

APR presents the 3.0 TFSI Supercharger Drive and Crank Pulley Upgrades.

APR’s Supercharger Drive and Crank Pulley Upgrades dramatically increase horsepower and torque by increasing the rotational speed of the factory supercharger. APR’s Stage II Pulley ECU Upgrade makes the necessary engine management adjustments to handle the increased supercharger speeds, and in turn allows the engine to create more power. The pulleys are sold separately, allowing for multiple levels of performance, each of which builds upon the other. Finally, when combined with APR’s Ultracharger Throttle Body Upgrade in a dual pulley setup, the system is alleviated of power robbing inlet restrictions, allowing the engine to achieve exciting new levels of performance!

Pulley Pulley

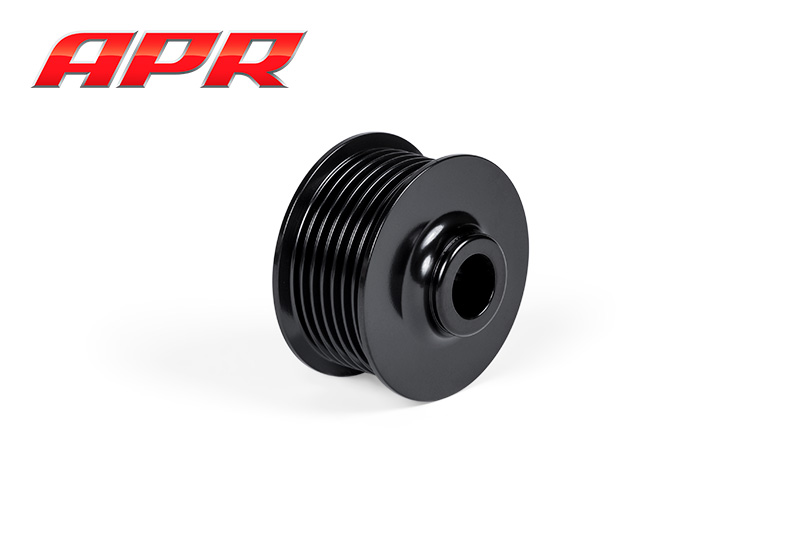

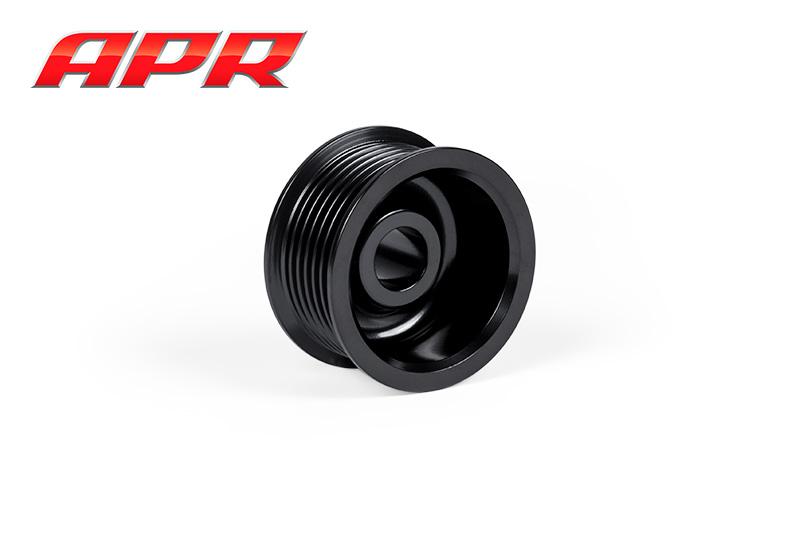

APR Supercharger Drive Pulley Upgrade

Supercharger Pulley Supercharger Pulley

APR’s Supercharger Drive Pulley Upgrade decreases the diameter of the factory pulley from ~63.25mm to 57.75mm, which in turn spins the supercharger ~9.5% faster. This results in a healthy bump in horsepower and torque across the entire RPM range with the supercharger operating at a higher rate of speed. The pulley is CNC machined from billet stainless steel, e-coated black for an OEM appearance and is press fitted to the factory supercharger unit.

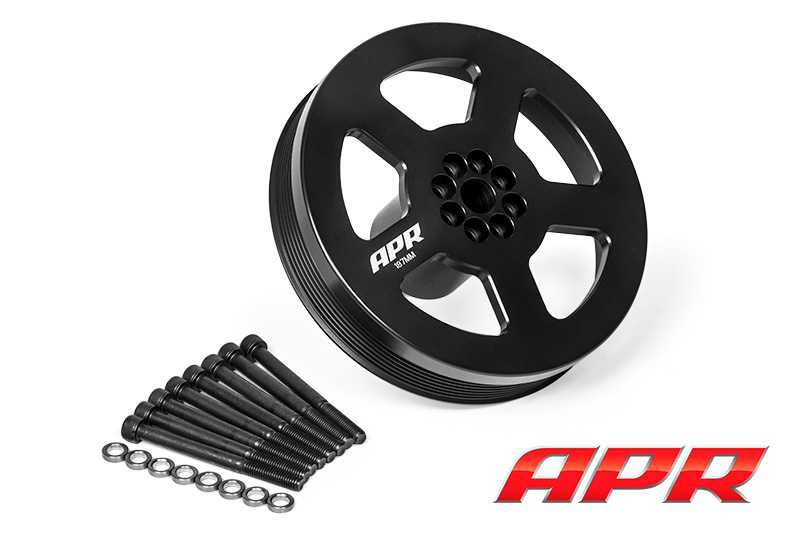

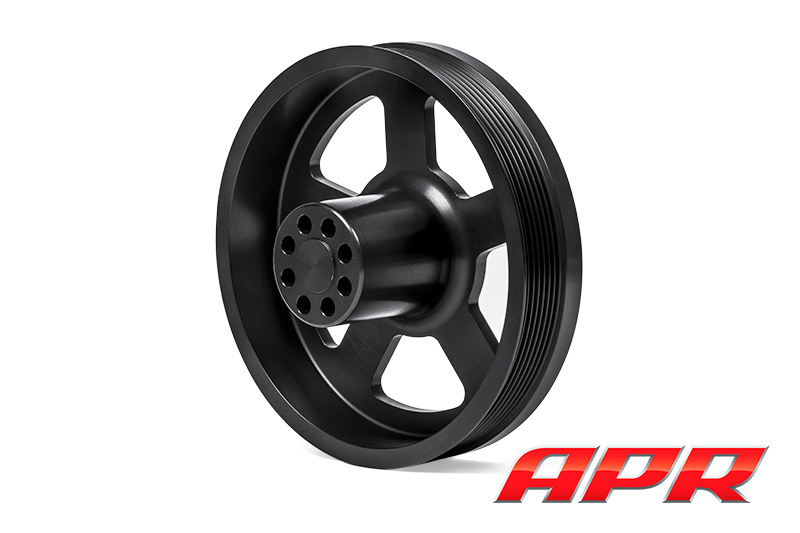

APR Supercharger Crank Pulley Upgrade

Crank Pulley Crank Pulley

APR’s Supercharger Crank Pulley Upgrade increases the diameter of the factory pulley from ~162mm to ~187mm, which in turn spins the supercharger ~15.4% faster. This results in a larger bump in horsepower and torque across the entire RPM range, as the supercharger is spinning at an even higher rate of speed. The pulley retains the factory harmonically balanced crank pulley and bolts on top of the existing unit. It is CNC machined from light weight billet aluminum with weight saving pockets throughout. It has an anodized black finish and includes new crank pulley bolts.

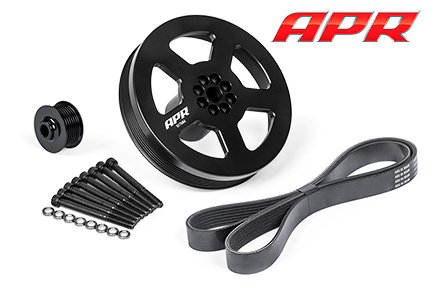

APR Supercharger Dual Pulley Upgrades

Supercharger Pulley Crank Pulley

Upgrading both the supercharger drive and crank pulleys results in the factory supercharger spinning ~26.4% faster than stock. This speed was chosen after extensive engine and chassis dyno testing with various pulley sizes and supercharger speeds. The result is an even higher horsepower and torque gain across the entire RPM range. However, at the airflow levels achieved with a dual pulley setup, maximum power is severely restricted by the factory throttle body unit. The APR Ultracharger Throttle Body Upgrade is necessary to take full advantage of the dual pulley configuration, and is available in platform specific variations for the B8/B8.5 A4/A4/S4/S5, Q5/SQ5 and C7 A6/A7.

APR Stage II ECU Upgrade

engine

APR’s Stage II ECU Upgrade is designed for use with each pulley upgrade and only needs to be purchased once. The upgrade builds upon the APR Stage I ECU Upgrade, reconfiguring the engine management system to work in conjunction with the higher boost pressure and airflow levels achieved by spinning the supercharger faster. The Stage I ECU Upgrade is required to purchase the Stage II ECU Upgrade.

Supercharger Speed
Dyno Testing
Select A Graph Select Graph Type
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
APR Stage II Calibration Report

Stage

Fuel
Max Power
HP
Max Torque
FTLBS
Max Power
Gain over Stock
Max Torque
Gain over Stock
- APR recommends and tuned with Sunoco GT 260 for 100 AKI mode and Sunoco GT 260 Plus for 104 AKI mode. Never use lower octane than specified by the mode.
- Max increases are based on APR's actual measured stock values and not those reported by Audi. | RON = ROW Fuel Grades | AKI = North American (RON+MON)/2 Fuel Grades.
- Reported wheel figures measured using APR's in house dynos using SAE J1349 correction and an average of multiple runs for all figures. Crank figures are estimated based on the measured wheel figures and APR's engine dyno results. Results will vary depending upon environmental conditions, vehicle, transmission, vehicle health, operating conditions, temperatures, fuel grade, dyno type, dyno setup, other variables and other modifications. For the best results, APR recommends removing the intake snow screen.
Audi S4/S5 (B8) (333HP)
Stage 2 Single Pulley 95 RON 437 HP 386 TQ +94 HP +68 TQ
Stage 2 Single Pulley 98 RON 455 HP 395 TQ +112 HP +82 TQ
Stage 2 Single Pulley 104 RON 473 HP 404 TQ +130 HP +95 TQ
Stage 2 Single Pulley 108 RON 480 HP 409 TQ +138 HP +100 TQ
Stage 2 Dual Pulley 95 RON 445 HP 412 TQ +100 HP +80 TQ
Stage 2 Dual Pulley 98 RON 465 HP 428 TQ +120 HP +97 TQ
Stage 2 Dual Pulley 104 RON 513 HP 459 TQ +168 HP +126 TQ
Stage 2 Dual Pulley 108 RON 527 HP 469 TQ +182 HP +136 TQ
Audi S4/S5 (B8.5) (333HP)
Stage 2 Single Pulley 95 RON 448 HP 381 TQ +138 HP +101 TQ
Stage 2 Single Pulley 98 RON 458 HP 387 TQ +148 HP +108 TQ
Stage 2 Single Pulley 104 RON 470 HP 398 TQ +160 HP +117 TQ
Stage 2 Single Pulley 108 RON 481 HP 406 TQ +171 HP +125 TQ
Stage 2 Dual Pulley 95 RON 445 HP 415 TQ +134 HP +98 TQ
Stage 2 Dual Pulley 98 RON 468 HP 432 TQ +157 HP +115 TQ
Stage 2 Dual Pulley 104 RON 513 HP 461 TQ +202 HP +147 TQ
Stage 2 Dual Pulley 108 RON 527 HP 471 TQ +215 HP +157 TQ
Audi A4/A5/Q5 (272HP)
Stage 2 Single Pulley 95 RON 430 HP 373 TQ +162 HP +123 TQ
Stage 2 Single Pulley 98 RON 452 HP 387 TQ +184 HP +140 TQ
Stage 2 Single Pulley 104 RON 463 HP 398 TQ +195 HP +149 TQ
Stage 2 Single Pulley 108 RON 474 HP 406 TQ +206 HP +157 TQ
Audi SQ5 (354HP)
Stage 2 Single Pulley 98 RON 455 HP 400 TQ +105 HP +80 TQ
Audi A6/A7 (C7) (310HP)
Stage 2 Single Pulley 95 RON 430 HP 373 TQ +162 HP +123 TQ
Stage 2 Single Pulley 98 RON 452 HP 387 TQ +184 HP +140 TQ
Stage 2 Single Pulley 104 RON 463 HP 398 TQ +195 HP +149 TQ
Stage 2 Single Pulley 108 RON 474 HP 406 TQ +206 HP +157 TQ
Audi A6 (C6) (290HP)
Stage 2 Single Pulley 95 RON 375 HP 373 TQ +100 HP +79 TQ
Stage 2 Single Pulley 98 RON 388 HP 379 TQ +114 HP +91 TQ
Stage 2 Single Pulley 104 RON 408 HP 389 TQ +135 HP +107 TQ

This upgrade is only applicable to superchargers with a pressed on pulley as shown here.

Application Guide
Model Engine Transmission Supercharger Pulley
ECU Upgrade
Crank Pulley
ECU Upgrade
Dual Pulley
ECU Upgrade
Audi A4 - (B8.5 Typ 8K) 3.0 TFSI Gen 1 All Available Available Available
Audi A4 - (B8.5 Typ 8K) 3.0 TFSI Gen 2 All Available Available Available
Audi A5 - (B8.5 Typ 8T) 3.0 TFSI Gen 1 All Available Available Available
Audi A5 - (B8.5 Typ 8T) 3.0 TFSI Gen 2 All Available Available Available
Audi A6 - (C6 Typ 4F) 3.0 TFSI Gen 1 All Available Not Available Not Available
Audi A6 - (C7 & C7.5 Typ 4G) 3.0 TFSI Gen 1 All Available Available Available
Audi A6 - (C7.5 Typ 4G) 3.0 TFSI Gen 2 All Available Available Available
Audi A7 - (C7 & C7.5 Typ 4G) 3.0 TFSI Gen 1 All Available Available Available
Audi A7 - (C7.5 Typ 4G) 3.0 TFSI Gen 2 All Available Available Available
Audi A8 - (D4 Typ 4H) 3.0 TFSI Gen 1 All Available Available Available
Audi A8 - (D4 Typ 4H) 3.0 TFSI Gen 2 All Available Available Available
Audi Q5 - (B8 Typ 8R) 3.0 TFSI Gen 1 All Available Available Available
Audi Q7 - (MK1 Typ 4L) 3.0 TFSI Gen 1 All Available Not Available Not Available
Audi Q7 - (MK2 Typ 4M) 3.0 TFSI Gen 2 All Available Available Available
Audi S4 - (B8 & B8.5 Typ 8K) 3.0 TFSI Gen 1 All Available Available Available
Audi S4 - (B8.5 Typ 8K) 3.0 TFSI Gen 2 All Available Available Available
Audi S5 - (B8 & B8.5 Typ 8T) 3.0 TFSI Gen 1 All Available Available Available
Audi S5 - (B8.5 Typ 8T) 3.0 TFSI Gen 2 All Available Available Available
Audi SQ5 - (B8 Typ 8R) 3.0 TFSI Gen 1 All Available Available Available
VW Touareg - (MK2 Typ 7P) 3.0 TFSI Gen 1 All Available Available Available

Warning: Use of undefined constant MS100135 - assumed 'MS100135' (this will throw an Error in a future version of PHP) in /usr/www/users/apreu/europeansites/goapr.co.uk/products/pulley_30tfsi.html on line 1110

Warning: Use of undefined constant MS100139 - assumed 'MS100139' (this will throw an Error in a future version of PHP) in /usr/www/users/apreu/europeansites/goapr.co.uk/products/pulley_30tfsi.html on line 1114

Warning: Use of undefined constant MS100133 - assumed 'MS100133' (this will throw an Error in a future version of PHP) in /usr/www/users/apreu/europeansites/goapr.co.uk/products/pulley_30tfsi.html on line 1118
Pulley Application Guide
System Part Number Price Exc. VAT Price Inc. VAT
APR Supercharger Drive Pulley - (57.75 mm) - Press on (3.0T Gen 1 Simos 8.x) MS100135 £186.58 £223.90
APR Supercharger Drive Pulley - (57.75 mm) - Bolt on on (3.0T Gen 2 Simos 16.x) MS100139 £186.58 £223.90
APR Supercharger Crank Pulley - (187 mm) MS100133 £279.88 £335.86

A new Supercharger Belt is required.


Warning: Use of undefined constant RS100001 - assumed 'RS100001' (this will throw an Error in a future version of PHP) in /usr/www/users/apreu/europeansites/goapr.co.uk/products/pulley_30tfsi.html on line 1139

Warning: Use of undefined constant RS100003 - assumed 'RS100003' (this will throw an Error in a future version of PHP) in /usr/www/users/apreu/europeansites/goapr.co.uk/products/pulley_30tfsi.html on line 1143

Warning: Use of undefined constant RS100002 - assumed 'RS100002' (this will throw an Error in a future version of PHP) in /usr/www/users/apreu/europeansites/goapr.co.uk/products/pulley_30tfsi.html on line 1147
Supercharger Belt Application Guide
System Part Number Price Exc. VAT Price Inc. VAT
Supercharger Belt - For use with an APR Drive Pulley & an OEM Crank Pulley RS100001 £27.95 £33.54
Supercharger Belt - For use with an OEM Drive Pulley & an APR Crank Pulley RS100003 £27.95 £33.54
Supercharger Belt - For use with an APR Drive Pulley & an APR Crank Pulley RS100002 £27.95 £33.54

APR Stage II software is required to run any upgraded Pulley configuration and is sold separately

Software Application Guide
Stage Price Exc. VAT Price Inc. VAT
IMPORTANT PRICING AND AVAILABILITY DETAILS:
- Availability Compatibility: Stages, programs, and features may not be available for all ECUs.
- ECU Revision Notice: Multiple ECU revisions exist for each platform. APR software may be temporarily unavailable when factory updates are applied. An APR dealer can check availability in person, or over the phone if the ECU boxcode/revision is known.
Upgrade from APR Stage I to APR Stage II £290.00 £348.00

This product is designed for use with APR's S Tronic TCU Upgrade, NGK BKR9EIX plugs gapped @ .024” +/- .002” torqued to 30Nm and a new supercharger belt. The APR Coolant Performance System is highly recommended and required with the dual pulley setup. IAT’s must be below 75c to achieve the advertised power figures. A high flow intake system is highly recommended and is required to meet the advertised power figures on the A4/A5/S4/S5/Q5/SQ5. For the best results, APR recommends removing the intake snow screen.

Supercharger Drive Pulley Removal Tool

RPM

The factory supercharger drive pulley is pressed on to the supercharger's input shaft. It's not possible to remove the factory pulley without damage, or damaging the supercharger itself unless special care and attention is taken.

The APR Supercharger Drive Pulley Installation Kit is designed to encapsulate the entire pulley and pull evenly across its entire surface. The unit is compact enough to not require complete removal of the front end of your vehicle, reducing labor time. Furthermore a provision was made to incorporate a 1/2 inch drive breaker bar which allows the entire assembly to be easily counter-held and ultimately makes the process a one man job.

A complete install manual covers the install process from start to finish, making installation easily completed at any APR dealer or in your own garage.


Warning: Use of undefined constant MS100025 - assumed 'MS100025' (this will throw an Error in a future version of PHP) in /usr/www/users/apreu/europeansites/goapr.co.uk/products/pulley_30tfsi.html on line 1198
Installation Kit Application Guide
System Part Number Price Exc. VAT Price Inc. VAT
APR Supercharger Drive Pulley Removal Tool MS100025 £279.88 £335.86
