APR Low Pressure Fuel Pump Upgrade – EA888 Gen 3

APR Presents the 2.0T EA888 Gen 3 Fueling System!

System

The APR Fueling System is a comprehensive upgrade required to safely support Stage III+ power levels. The upgrade includes a larger in-tank low pressure fuel pump (LPFP). All necessary hardware is included for a seamless integration and the system is fully controlled by the factory engine control unit (ECU) thanks to APR’s ECU Upgrade.

Quick Facts

  • More Fuel and More Power
    Provides the required fueling to support APR Stage III+ power levels.
  • 305 LPH High Flow In-Tank Fuel Pump
    Upgrades the LPFP to the largest readily available pump compatible with the factory fuel basket, and PWM controller without additional controllers.
  • Mounting Hardware, Directions and Support
    Includes step-by-step instructions and support for a seamless install.

Fueling System Overview

The 2.0T EA888 Gen 3 engine uses a returnless, pulse width modulated (PWM) controlled, in-tank low pressure fuel pump that feeds a cam-driven high pressure fuel pump (HPFP), and gasoline direct injection (GDI) injectors. Some models also include multi-port injection (MPI) injectors, which are only used for emissions reasons under light driving. The factory fueling system maxes out at below APR Stage III+ power levels before headroom for safety and longevity decreases dramatically.

To support higher power levels, the APR Fueling system upgrades the LPFP to a larger, 305 LPH, mounted inside the factory fuel basket with the included APR mounting hardware. At its inception, the pump is the largest readily available pump of its kind, both physically compatible with the factory fuel basket, and fully compatible with the factory PWM fuel pump controller without additional controllers.

Application Guide
Years Make Model Engine / ECU Drivetrain Transmission
2015-2017 Audi A3 - (Typ 8V / MK3) 2.0 TFSI (EA888 Gen 3) CHH - Simos 18.x Quattro 6 Speed S Tronic
2014-2017 Audi S3 - (Typ 8V / MK3) 2.0 TFSI (EA888 Gen 3) CJX - Simos 18.x Quattro 6 Speed S Tronic
2015-2017 Audi TT - (Typ 8S / MK3) 2.0 TFSI (EA888 Gen 3) CHH - Simos 18.x Quattro 6 Speed S Tronic
2015-2017 Audi TT S - (Typ 8S / MK3) 2.0 TFSI (EA888 Gen 3) CJX - Simos 18.x Quattro 6 Speed S Tronic
2015-2017 Seat Leon Cupra - (Typ 5F - MK3) 2.0 TSI (EA888 Gen 3) CJX - Simos 18.x FWD & AWD 6MT & 6 Speed DSG
2015-2017 Skoda Octavia - (Typ 5E - MK3) 2.0 TSI (EA888 Gen 3) CHH - Simos 18.x FWD 6MT & 6 Speed DSG
2014-2017 Volkswagen GTI - (Typ 5G - MK7) 2.0 TSI (EA888 Gen 3) CHH - Simos 18.x FWD 6MT & 6 Speed DSG
2015-2017 Volkswagen GTI Clubsport - (Typ 5G - MK7) 2.0 TSI (EA888 Gen 3) CJX - Simos 18.x FWD 6MT & 6 Speed DSG
2014-2017 Volkswagen Golf R - (Typ 5G - MK7) 2.0 TSI (EA888 Gen 3) CJX - Simos 18.x 4 Motion 6MT & 6 Speed DSG

Please Note: An APR Dealer MUST check software availability and compatibility before purchase. An APR Stage III+ Turbocharger System is required to use this product. Also, some FWD vehicles will need a 2014 fuel pump basket (5Q0919051BH).

Fueling Systems
System Platform Photo Part Number Price Exc. VAT Price Inc. VAT

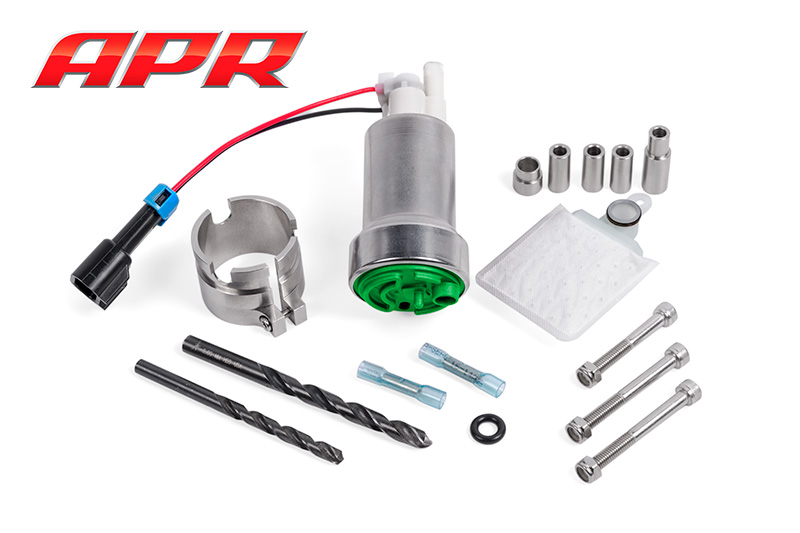

APR Fueling System Upgrade (With LPFP Only) For vehicles with factory port injection Photo MS100123 £307.60 £369.12
