APR 2.0T FSI / TFSI Transverse ECU Upgrade
APR is pleased to present the ultimate engine control unit (ECU) upgrade for the 2.0T EA113 engine!
APR’s ECU Upgrades are the best pound-per-horsepower modification one can make to the 2.0T engine. The upgrades dramatically increase horsepower and torque, making for an exceptionally quicker and more exciting vehicle. This is made possible through APR’s optimization of the factory engine management system to take full advantage of the engine’s capabilities, without needing any end user adjustment. The software loads to the factory ECU through the OBD-II port, resulting in a clean and headache-free install.
APR ECU Upgrade Stages
APR’s ECU Upgrades are available in multiple stages, supporting various octanes both with or without any hardware modifications. Specific software is available for use with high flow downpipe exhaust system, high pressure fuel pump and/or runner flap delete. All stages are fully compatible with an upgraded intake, intercooler, catback exhaust, or other minor bolt on modifications. Finally, Stage 1 is offered with special “Low Output” software, designed to limit peak torque for use with an unmodified factory manual clutch, or vehicles with very high miles.
APR Stage 1 ECU Upgrade
The APR Stage 1 ECU Upgrade requires no hardware modifications and is available with 240-257 HP and 277-306 FT-LBS of torque, depending on octane. Gains as high at 42-58 HP and 59-86 FT-LBS of torque are available throughout the power band! Lower output files are available, limiting output to 228-237 HP and 246-256 FT-LBS. For even more power, this software is compatible with an upgraded catback exhaust system, intake system, intercooler and other minor bolt on modifications. Furthermore, special runner flap delete software is available. This software must be used with the factory exhaust downpipe and factory high pressure fuel pump.

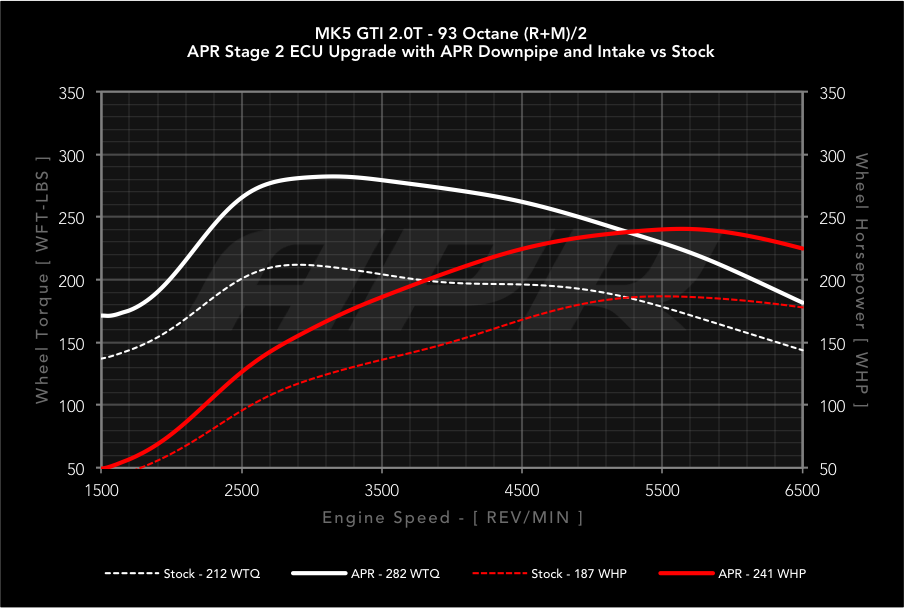

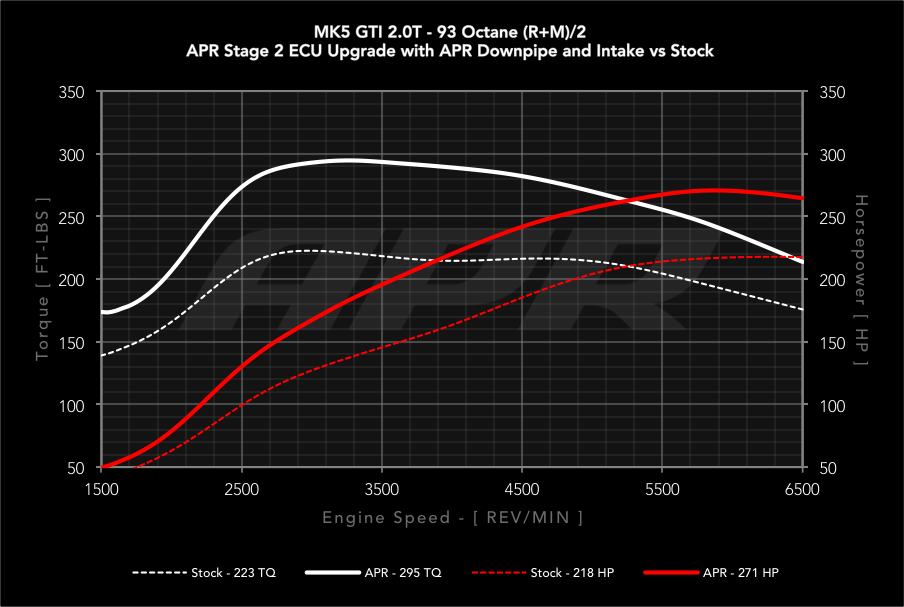

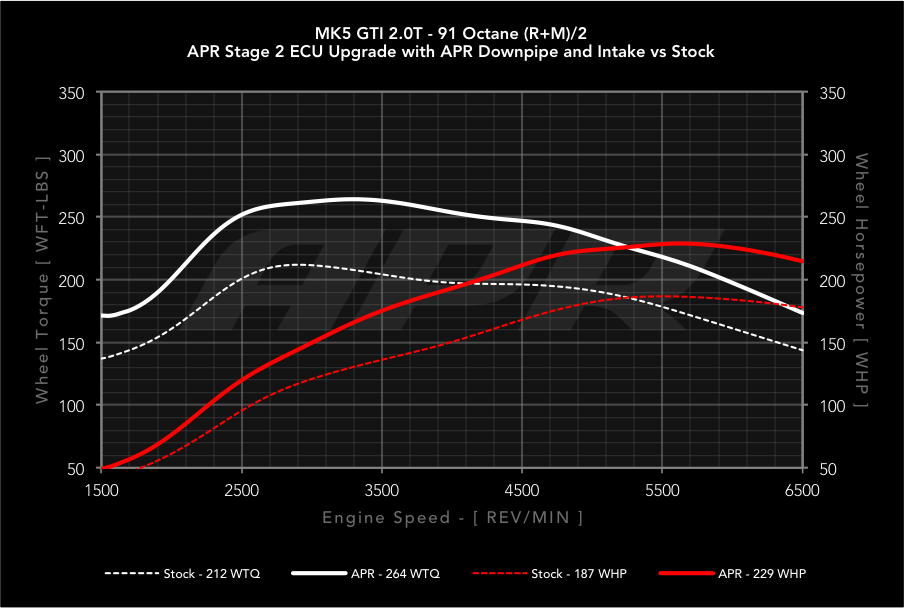

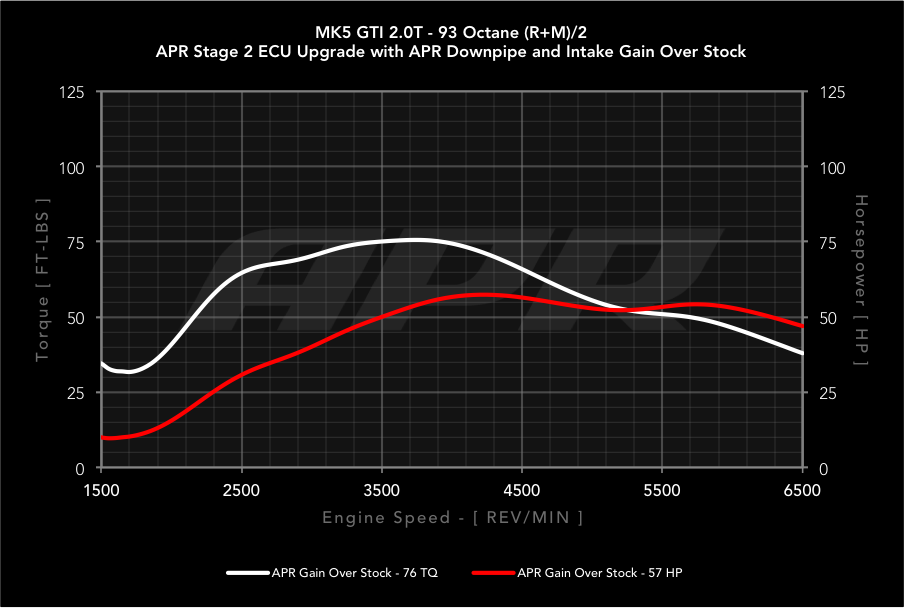

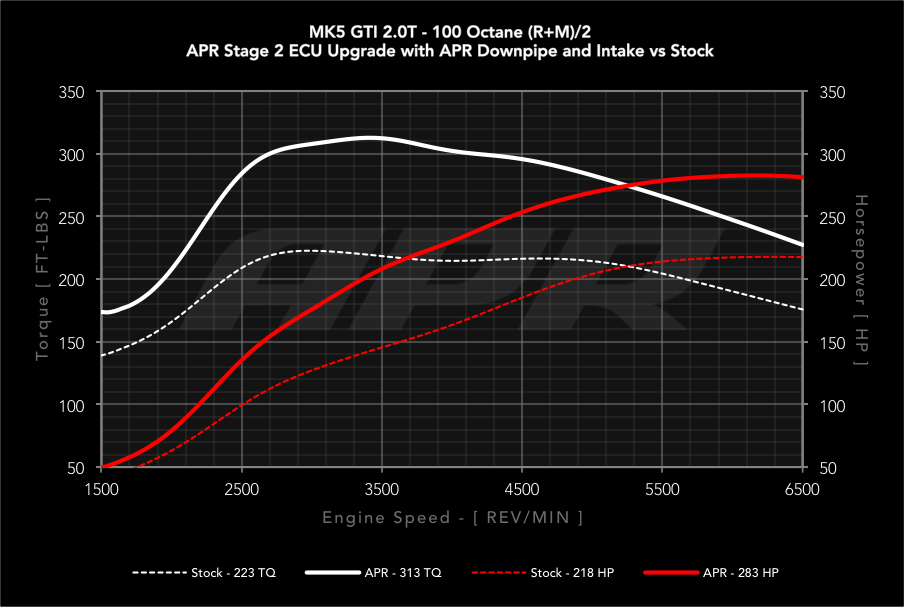

APR Stage 2 ECU Upgrade

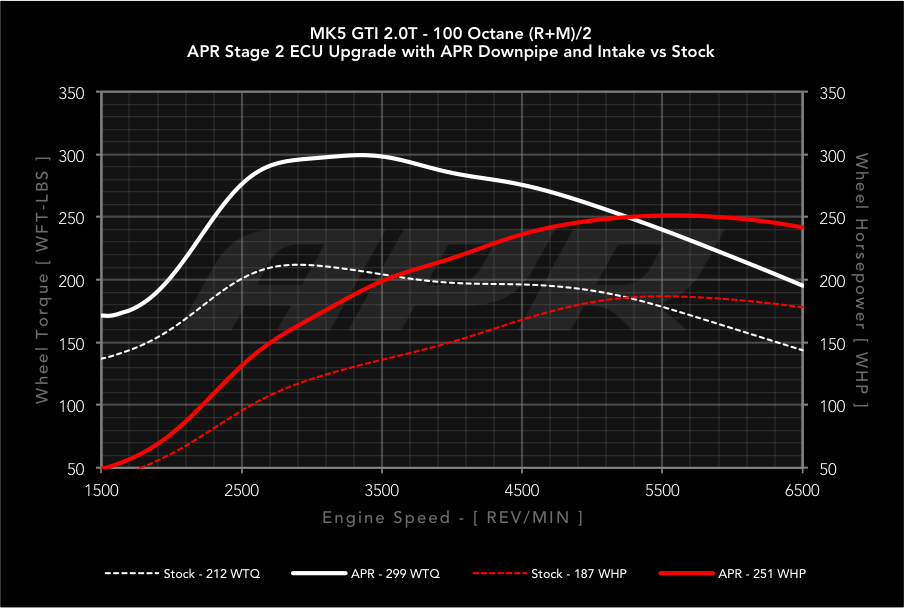

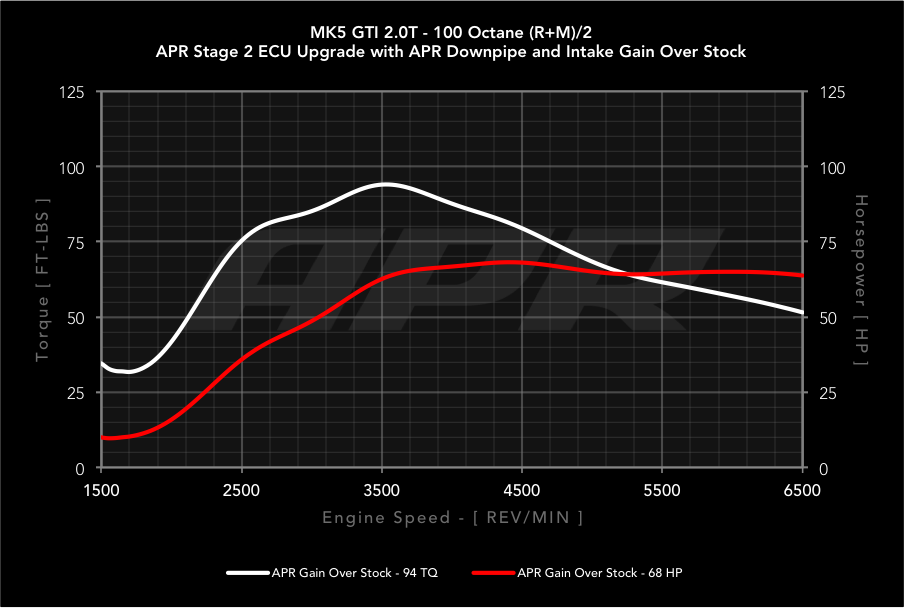

The APR Stage 2 ECU Upgrade requires a high flow downpipe exhaust system and is available with 259-283 HP and 277-313 FT-LBS torque, depending on octane. Gains as high as 44-68 HP and 59-94 FT-LBS of torque are available throughout the power band! For even more power, this software is compatible with an upgraded catback exhaust system, intake system, intercooler and other minor bolt on modifications. Furthermore, special runner flap delete software is available. This software must be used with a high flow downpipe exhaust system and factory high pressure fuel pump.

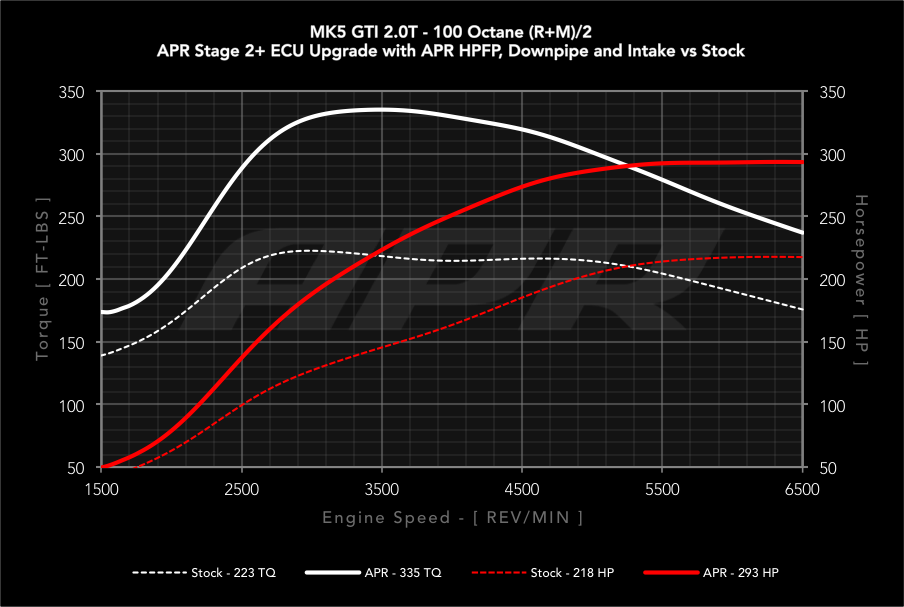

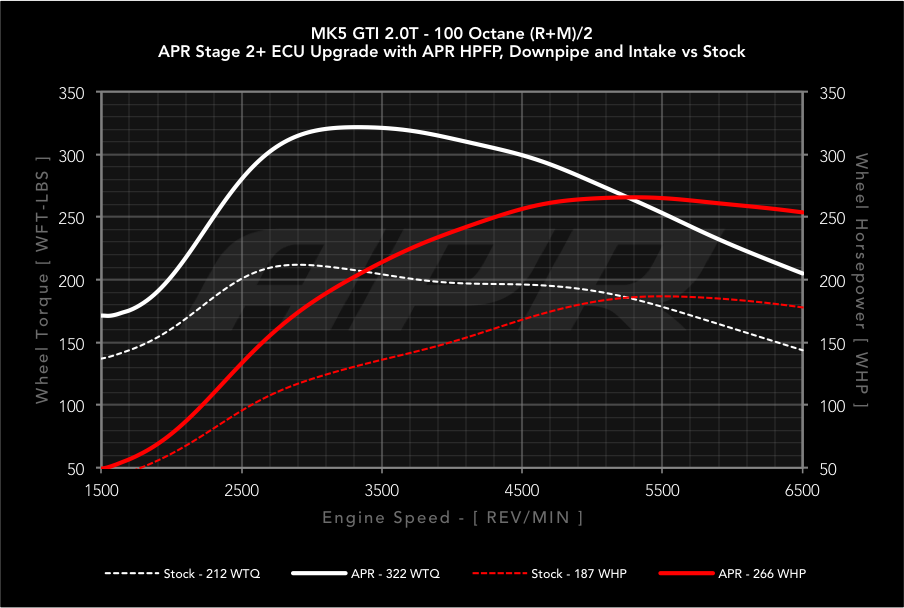

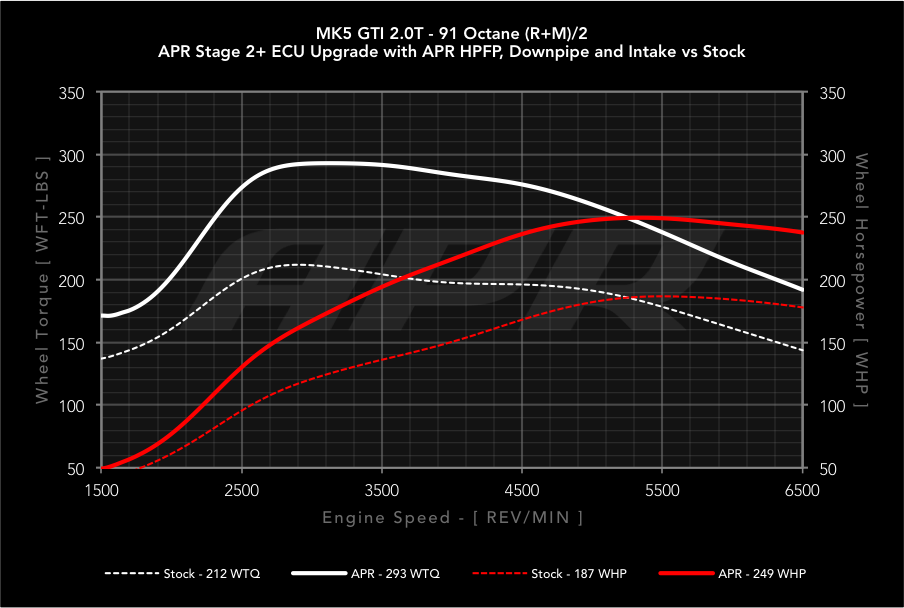

APR Stage 2+ ECU Upgrade
The APR Stage 2+ ECU Upgrade requires a high flow downpipe exhaust system and high pressure fuel pump and is available with 278-293 HP and 306-335 FT-LBS of torque, depending on octane. Gains as high as 68-89 HP and 88-118 FT-LBS of torque are available throughout the power band! For even more power, this software is compatible with an upgraded catback exhaust system, intake system, intercooler and other minor bolt on modifications. Furthermore, special runner flap delete software is available. This software must be used with a high pressure fuel pump and high flow downpipe exhaust system.
|Stage||Fuel grade||Max HP||Max TQ||Max HP Gain Over Stock||Max TQ Gain Over Stock|
|- APR recommends and tuned with Sunoco GT 260 for 100 AKI mode and Sunoco GT 260 Plus for 104 AKI mode. Never use lower octane than specified by the mode.|
|- Max increases are based on APR's actual measured stock values and not those reported by VAG.|

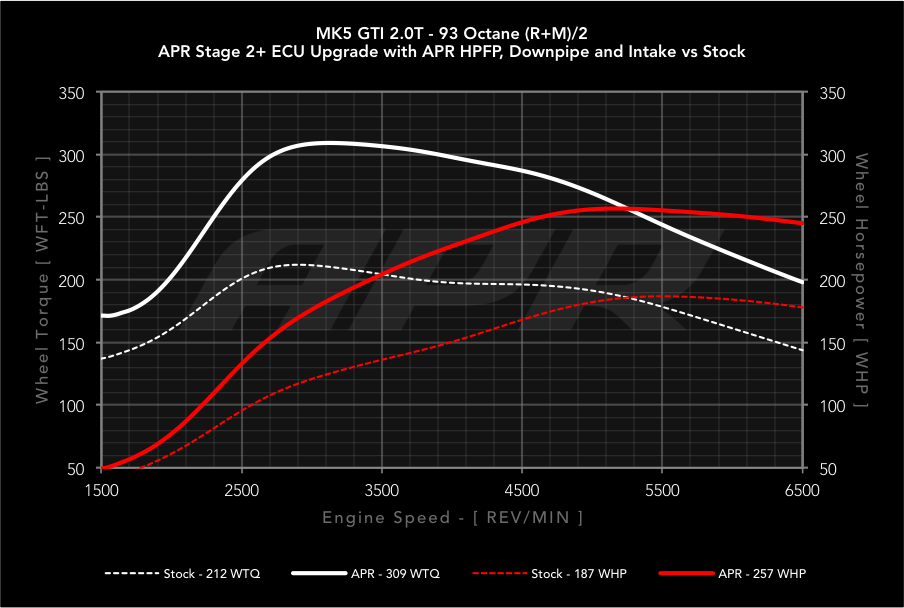

|- Reported wheel figures measured on APR's in house Dynapack Dynamometer and Mustang dyno with a US Spec 2007 MK2 A3 DSG, using SAEJ1349 correction and an average of multiple runs. Crank figures are estimated based on the measured wheel figures. Results may vary depending upon environmental conditions, vehicle, transmission, vehicle health, operating conditions, temperatures, fuel grade, dyno type, dyno setup, other variables and other modifications.|
|Stock As Reported by VAG||95 RON||197 HP||207 FT-LBS|
|Stock As Measured by APR||98 RON||218 HP||223 FT-LBS|
|APR Stage 1||95 RON||240 HP||277 FT-LBS||+42 HP||+59 FT-LBS|
|APR Stage 1||98 RON||251 HP||294 FT-LBS||+50 HP||+74 FT-LBS|
|APR Stage 1||104 RON||257 HP||306 FT-LBS||+58 HP||+86 FT-LBS|

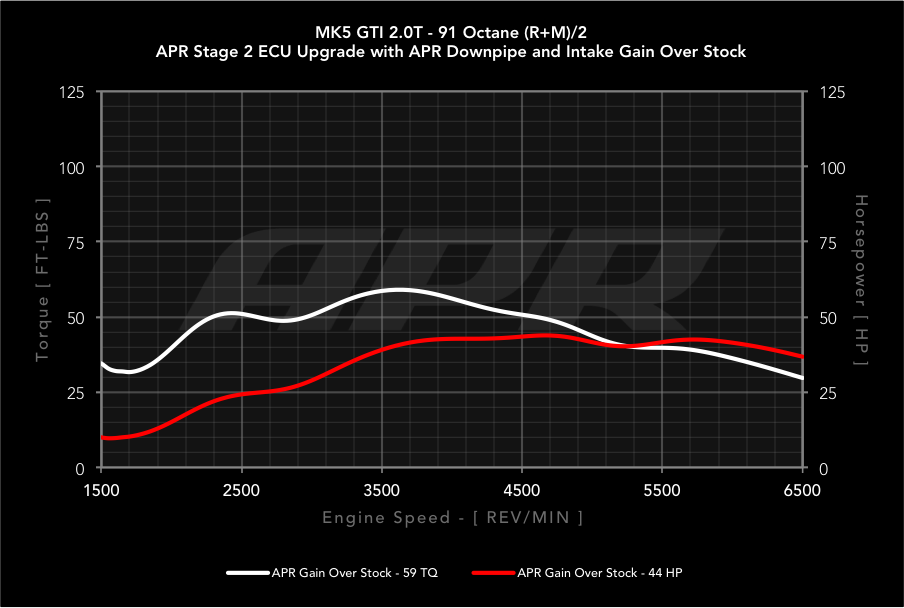

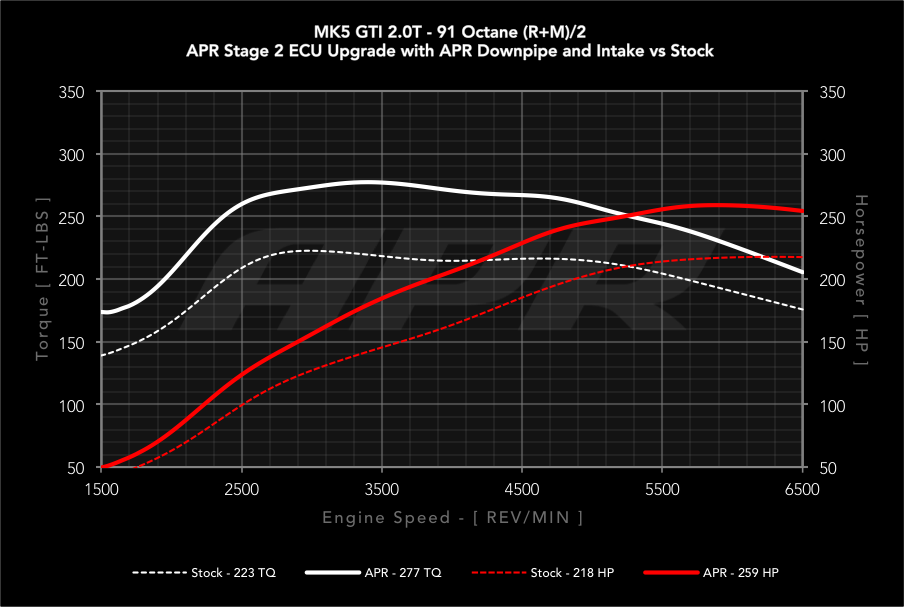

|APR Stage 2 w/ Downpipe and Intake||95 RON||259 HP||277 FT-LBS||+44 HP||+59 FT-LBS|
|APR Stage 2 w/ Downpipe and Intake||98 RON||271 HP||295 FT-LBS||+57 HP||+76 FT-LBS|
|APR Stage 2 w/ Downpipe and Intake||104 RON||283 HP||313 FT-LBS||+68 HP||+94 FT-LBS|

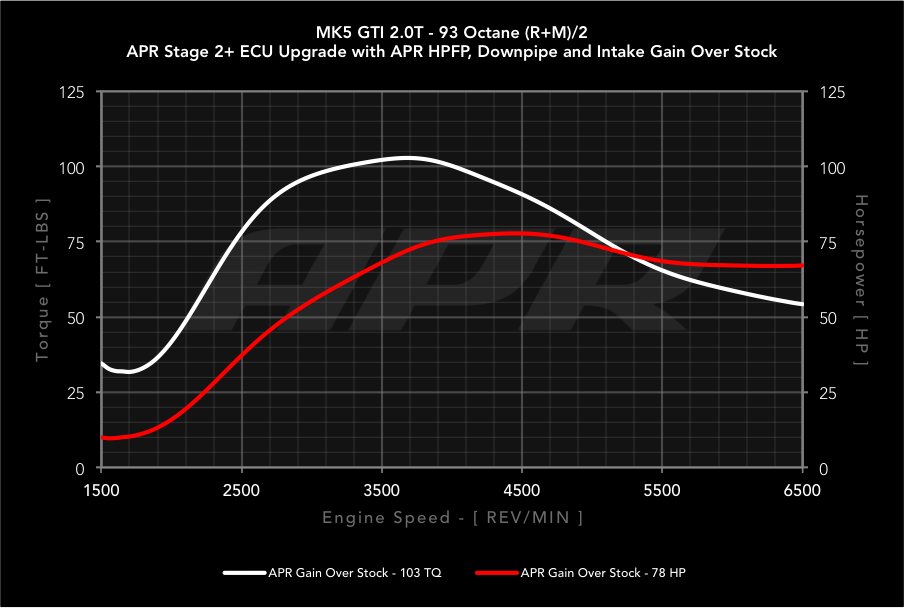

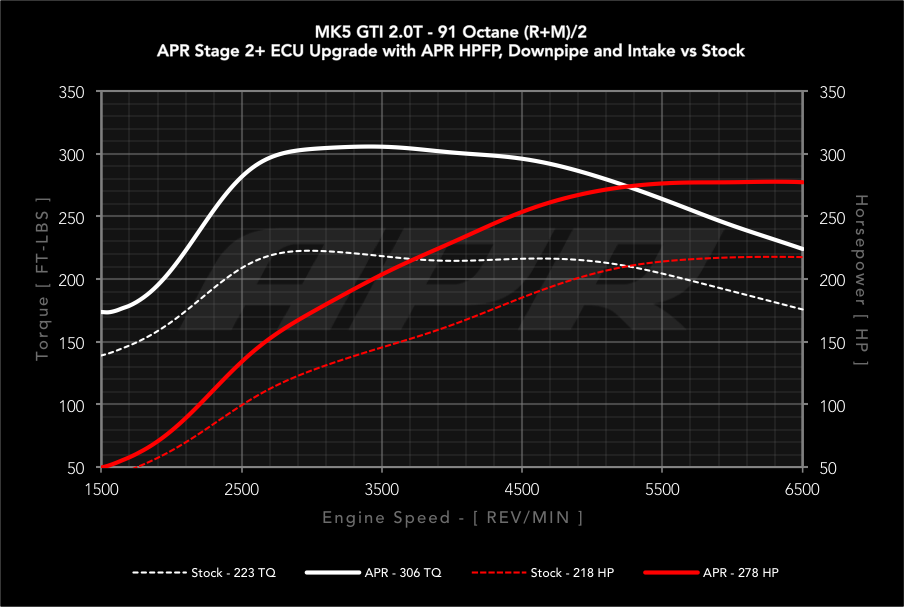

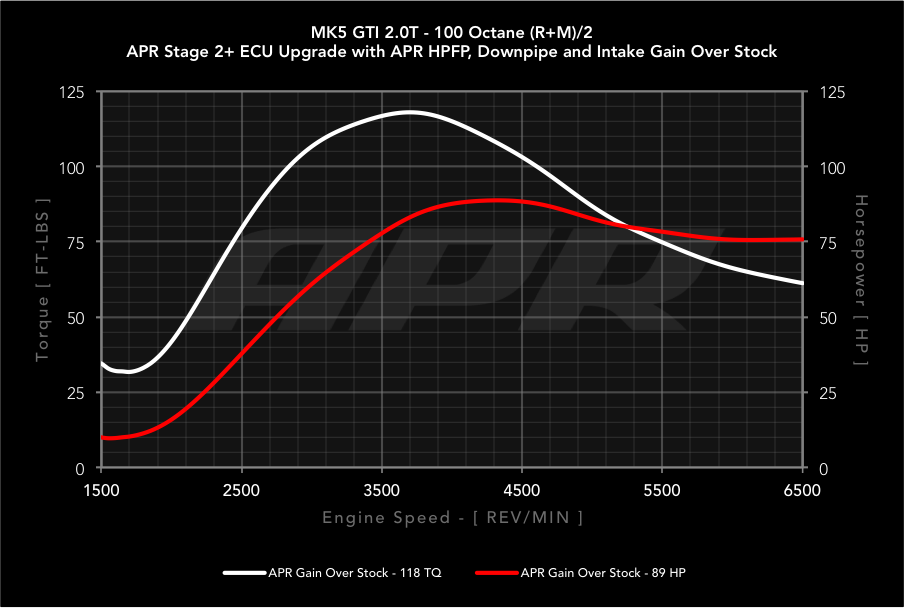

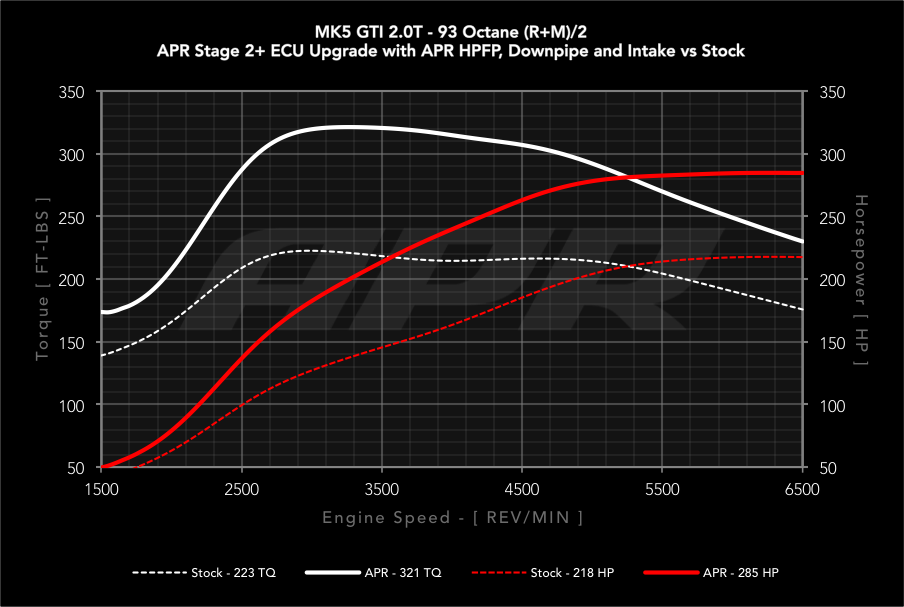

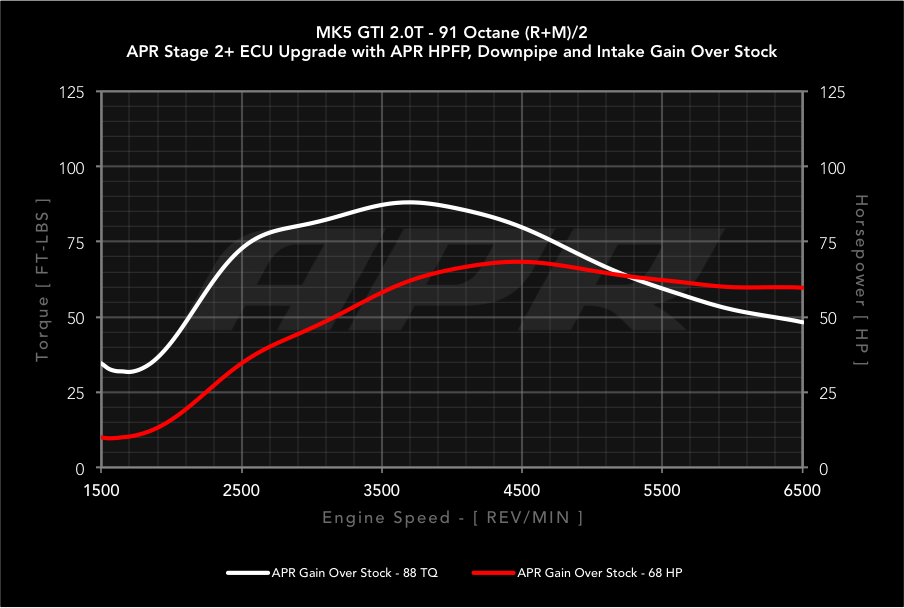

|APR Stage 2+ w/ HPFP, Downpipe and Intake||95 RON||278 HP||306 FT-LBS||+68 HP||+88 FT-LBS|
|APR Stage 2+ w/ HPFP, Downpipe and Intake||98 RON||285 HP||321 FT-LBS||+78 HP||+103 FT-LBS|
|APR Stage 2+ w/ HPFP, Downpipe and Intake||104 RON||293 HP||335 FT-LBS||+89 HP||+118 FT-LBS|
APR ECU Upgrade Included Features
- World Class Calibration Expertise
- Acceleration Enhancements
- Speed Limiter
- Left Foot Braking
- Motorsport Rev Limiter
- Fuel Economy
APR World Class Calibration Expertise
The 2.0T engine uses a Bosch MED 9 ECU for engine management. Basically, it’s a computer that tells the engine how to operate. Tuning software, like the APR ECU Upgrade, tells the engine how to make more power. It does this by running more boost pressure, optimizing the cam shaft positions, adjusting the air/fuel ratio, advancing ignition timing, and more.
A Better Engine Management System:
The 2.0T’s ECU is incredible. Without the driver knowing otherwise, the ECU makes intelligent adjustments to the engine’s operations to keep it running smoothly. Unlike ECUs found in many other makes and models, when properly tuned, the ECU eliminates the need for custom tuning to maximize output, even when weather conditions change dramatically.
How APR Differs from the Competition:
The ECU is powerful, but extremely difficult to master. Without mastery, the ECU must be simplified, removing what makes it so desirable. The result is an incomplete product that often requires end user adjustment to maximize output in limited scenarios. On the contrary, APR’s Engineers spent the better part of a decade mastering the ECU to unlock its full potential. With complete access to the thousands of maps, tables and variables within, as well as a high-level understanding of how it works, APR’s Engineers were able to take advantage of everything the ECU has to offer. Power is maximized in nearly all scenarios, eliminating the need for end user adjustments. High performance operational modes are enabled and calibrated to deliver smooth daily driving, with a snappy and responsive throttle during moments of spirited driving. Mastery of the boost control system makes for an impressively predictable driving experience as the turbo spools quickly, delivering instant power. Lastly advanced high-output protection routines are enabled, allowing the ECU to make constant adjustments to airflow and fuel to cool and protect the engine, all without the driver knowing otherwise.
Beyond horsepower and torque enhancements, APR’s Calibration Engineers were able to increase the acceleration rate of the vehicle through other calibrations changes. Ignition delay is reduced resulting in a more responsive pedal without altering overall throttle sensitivity. Furthermore, throttle lag commonly noticed at slow speeds and while reapplying throttle has been reduced.
APR’s ECU upgrade increases the vehicle's top speed limiter for blistering sprints around the track or across the Autobahn without the speed limiter shutting down the fun.
Left Foot Braking:
APR's Left Foot Braking feature allows more control over the vehicle’s throttle. The factory equipped vehicle's throttle input is disabled while pressing the accelerator and brake at the same time. Left Foot Braking, a common motorsport driving technique, allows the driver complete control over the vehicle’s throttle and braking system, which may give the vehicle the edge it needs at the track.
Motorsport Rev Limiter:
APR’s Motorsport Rev Limiter allows the engine to reach max RPM without the ECU slowing down acceleration nearly 150 RPM earlier. The result is more power to redline and a definable redline feeling as seen on Audi Quattro GMBH vehicles such as the RS4, RS5 and R8.
Increased Fuel Economy:
APR’s Calibration Engineers paid close attention to several parameters directly related to fuel economy, especially while cruising at highway speeds. Depending on driving style and fuel quality, better miles per gallon may be achieved.
APR ECU Upgrade Optional Features
APR EMCS Programs and Features
APR’s Enhanced Modular Chipping System, (EMCS), brings selectable programs and features to the factory ECU, without the need to purchase external hardware switching devices. EMCS has the ability to completely rewrite the entire operating map data within the ECU, giving each program mode a completely different set of calibration changes. On this platform, this is contrary to the industry norm of capping limits, using multipliers, only swapping portions of a base calibration, or relying on knock activity to lower output. APR’s EMCS features and programs modes are activated via the factory OEM cruise control buttons, and optionally through APR Mobile. The vehicle’s cruise control will function normally while driving.
To learn how to activate the programs and features, choose the vehicle's cruise control type from APR EMCS Owner's Manual.
Program switching allows the user to cycle through up to four different engine calibrations and operating modes all without the need for external hardware.
Stock Mode: By selecting stock mode, the ECU calibration is reduced to factory load levels, limiting performance.
APR Performance Modes:
APR's octane-specific calibrations are available for various premium and race fuels around the world. Each performance mode is a completely new calibration, altered specifically for the characteristics of the fuel quality selected.
Fault Code Erase:
Fault code erase allows the user to erase and reset engine related trouble codes and ECU adaptation data without using a specialty tool.
Security lockout prevents unauthorized individuals from using APR's EMCS functionality. When enabled, APR's EMCS features will appear completely invisible until a user specified 2 to 4-digit security code is entered.
When activated, Anti-Theft prevents normal operation of the engine even if the factory key is used. The vehicle will be completely immobilized until a user specified 2 to 4-digit security code is entered.
APR's Valet Mode protects your vehicle from becoming an expensive toy for unauthorized individuals. By enabling Valet Mode, the vehicle's performance is extremely limited.
APR Mobile is a simple yet powerful tool designed to enhance the APR tuning experience.
APR Mobile installs on smart phones, tablets and other devices and provides a wireless connection to the vehicle’s engine control unit or ECU. Once connected, the device can be used to access APR’s EMCS program switching features, read and clear fault codes and data log the ECU at high data rates not found on other commercially available tools. The app can also be used to access APR’s latest news articles, locate dealers in APR’s network and review previously saved data logging sessions.
To learn more about APR Mobile, please visit our product page.
The APR Difference
APR Motorsport was established in 2007 to prove APR’s products in some of the most demanding environments the vehicle and engine will ever see. Through extensive research and development, APR’s Engineering Teams are able to deliver ECU Upgrades backed by brutally track testing!
Shortly after APR Motorsport’s success in Grand-AM, APR’s tuning packages became available to professional motorsport teams around the globe. APR Motorsport’s calibrations and engine packages have seen countless podium finishes, including several 12 and 24-hour endurance races on both stock and highly modified engines.
APR Direct Port Programming
APR’s DirectPort Programming is now available! Any APR Dealer in the world, connected to the Internet, has direct access to APR’s latest ECU upgrades for loading directly over the vehicle's OBD-II port. This completely eliminates the need to remove and open the ECU for currently available files and can be uninstalled at any time!
APR ECU ExplorerAPR’s proprietary ECU Explorer gives APR’s Calibration Engineers unparalleled access to the vehicle’s entire engine management system. Typical commercially available data logging tools, used by most tuners, only allow logging up to 12 engine-operating variables at extremely low data rates. These tools are also limited to a small, specific list of variables. APR’s ECU Explorer is capable of logging every variable found within the ECU with far more variables logged at once, at very high data rates.
APR ECU ComposerAPR’s proprietary ECU Composer is used for altering the engine management system. With full access to every table, map and variable within the ECU, APR’s Calibration Engineers are not limited to a handful of maps as is common for most tuning companies.
APR ECU AssemblyAPR’s Electrical Engineers have the ability to alter the code structure of the ECU. Through code levels changes, APR's Engineers are able to add features to the ECU. Other changes allow higher torque limits than those achievable through only modifying calibration data or using piggyback devices as is the case for many tuners. This allows APR's engineers to often not require transmission software to meet or exceed advertised gains. On the highly modified end, this often allows APR to make turbo upgrades operate without the need for external manual controllers.
|Audi A3 (MKII)||All||2.0 TFSI||All|
|Audi TT (MKII)||All||2.0 TFSI||All|
|Seat Altea (5P)||All||2.0T FSI||All|
|Seat Leon (MKII)||All||2.0T FSI||All|
|Seat Toledo||All||2.0T FSI||All|
|Seat Octavia (MKII)||All||2.0T FSI||All|
|Volkswagen EOS||All||2.0T FSI||All|
|Volkswagen Golf / GTI (MKV)||All||2.0T FSI||All|
|Volkswagen Jetta / GLI / Bora / Vento (MKV)||All||2.0T FSI||All|
|Volkswagen Passat (B6)||All||2.0T FSI||All|
|Stage||Minimum Requirements||Price Exc. VAT||Price Inc. VAT|
|- Program switching programs and features may not be available for all vehicles.|
|- All stages may not be available for all vehicles.|
|- Please note vehicle manufacturers issue many ECU part numbers and revisions throughout their vehicle lineup. As such, some ECUs may be temporarily unavailable as new parts and/or revisions are released. If the vehicle's ECU part number and revision is known, availability can be checked at any APR Dealer.|
|- Stage II pricing only applies customers to who have purchased an APR ECU Upgrade after February 16th, 2015.|
|APR Stage I ECU Upgrade||None||£449.00 SALE!: £260.00||£538.80 SALE!: £312.00|
|- Upgrade to Stage II||High Flow Exhaust Downpipe for Stage II||£100.00 SALE!: £65.00||£120.00 SALE!: £78.00|
|- Straight to Stage II from stock||High Flow Exhaust Downpipe for Stage II||£645.00 SALE!: £324.75||£774.00 SALE!: £389.70|
|- Upgrade to Stage II with a brand new APR Downpipe||Brand New APR Downipipe for Stage II||Free!||Free!|
How to purchase
Please use the APR Dealer Locater Tool to locate an APR Dealer, confirm availability and schedule an appointment.
Please note vehicle manufacturers issue many ECU part numbers and revisions throughout their vehicle lineup. As such, some ECUs may be temporarily unavailable as new parts and/or revisions are released. If the vehicle’s ECU part number and revision is known, availability can be checked at any APR Dealer.
Security, Warranty and Money Back Guarantee
30 Day Money Back Guarantee:
All APR ECU Upgrades include a 30-day money back guarantee with no questions asked. If for any reason the owners is dissatisfied with the APR ECU Upgrade, they may return to the place of purchase for a full refund, provided they are within the 30 day period from the time of the initial purchase. Labor or shipping charges are not included in the guarantee and are at the discretion of the place of install.
Limited Lifetime Warranty:
All APR ECU Upgrades include a limited lifetime warranty against defects in the software, and to provide free updates and reflashes as they become available. Labor or shipping charges are not included in the warranty and are at the discretion of the place of install.
