APR Race DP and Midpipes for the 2.5 TFSI EVO

The APR Race DP and Midpipes are the ultimate exhaust upgrade for the Auti 2.5 TFSI EVO! This system is sold in multiple configurations and is completely compatible with every component in the factory exhaust system, allowing you to customize the exhaust to your desire. We upgrade various components, which allow for better turbocharger response and power delivery, while delivering an enhanced 5 cylinder symphony you’ll love! Expect only the best components and highest quality and manufacturing techniques, and to fully enjoy the full system, get the APR Stage 2 ECU Upgrade at no charge over APR Stage 1/1+ with the included free upgrade code!

Race DP

APR Race DP

The APR Race DP features a port-matched outlet connected to a smooth, 4” continuous-radius cast-bend, with an ultra-smooth cast-Y that splits the system into a dual 2.5” exhaust path. In contrary, the factory DP has a sharp transition exiting the turbo, which dumps directly into a massive and hot catalyst that keeps your engine bay toasty. From there the system splits into kinked piping, with less than ~2” of diameter on one side and ~2.3” on the other. The factory system wasn’t designed with ultimate performance in mind like our system.

Exhaust Exhaust Exhaust

The system is made from T304 stainless steel. The cast Y is electropolished, and all non-cast piping is mandrel bent with a brushed finish. As always, we only use argon-backpurged TIG welding techniques to assemble the systems.

Exhaust Exhaust Exhaust

The system features precision laser cut brackets with integrated PIM nuts for a reliable connection to the factory bracket. Our CNC machined v-band and OEM-style 3-bolt-flanges are precision cut and extremely flat ensuring an accurate seal. We include new gaskets and copper plated nuts as well. Both O2 sensors bungs are cast and welded on top of the system in such a way as to prevent from protruding into the exhaust flow path. Lastly, we use OEM-style flex sections that are fully sealed with a corrugated inner liner for improved airflow. This design also resists billowing, rubbing, rattling and fraying, as is common with other types of flex sections.

Exhaust Exhaust Exhaust Exhaust

The APR Race DP is compatible with the factory midpipes and our midpipes. This component, and APR Race Midpipes, is required for Stage 2, and includes a free authorization code to upgrade from APR Stage 1 or 1+ to Stage 2 at no additional charge.



APR Race Midpipes with Catalysts

The APR Race Midpipes with Catalysts are both 2.5” and are designed as a simple plug and play upgrade. We use T304 stainless steel piping that’s brushed, mandrel bent, and TIG welded to the included catalyst and CNC machined ultra-flat OEM-style 3-bolt-flanges. The system includes new gaskets, bolts and copper plated nuts.

Exhaust Exhaust Exhaust

The system includes two proprietary 300-cell GESI high-flow catalyst, which are ideal for forced induction applications. They feature a fully captured substrate brick, which is furnace brazed to the outer mantle and physically captured by the diffuser cones. This helps to prevent rattling, rotation and damage to the substrate, especially on higher horsepower applications.

The APR Race Midpipes with Catalysts are compatible with the factory DP and our Race DP. Race Midpipes (catted or non-catted) are required for Stage 2 along with our Race DP.



APR Race Midpipes without Catalysts

The APR Race Midpipes are both 2.5” and are designed as a simple plug and play upgrade. We use T304 stainless steel piping that’s brushed, mandrel bent, and TIG welded to the included CNC machined ultra-flat OEM-style 3-bolt-flanges. The system includes new gaskets, bolts and copper plated nuts.

Exhaust Exhaust Exhaust

The APR Race Midpipes are compatible with the factory DP and our Race DP. Race Midpipes (catted or non-catted) are required for Stage 2 along with our Race DP.

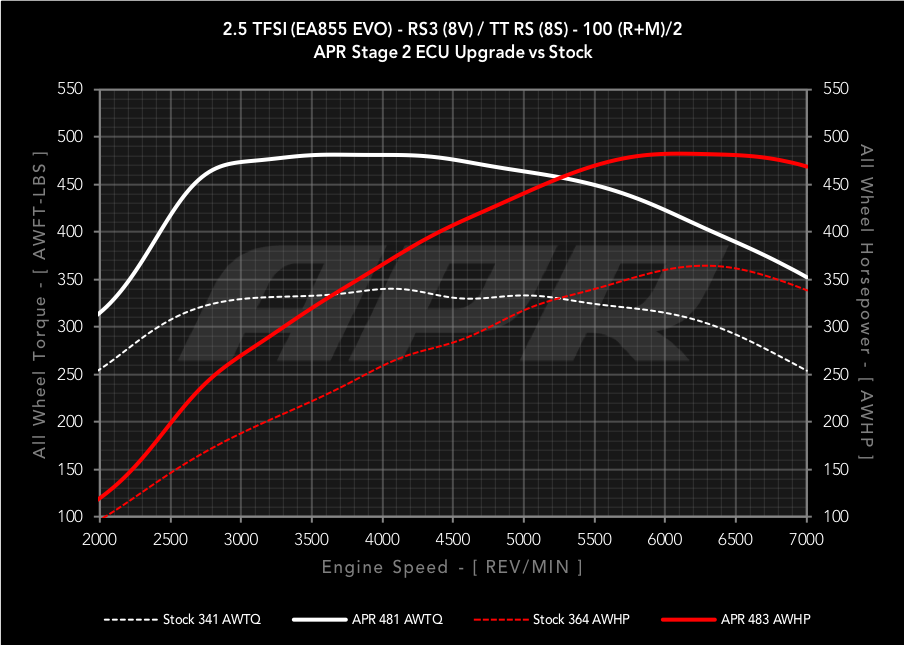

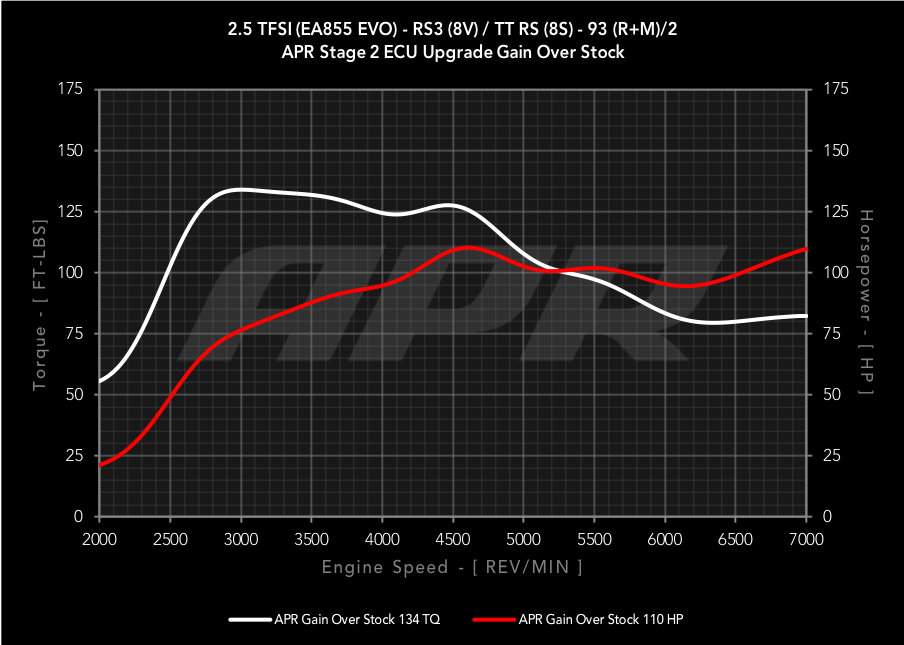

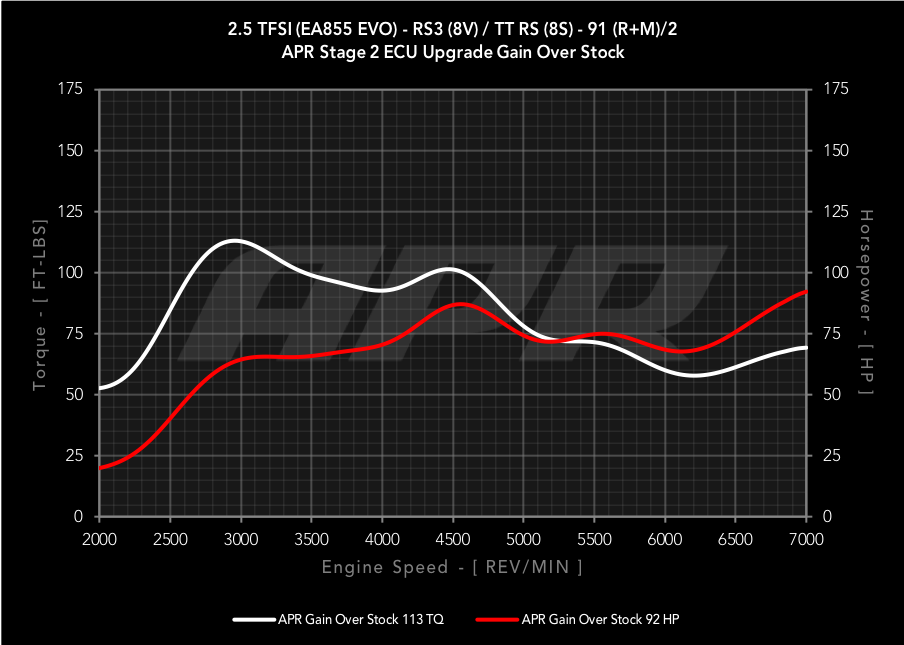

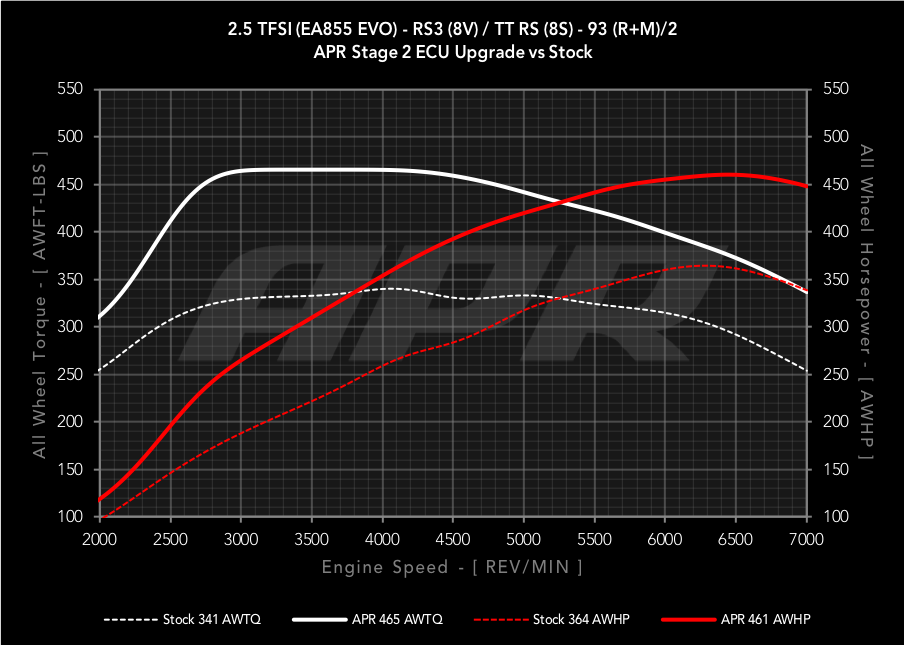

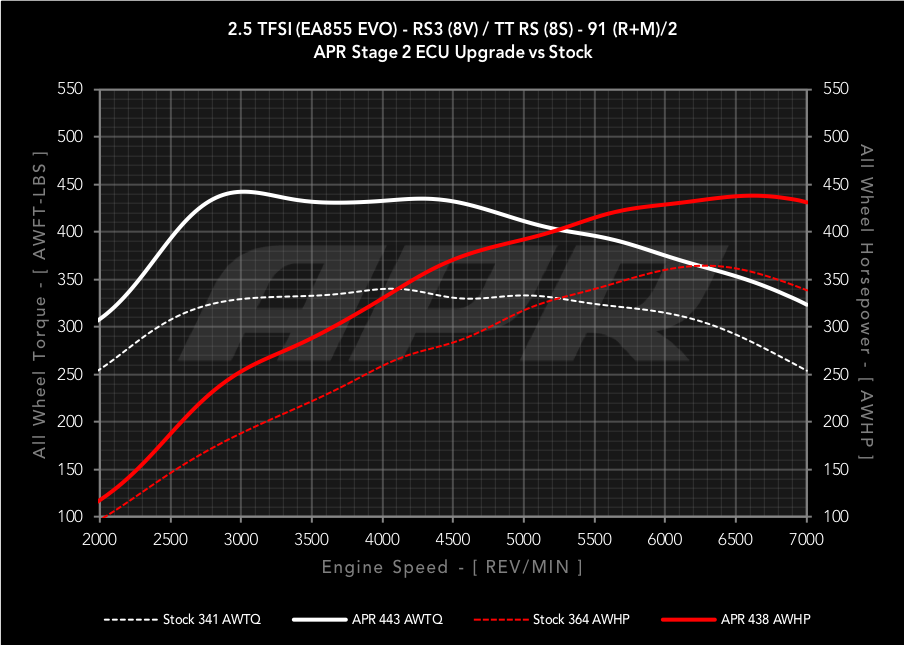

Dyno Testing
Select A Graph Select Graph Type
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
dyno
APR Stage II Calibration Report
Vehicle Fuel grade Max HP Max TQ Max HP Gain
Over Stock
Max TQ Gain
Over Stock
- Max increases are based on APR's actual measured stock values and not those reported by VAG.
- Reported wheel figures measured on APR's in house Dynamometer with a US Spec 2018 RS3, using SAEJ1349 correction and an average of multiple runs. Crank figures are estimated based on the measured wheel figures. Results may vary depending upon environmental conditions, vehicle, transmission, vehicle health, operating conditions, temperatures, fuel grade, dyno type, dyno setup, other variables and other modifications. On the dyno, this platform will see large swings in power based on intake air temperature, and the gear in which it's dynoed.
Stock As Reported by Audi95 RON 394 HP 354 FT-LBS
Stock As Measured by APR98 RON 420 HP 372 FT-LBS
APR Stage 2 with Inlet, IC, Race DP & Race Midpipe 95 RON 499 HP 468 FT-LBS +92 HP +113 FT-LBS
APR Stage 2 with Inlet, IC, Race DP & Race Midpipe 98 RON 519 HP 496 FT-LBS +110 HP +134 FT-LBS
APR Stage 2 with Inlet, IC, Race DP & Race Midpipe 102 RON 529 HP 490 FT-LBS +120 HP +125 FT-LBS
APR Stage 2 with Inlet, IC, Race DP & Race Midpipe 104 RON 540 HP 512 FT-LBS +131 HP +147 FT-LBS
APR Stage 2 with Inlet, IC, Race DP & Race Midpipe 108 RON 548 HP 520 FT-LBS +140 HP +156 FT-LBS
Application Guide
Make Model Generation Engine Transmission Drivetrain Drive Side
Audi RS3 8V / MK3 2.5 TFSI EA855 EVO S Tronic Quattro LHD and RHD
Audi TT RS 8S / MK3 2.5 TFSI EA855 EVO S Tronic Quattro LHD and RHD
Exhaust Systems
System Photo Part Number Price Exc. VAT Price Inc. VAT
APR Race DP Photo DPK0028 £687.10 £824.52
APR Race Midpipes with Catalysts Photo MPK0008 £644.16 £772.99
APR Race Midpipes without Catalysts Photo MPK0007 £300.60 £360.72
Stage II ECU Upgrade Pricing
Engine Retail Price Price with Purchase of the APR Race DP
IMPORTANT PRICING AND AVAILABILITY DETAILS:
- Availability and ECU Compatibility: Stages, programs, and features may not be available for all ECUs.
- ECU Revision Notice: Multiple ECU revisions exist for each platform. APR software may be temporarily unavailable when factory updates are applied. An APR dealer can check availability in person, or over the phone if the ECU boxcode/revision is known.
2.5 TFSI EA855 EVO Contact an Importer Free!
